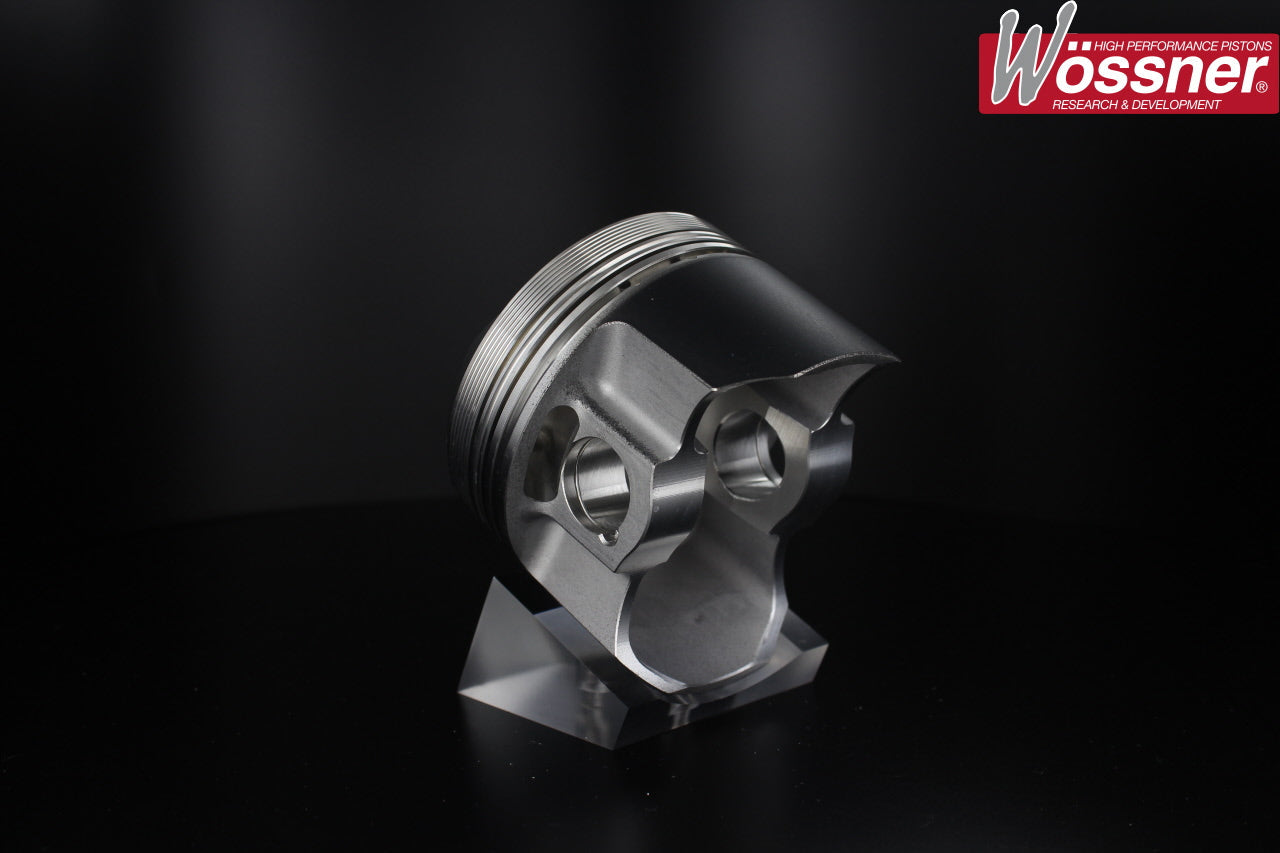

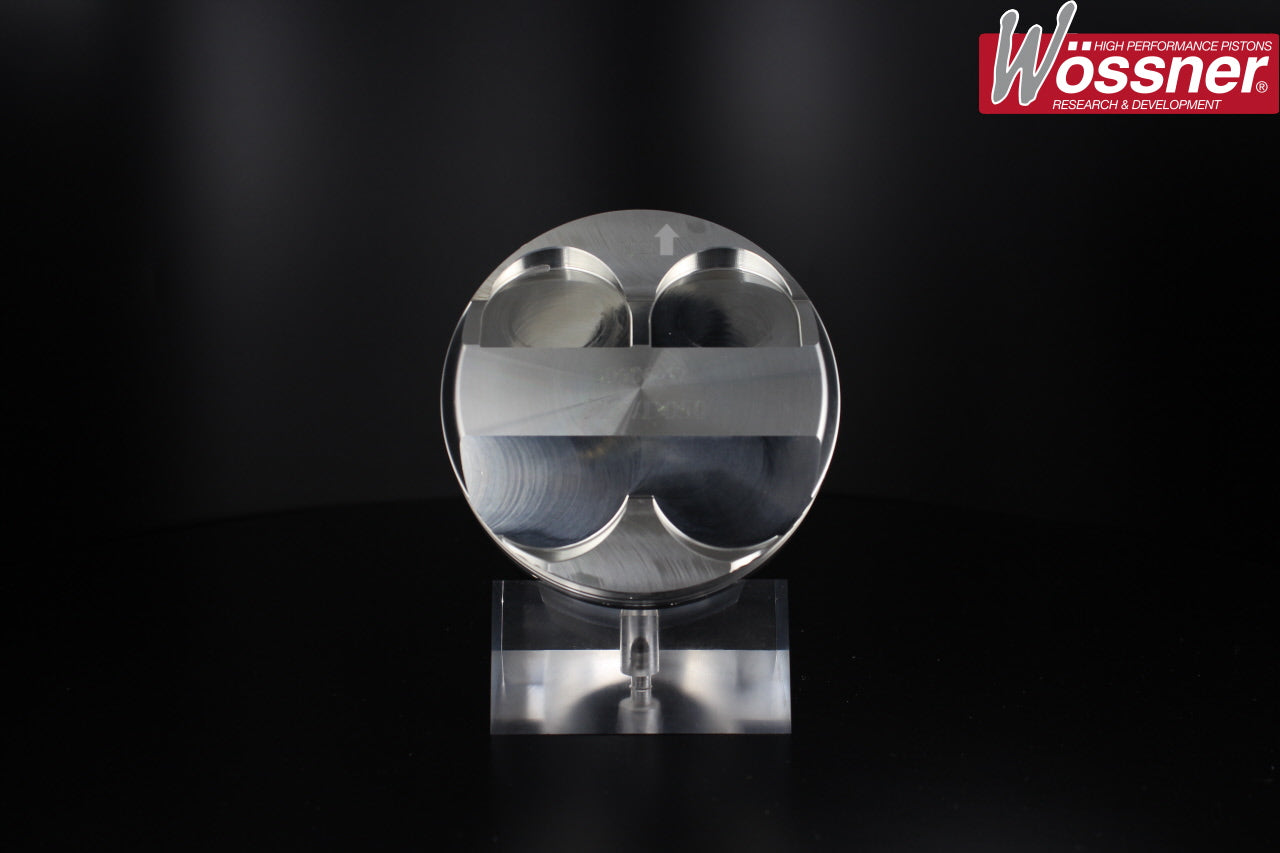

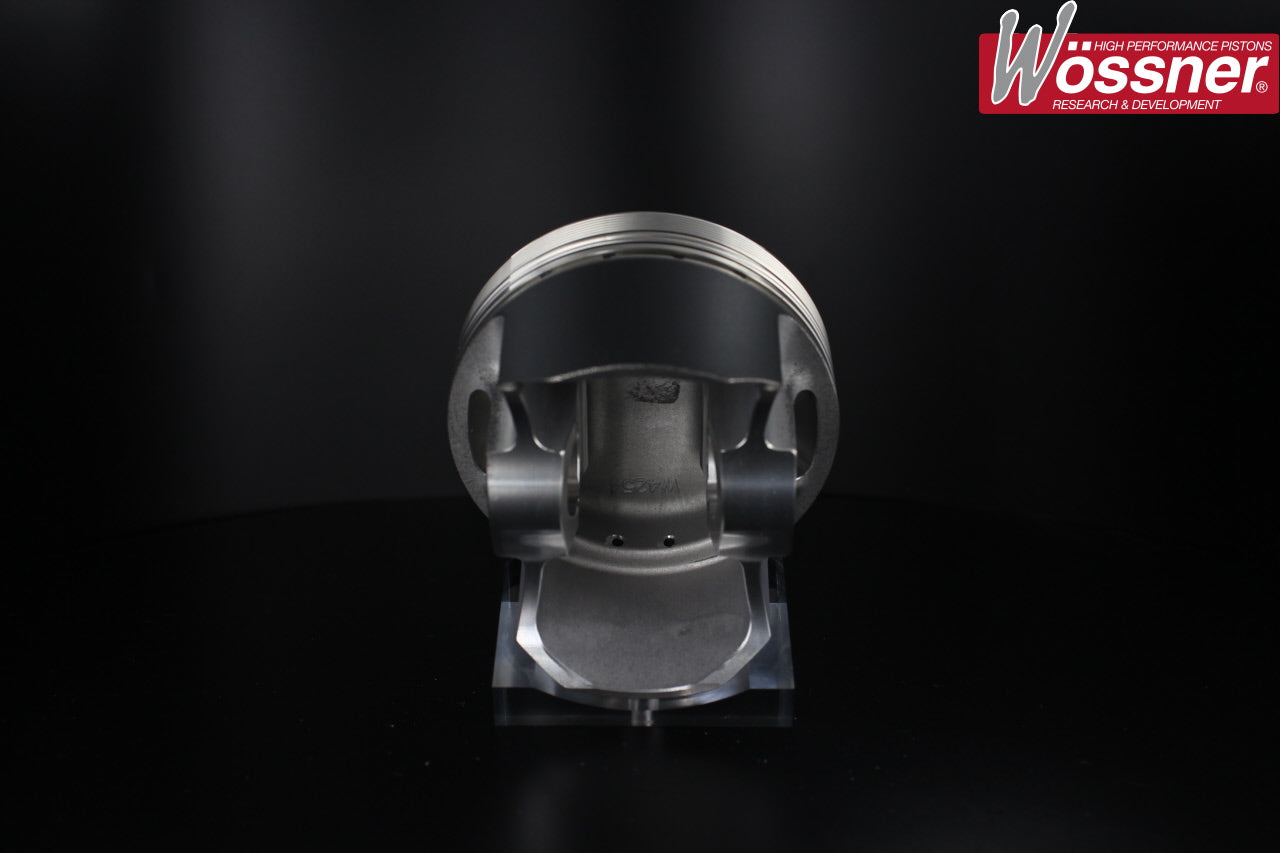

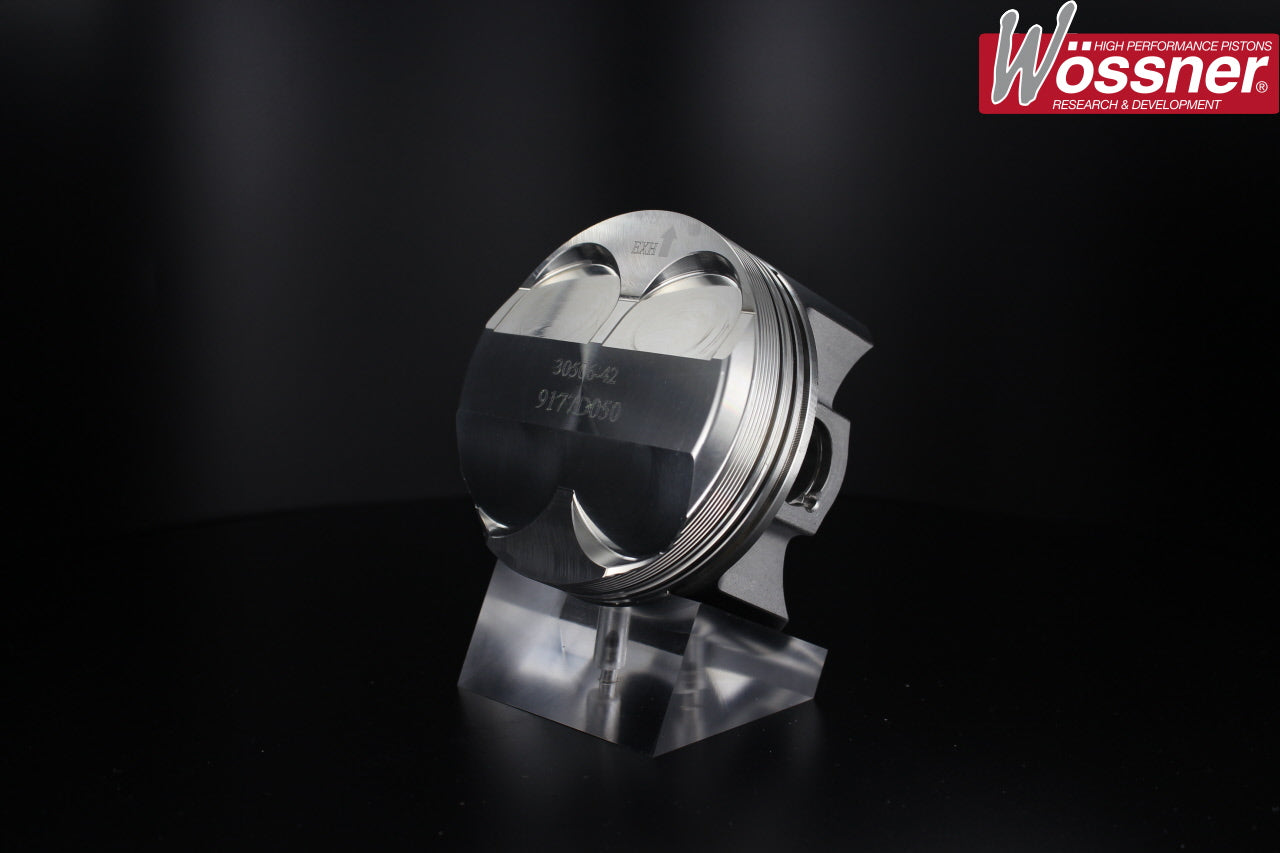

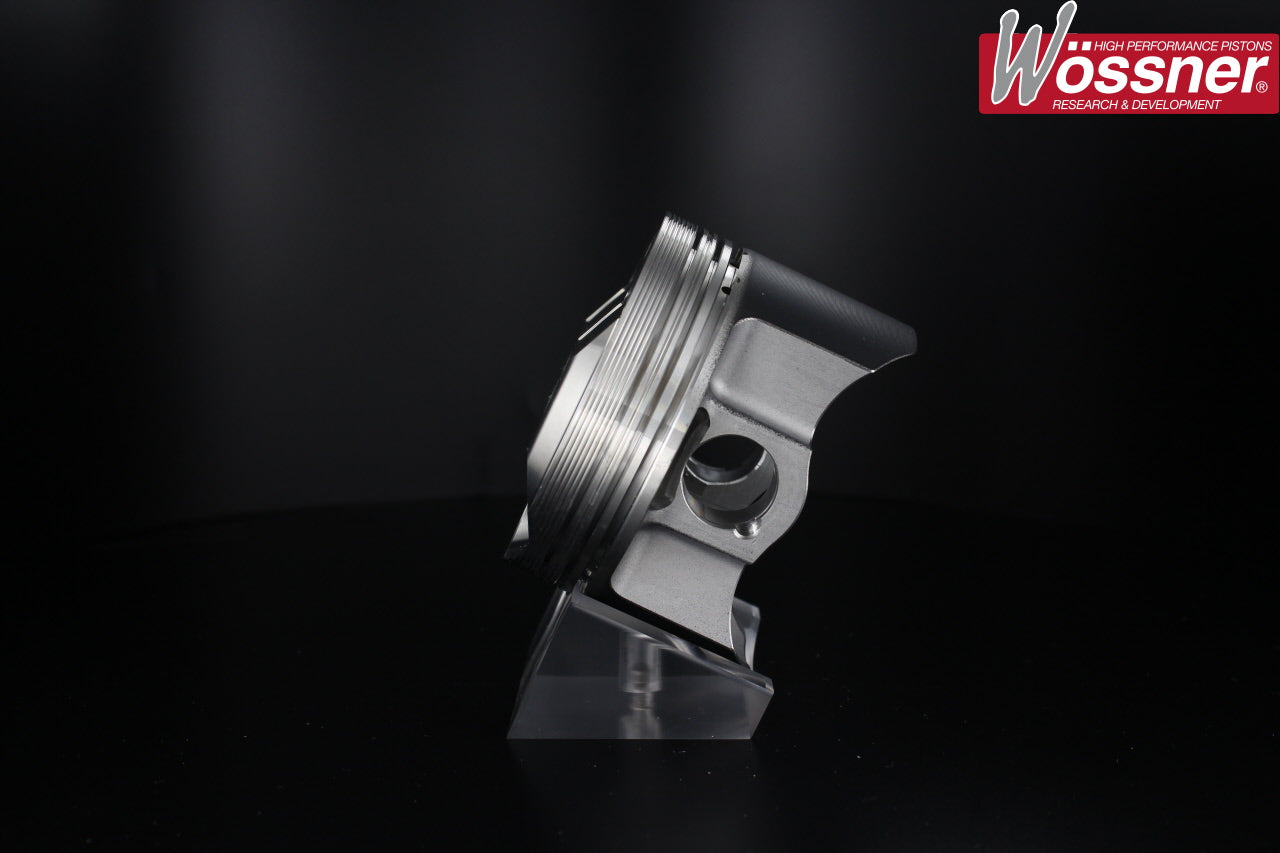

This is the Wössner Citroën Peugeot 206 XSi & C2 VTS TU5JP4 1.6 16v High Comp Forged Piston Kit.

• Manufacturer Citroën, Peugeot
• Kit Part Number K9177
• Engine Code TU5JP4
• YOM From 2000
• YOM To 2009
• Piston number K9177D020, K9177D050, K9177D150, K9177DA
• Bore Size 78.5mm, 78.7mm, 79mm, 80mm
• Stroke 82mm
• Compression Height 32.1mm
• OEM Comp Ratio 10.8:1
• Number of Rings 3
• OEM Rod Length 133.6mm
• Clip Part Number CW18
• Pin Size 18mm
• Pin Part Number WP031
• Cylinders 4
• Valves Per Cylinder 4
• Suits Wossner Con Rod G0010
• Con Rod Length C/C 133.5mm


Bore Size

78.5 mm

• Piston Size: 78.43mm – K9177DA
• Over Size: 0mm
• Displacement CC: 1587cc
• Dome / Bowl Volume: 8.72cc
• Wossner Comp Ratio: 12.2:1
• Ring Part Number: 785XDS

78.7mm

• Piston Size: 78.63mm – K9177D020
• Over Size: 0.2mm
• Displacement CC: 1595cc
• Dome / Bowl Volume: 8.72cc
• Wossner Comp Ratio: 12.26:1
• Ring Part Number: 787XDS

79mm

• Piston Size: 78.93mm – K9177D050
• Over Size: 0.5mm
• Displacement CC: 1607cc
• Dome / Bowl Volume: 8.72cc
• Wossner Comp Ratio: 12.34:1
• Ring Part Number: 790XDS

80mm

• Piston Size: 79.93mm – K9177D150
• Over Size: 1.5mm
• Displacement CC: 1648cc
• Dome / Bowl Volume: 8.72cc
• Wossner Comp Ratio: 12.63:1
• Ring Part Number: 800XDS

Citroën, Peugeot

206 XSi & C2 VTS TU5JP4 1.6 16v

Before sending out your ordered part(s), we perform a compatibility check to guarantee that they will fit your vehicle. This verification can be done by using your registration number (UK) or the last 7 digits of your VIN. Kindly provide your car information before proceeding to checkout.

K9177
