Competition INTERCOOLER KIT for Audi RS6 C6 4F 426KW/580PS (2008-2010)

The WAGNERTUNING high-performance intercooler has got a new competition core (tube fin), which was developed especially for the high requirements of the Audi RS6 C6. Our newly developed HD-Fin type is used to provide the best possible performance. The outer dimensions for each intercooler core are 283 mm x 225 mm x 90 mm + 283 mm x 193 mm x 55 mm (stepped core: 8,73 liters) / 11,14Inch x 8,86Inch x 3,54Inch + 11,14Inch x 7,6Inch x 2,16Inch (stepped core: 532,74Inch³) This high-performance core offers a 79% larger core volume compared to the stock intercooler core.

The aluminium cast endtanks were designed in CAD and optimised in CFD simulations (for an ideal internal airflow). The result is a excellent cooling property with a minimal back pressure. An optimal cooling effect of the charged air with a significant increase in performance! That`s why this kit is perfect for racing use.

The stock mounted plastic air guides can still be used.

An anti-corrosion powder coating with perfect heat-conducting properties protects the WAGNERTUNING intercooler from all environmental influences, so a lasting and optimal cooling effect can be guaranteed. All our products are subject to a continuous quality monitoring.

Inlet diameter: Ø64 mm (same as stock) ; Outlet diameter Ø60 mm (same as stock)

Comparison

Details stock intercooler:
V = 4,88 L / 297,8Inch³
A = 637 cm² / 98,7Inch²

Details WAGNERTUNING intercooler:
V = 8,73 L / 532,74Inch³ (+79%)
A = 637 cm² / 98,7Inch²

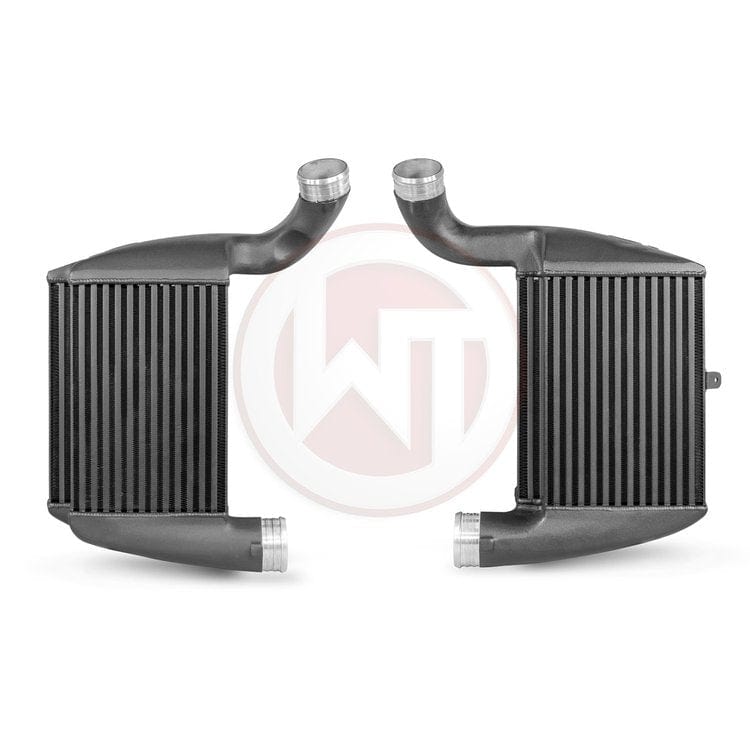

• 2 intercooler powder coated black (left/right)


200001146.BARE

Manufactured by

Wagner

Warranty

Duco Car Parts UK Lifetime Warranty
