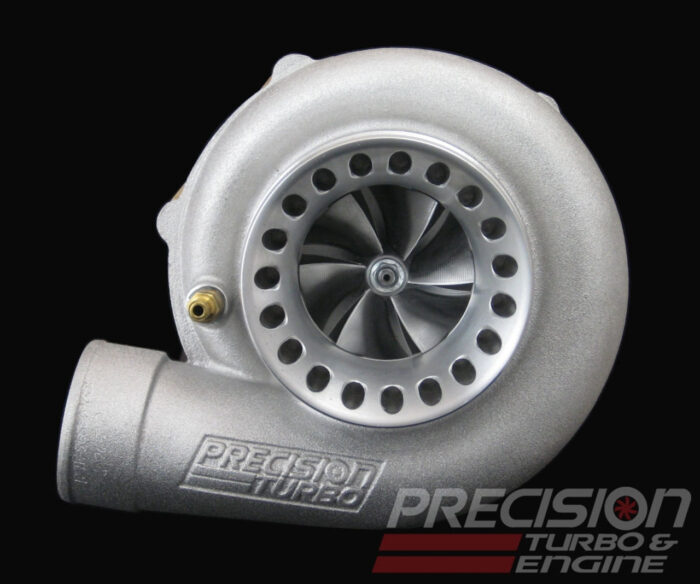

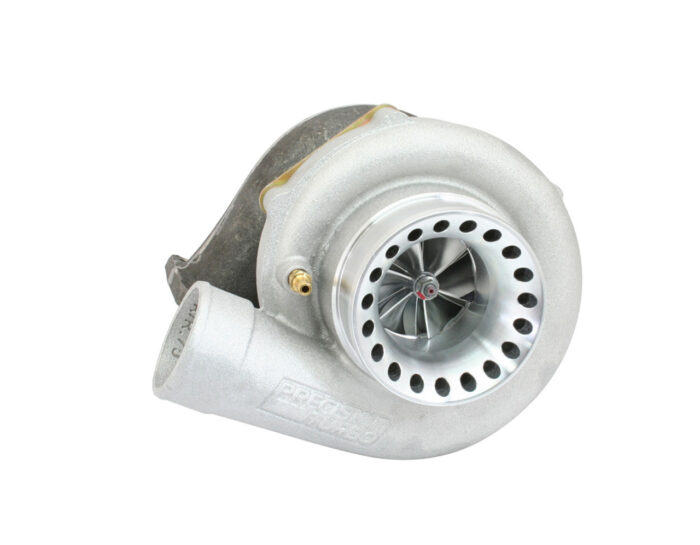

Featuring the latest and greatest in compressor and turbine wheel technology from Precision, the PT6266 offers a unique combination of Competition Engineered Aerodynamics (CEA) with both hot and cold sides! Offering a 30-45 horsepower increase over similarly sized turbine wheel equipped turbos, the PT6266 is the perfect choice for those wanting to make more power without changing their current system.

Turbo Features:

• Exclusive (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum forging
• Higher efficiency and faster transient response for maximum power and performance
• 62mm inducer compressor wheel
• "Ported S" compressor cover 4.0" inlet/2.5" outlet
• Exclusive (Competition Engineered Aerodynamics) 66mm, 76 trim turbine wheel
• Available with either a Hydrodynamic 360° thrust bearing system.
• If you are interested in an air-cooled, dual ceramic ball-bearing center housing rotating assembly (CHRA), we offer the Precision 6266 Gen 2

Part Number: 505-6266

Optional T51R Mod:

• Optional T51R Mod is where we plug and then CNC machine the inlet of the compressor housing to amplify the turbo whine and whistle. Keep in mind this modification is done after the order is placed and typically ads a week or two before the order is shipped. However, sometimes it can take longer and maybe even up to 4 weeks. If you have ordered other finishing options like ceramic or polishing, it may add additional time on top of the typical 2-3 weeks before your order ships. Because of the labor intensive work and machine time needed, there can be delays beyond what we quote. We do take special care to every order to prepare for shipping and want to make sure you get the highest quality parts and service. We are confident that the quality you receive is worth the wait. We appreciate your patience while we work.

Additional information

Feel free to contact us at info@mlperformance.co.uk should you wish to double check!

To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.

PTE-6266-.63-T3-4-BOLT-1 (T3 .63 T3 4-bolt outlet (2.5))

PTE-6266-.63-T3-V-BAND-1 (T3 .63 V-Band outlet (3))

PTE-6266-.82-T3-4-BOLT-1 (T3 .82 4-bolt outlet (2.5))

PTE-6266-.82-T3-V-BAND-1 (T3 .82 V-Band outlet (3))

PTE-6266-.58-T4-Tangential-V-Band-1 (.58 T4 Tangential V-Band outlet (3-5/8))

PTE-6266-.68-T4-Tangential-V-Band-1 (.68 T4 Tangential V-Band outlet (3-5/8))

PTE-6266-.81-T4-Tangential-V-Band-1 (.81 T4 Tangential V-Band outlet (3-5/8))

PTE-6266-.84-T4-Tangential-V-Band-1 (.84 T4 Tangential V-Band outlet (3-5/8))

PTE-6266-.82-V-Band-Inlet-Outlet-1 (.82 V-Band Inlet V-Band outlet)

PTE-6266-.82-SS-V-Band-Inlet-Outlet-1 (.82 SS V-Band Inlet V-Band outlet)

PTE-6266-1.05-SS-V-Band-Inlet-Outlet-1 (1.05 SS V-Band Inlet V-Band outlet)

PTE-6266-.96-T4-Tangential-1 (.96 T4 Tangential V-Band outlet (3-5/8))

PTE-6266-1.00-Divided-T4-V-Band-Outlet-1 (1.00 Divided T4 V-Band Outlet (3-5/8))

PTE-6266-1.15-Divided-T4-V-Band-Outlet-1 (1.15 Divided T4 V-Band Outlet (3-5/8))

PTE-6266-1.27-Divided-T4-V-Band-Outlet-1 (1.27 T4 Tangential V-Band outlet (3-5/8))

PTE-6266-1.32-Divided-T4-V-Band-Outlet-1 (1.32 Divided T4 V-Band Outlet (3-5/8))

Manufactured by

Vegas Turbocharger Technologies
