Upgrade spacer -chain tensioner for VR6

Aluminum spacer fpr VR6 Turbo upgrades

Necessary when using a compression reduction plate

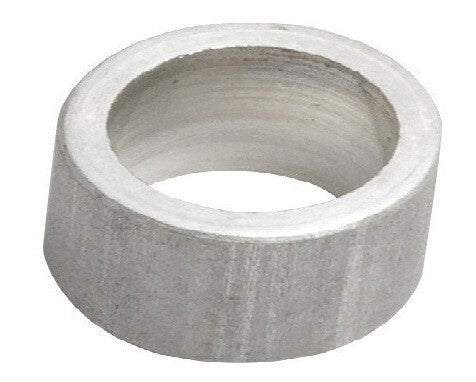

This CNC machined spacer made of aluminum is used as a chain tensioner to give sufficient space for the compression reduction plate which is used with turbo upgrades.

Technical Specification:
Outer Diameter: 28.9mm
Inner Diameter: 22mm
Height: 11.2mm
Thickness: 3.4mm

The thicker the compaction reducer plate. the thicker the sleeve must be. For a 1.5mm plate with two metal gaskets (0.6mm outer layers). a 5mm sleeve should be sufficient. As a rule: Example calculation: 3mm plate and 2 metal head gaskets makes a total of 4.2mm and when compressed it is about 4mm. Multiplying this by 2 gives 8mm -> The sleeve should then be 8mm thick (with sealing rings). Without rings 6mm.

Feel free to contact us at support@ducocarparts.co.uk should you wish to double check!

To ensure the part(s) you have ordered fits your vehicle. we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.

TURBOZENTRUM-432133

Manufactured by

TurboZentrum
