Turbozentrum 404040 Adapter flange GT25R / GT28R (2-Bolt) - compressor outlet

Turbozentrum 404040 Adapter flange GT25R / GT28R (2-Bolt) - compressor outlet

£76.06 GBP
£78.42 GBP £76.06 GBP
Inc. VAT
Sale Sold out
Pop-up link text

In Stock & ready for next working day delivery

Estimated lead time 2-3 working days. Subject to availability.

Get the best deal with Duco's Price Match Policy

View full details

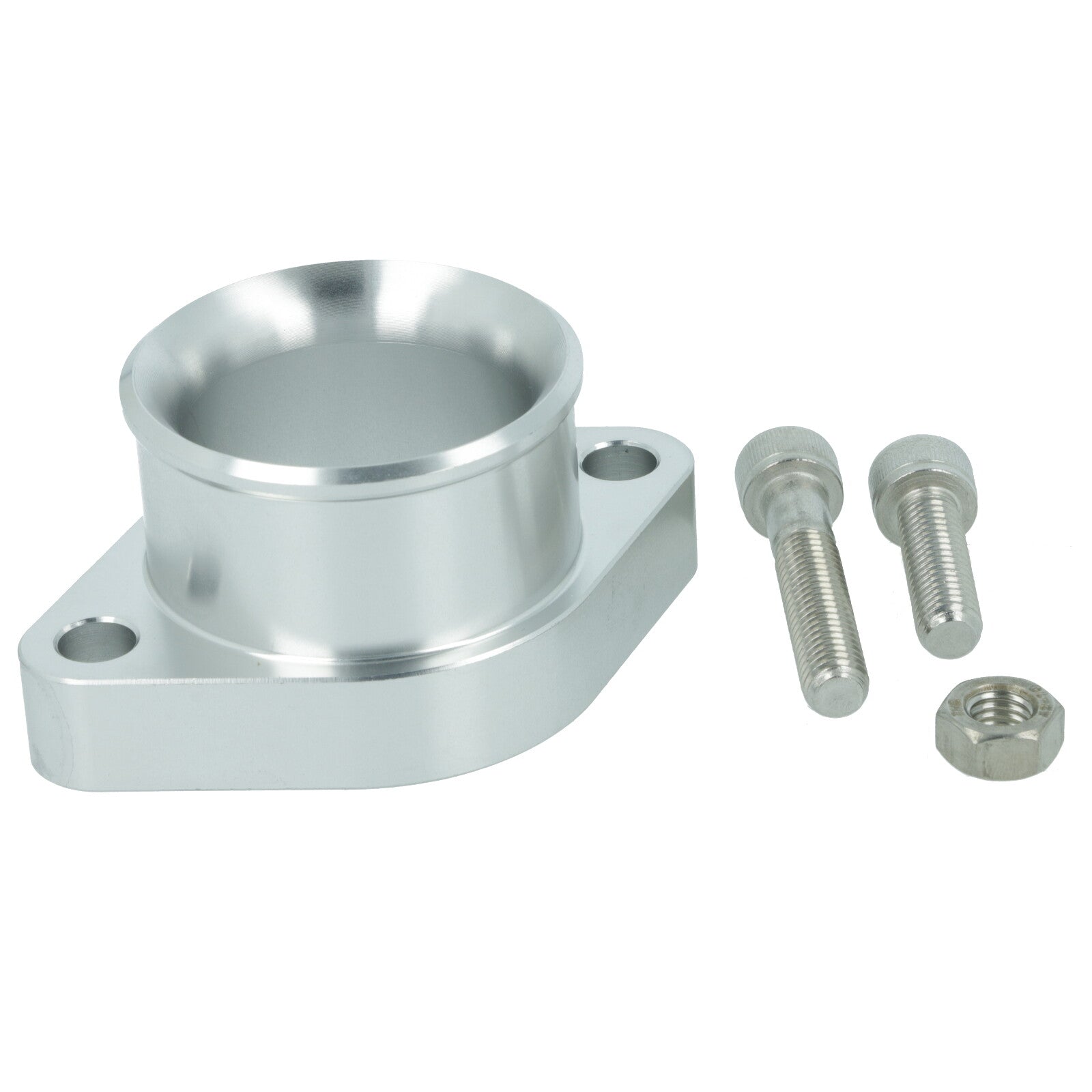

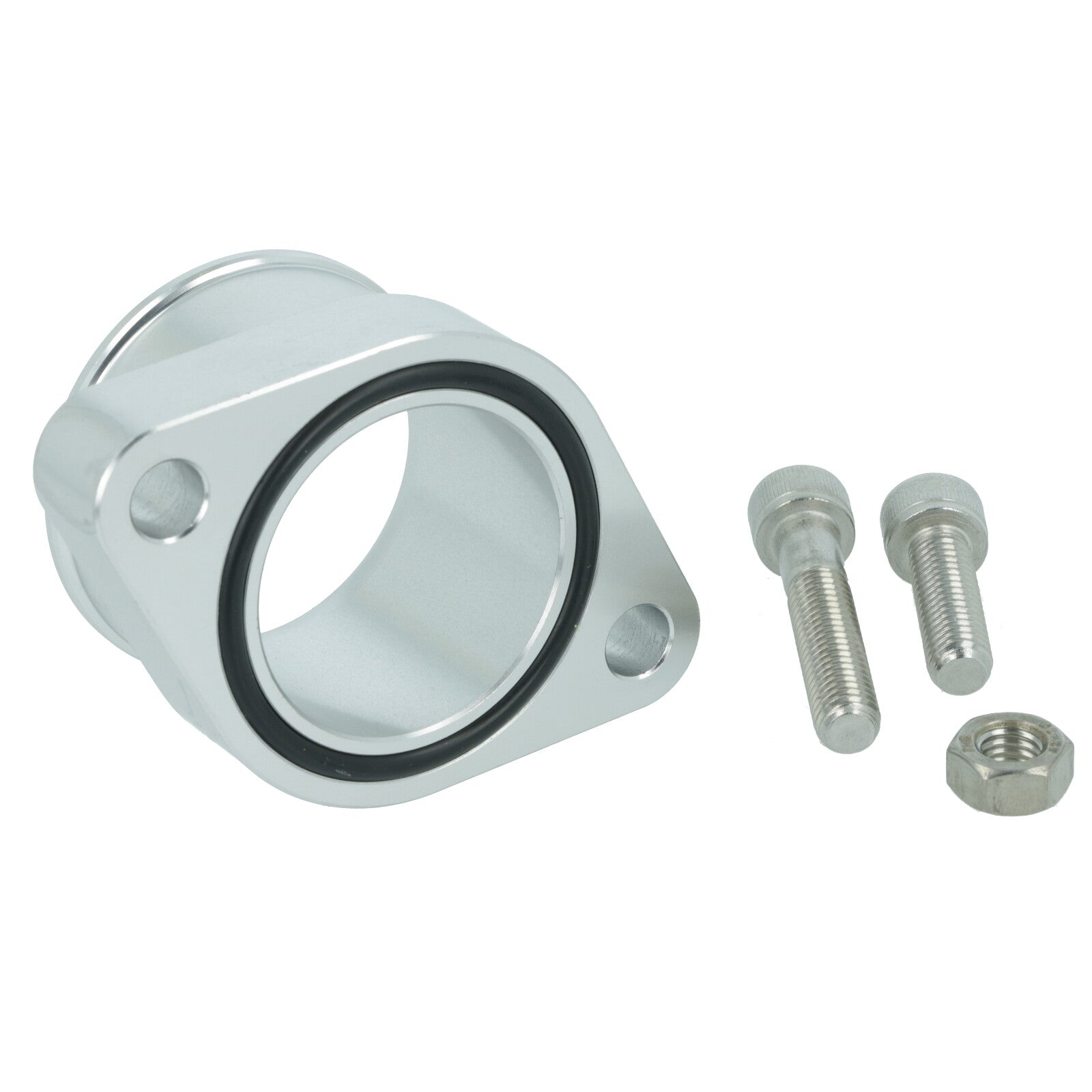

Flange Air GT25R /GT 28R (2-bolt)

Adapter flange compressor outlet

CNC milled aluminum adapter for GT25R and GT28R

Several Garrett turbochargers of the GT25 to GT28 series do not feature a hose connection at the compressor housing but bolt-on flanges. These require an adapter to fit a hose to the compressor housing. The flange is made of aluminum CNC milled. Perfect fit and perfect seal thanks to premium seal ring.

Material: aluminum
Total dimensions: 41mm (total height). 15mm (socket only)
Dimensions cut-out: 40mm (Innen). 51mm (+ groove. hose connection diameter)
Hole distance: 75mm
Thread: M6
Version: For 2-bolt compressor housings (meist Skyline Versionen)
Extras / Features: bolts. seal ring

For / Fits:
GT25R and GT28R (Druckluft)

GT25R. GT2554R. GT25. T25. T25BB
GT28R. GT2860R. GT28. T28. T28BB

as well as GT2860RS (GT28RS) with GT28R compressor housing



  • Availability: available

    •

    Feel free to contact us at support@ducocarparts.co.uk should you wish to double check!



    To ensure the part(s) you have ordered fits your vehicle. we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.



    TURBOZENTRUM-404040



    Manufactured by

    TurboZentrum
