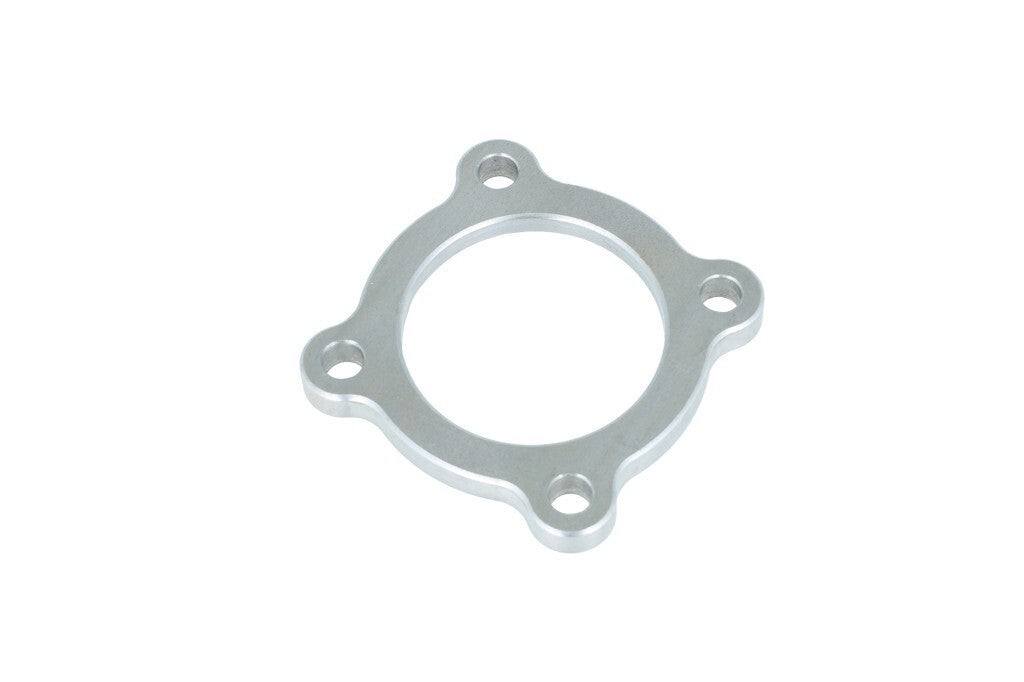

Downpipe Flange 4-bolt 76mm

Flange for fabrication of the downpipe

Premium mild steel downpipe flange

This flange is used to fit the downpipe to the turbocharger. at the turbine outlet. All flanges are perfectly even and fit 100%. They are cut by water-jet or CNC milled to prevent warping.

Material: steel
Material thickness: 10mm
Total dimensions: 117mm (outside diagonally). 91mm (outside without connections)
Dimensions cut-out: 76mm (groove for pipe). 73mm (inner diameter pipe)
Inner Diameter: 76mm
Hole distance: 100mm (diagonal)
Thread: for M8
Extras / Features: no threads! Holes 9mm!

Fur / Fits:
Turbooutlet 4-bolt / 76mm

Garrett GT3071R
Garrett GT3076R (GT30R oder GT30RS)
Garrett GT3082R (GT30/40R)
Garrett GT3582R (GT35/40R oder GT35R)

KKK BorgWarner einige K27 Modelle
several KKK turbos starting at K27

If you are unsure whether this flange fits to your turbocharger. just draw a sketch of your turbine flange and hand it to us for comparison.

Feel free to contact us at support@ducocarparts.co.uk should you wish to double check!

To ensure the part(s) you have ordered fits your vehicle. we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.

TURBOZENTRUM-402973

Manufactured by

TurboZentrum
