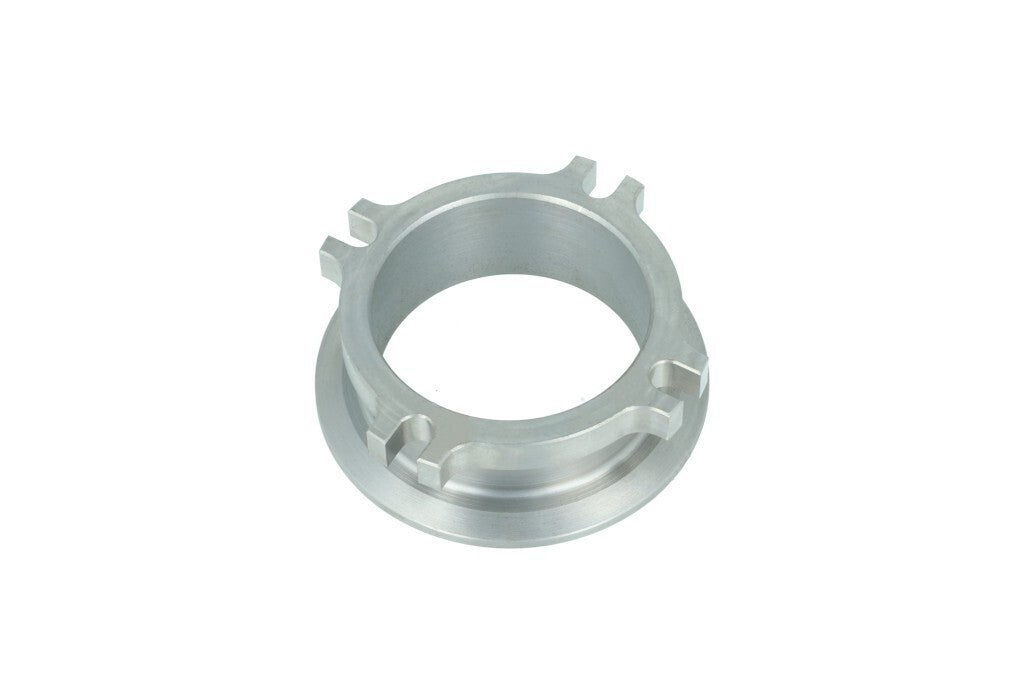

Downpipe Flange 4-bolt 63.5mm to V-Band 76mm

Adapter for the construction of a downpipe

Premium mild steel downpipe flange

With this adapter you can easily fit a turbine housing with 63mm 4-bolt flange to a 76mm V-band connection. This flange is meant for the exhaust pipe at the turbine outlet. The adapter is CNC milled to be perfectly even and ensure 100% fit.

Material: steel / Mild Steel
Material thickness: 10mm
Total dimensions: 106mm (outside diagonally). 76mm (outside without connections)
Dimensions cut-out: 63.5mm (groove for pipe). 60mm (inner diameter)
Hole distance: 89mm (diagonal)
Thread: for M8
Extras / Features: open holes for easy assembly

For / Fits:
Turbooutlet 4-bolt 63.5mm
Garrett GT2554R (GT25R) with neuer T31 turbine housing (T3)
Garrett GT2560R (GT28R) with neuer T31 turbine housing (T3)
Garrett GT2860RS (GT28R) with T3 4-bolt turbine housing as well as KKK K24/26
Garrett GT2871R with T3 4-bolt turbine housing as well as K24/26 (Audi S2 und RS2) turbine housing
Garrett GT2876R (GT25/40R) with T3 4-bolt as well as K24/26 turbine housing
Garrett GT3071R with T3 4-bolt turbine housing as well as K24/26 (Audi S2 und RS2) turbine housing
Garrett GT3076R (GT30R oder GT30RS) with T3 4-bolt as well as K24/26 turbine housing
Garrett GT3082R (GT30/40R) with T3 4-bolt turbine housing as well as KKK K24/26
Garrett GT3582R (GT35/40R oder GT35R) with T3 4-bolt as well as K24/26 turbine housing
Garrett T3 with 4-bolt turbine housing (mostly without internal wastegate)
Garrett T3 Super 60 with 4-bolt turbine housing (mostly without internal wastegate)
Garrett T3/T4 with 4-bolt turbine housing (mostly without internal wastegate)
KKK BorgWarner K24 Modelle
KKK BorgWarner K26 Modelle
KKK BorgWarner einige K27 Modelle
KKK K24/7200 (Audi RS2-turbocharger)
KKK K24/7000 (Audi S2-turbocharger)

If you are unsure whether this flange fits to your turbo. we provide the dimensions. When still in doubt you can just draw a sketch and send it to us for comparison.

Feel free to contact us at support@ducocarparts.co.uk should you wish to double check!

To ensure the part(s) you have ordered fits your vehicle. we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.

TURBOZENTRUM-402164

Manufactured by

TurboZentrum
