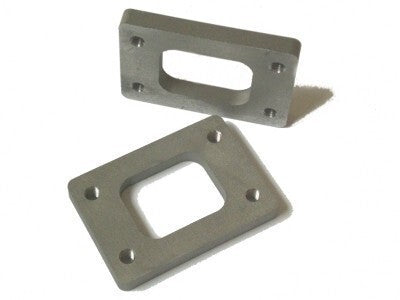

Exhaust Manifold Flange V2A T25 / GT25R / T28 / GT28R

Flange for exhaust manifold construction

Premium stainless steel downpipe flange with thread

Offering our exhaust manifold flanges we supply the flange needed to connect the turbocharger to the exhaust manifold. Additionally we supply elbows and collectors needed for the fabrication of an exhaust manifold. All flanges are water-jet cut to prevent warping during the cutting process. They are perfectly even. The flange thickness is chosen by our experience.

Material: stainless steel
Material thickness: 10mm
Total dimensions: 99mm x 64mm
Dimensions cut-out: 50mm x 37mm
Hole distance: 73mm x 40mm
Thread: M8
Extras / Features: Thread!! No holes!

For / Fits:
turbocharger T12 to T28

Garrett T12
Garrett T15
Garrett T2 . T20
Garrett T25 . T25BB
Garrett T28 . T28BB
Garrett GT12 (4-bolt flange only)
Garrett GT15
Garrett GT20
Garrett GT25R . GT2554R
Garrett GT28R . GT2860R
Garrett GT28RS . GT2860RS
Garrett GT2871R
Garrett GT2876R . GT28/40R . GT25/40R
Garrett GT3071R-WG (T28 turbine housing only)
Garrett GT3076R-WG (T28 turbine housing only)

If you are unsure whether this flange fits to your turbocharger. just draw a sketch of your turbine entry flange and hand it to us for comparison.

Feel free to contact us at support@ducocarparts.co.uk should you wish to double check!

To ensure the part(s) you have ordered fits your vehicle. we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.

TURBOZENTRUM-400098

Manufactured by

TurboZentrum
