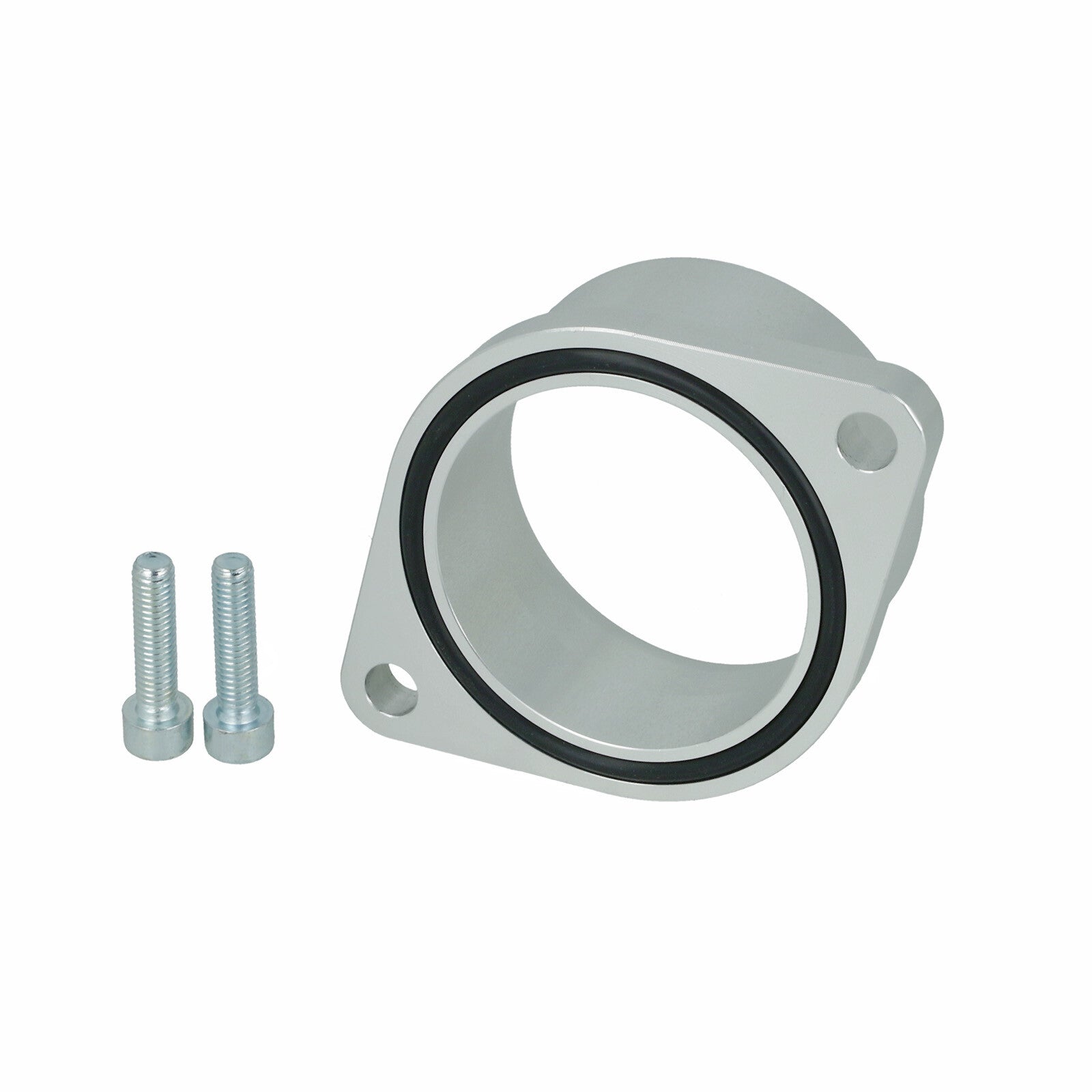

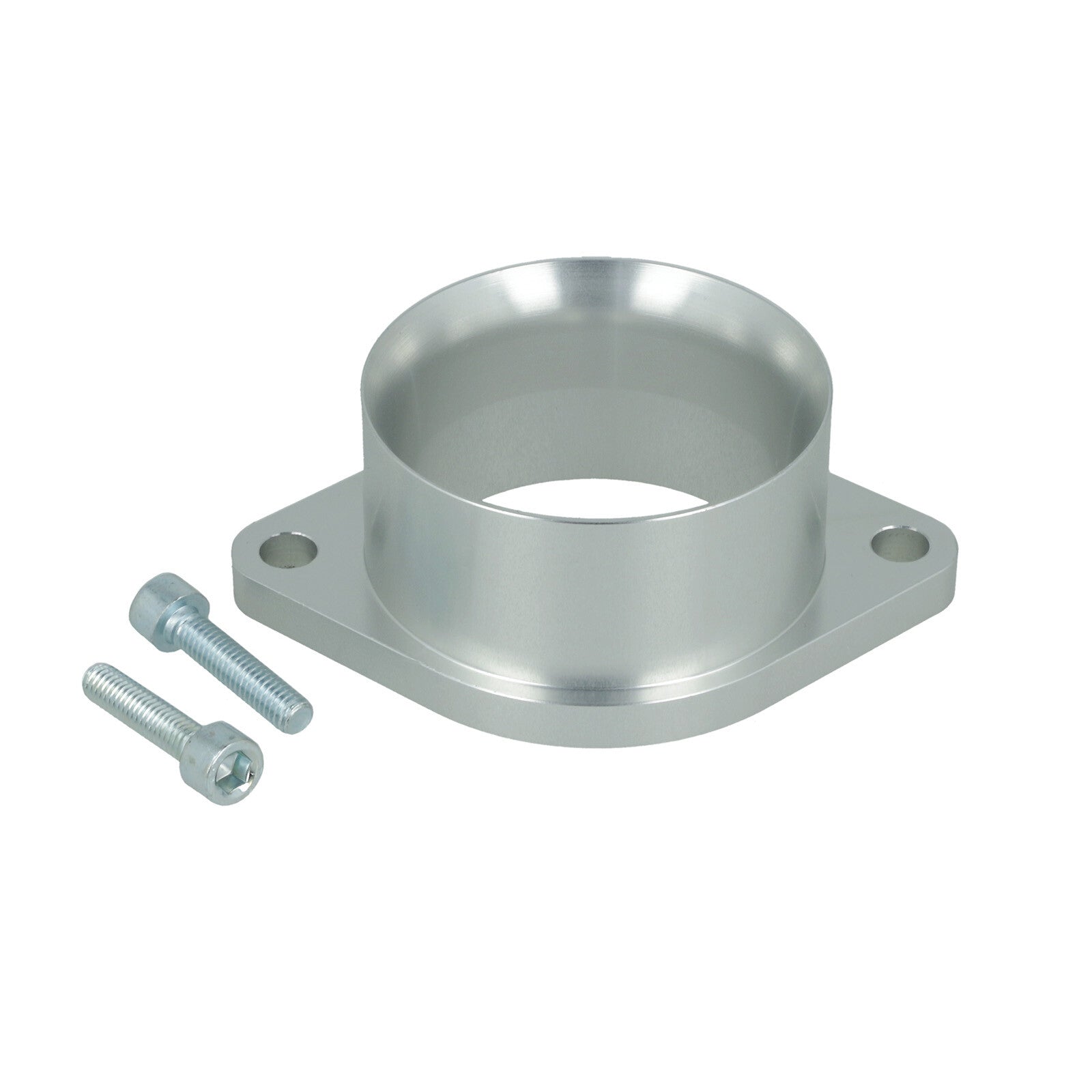

Garrett GT28R / GT25R inlet / intake flange -2.5" / 63.5mm

Adapter flange compressor inlet incl. O-ring and screws

CNC milled Aluminium adapter for GT25R and GT28R

Several Garrett turbochargers of the GT25 to GT28 series do not feature a hose connection at the compressor housing but bolt-on flanges. These require an adapter to fit a hose to the compressor housing. The flange is made of Aluminium CNC milled. Perfect fit and perfect seal thanks to premium seal ring.

Material: Aluminium
Total dimensions: 21mm (total height). 5mm (socket only)
Dimensions cut-out: 54mm (Innen -slightly conical)
Hose connection: 63.5mm / 2.5" auBen
Hole distance: 84mm
Thread: M8
Extras / Features: With seal ring

For / Fits:
GT28R (intake)
GT28R. GT2860R. GT28. T28. T28BB
as well as GT2860RS (GT28RS) with GT28R compressor housing

Feel free to contact us at support@ducocarparts.co.uk should you wish to double check!

To ensure the part(s) you have ordered fits your vehicle. we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.

TURBOZENTRUM-289645

Manufactured by

TurboZentrum
