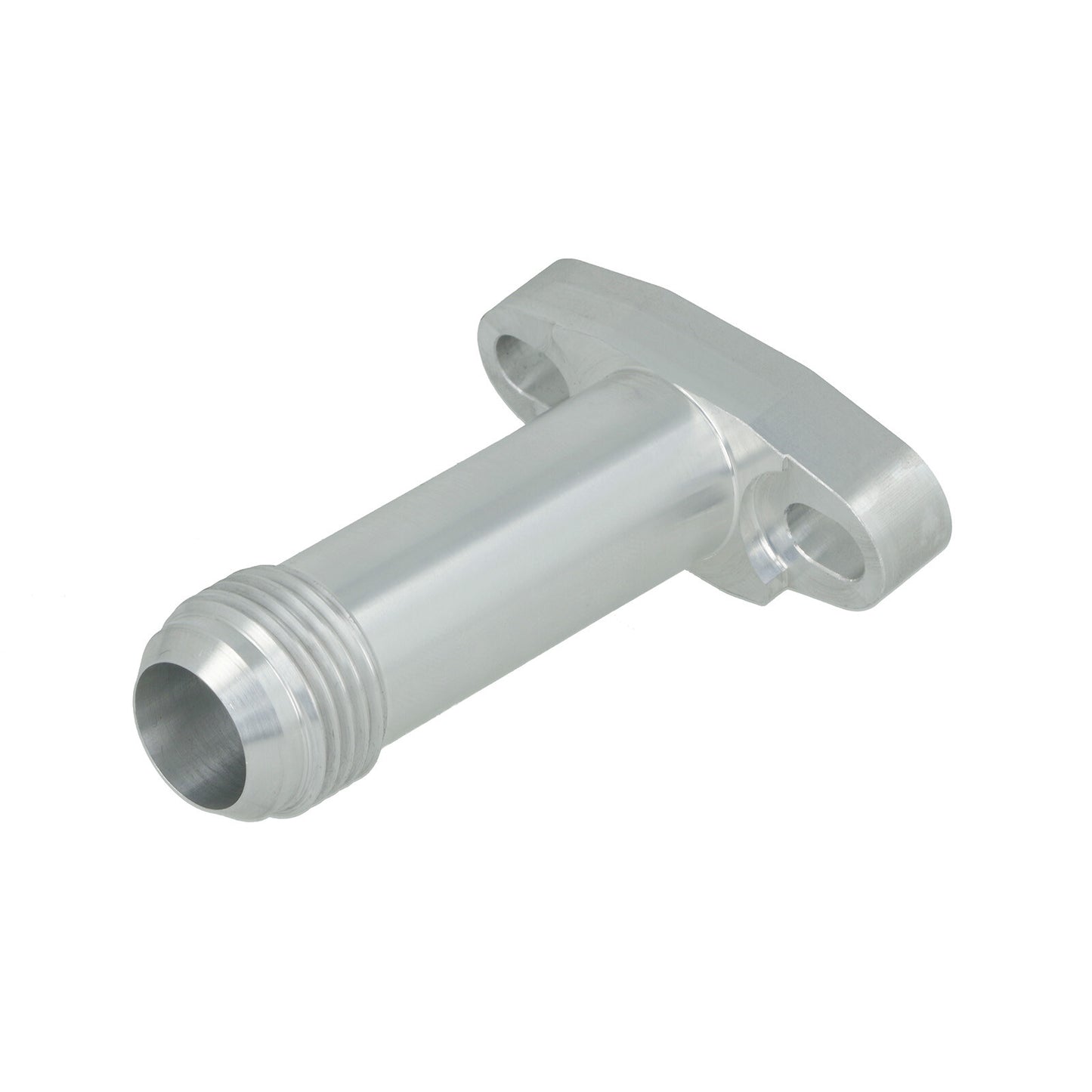

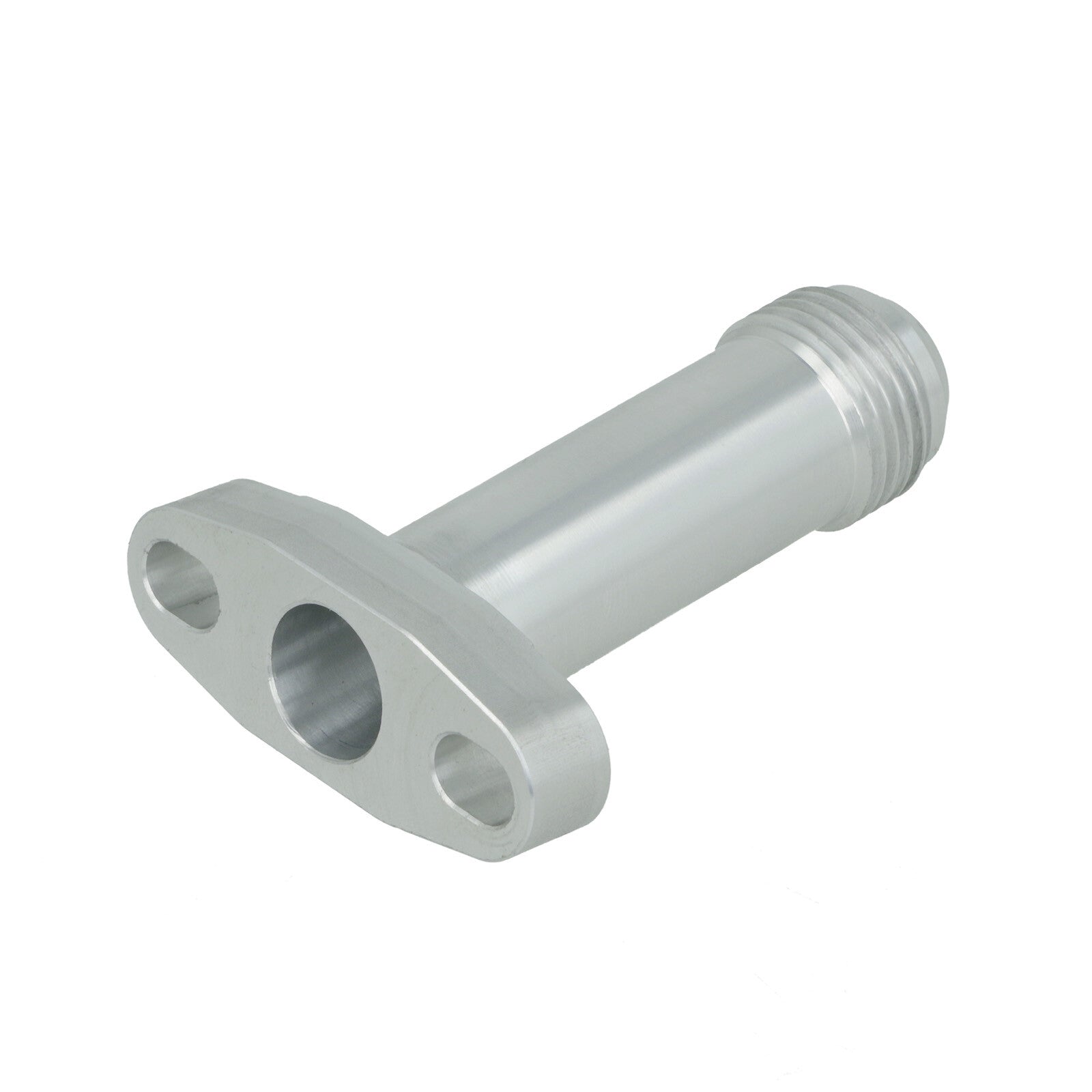

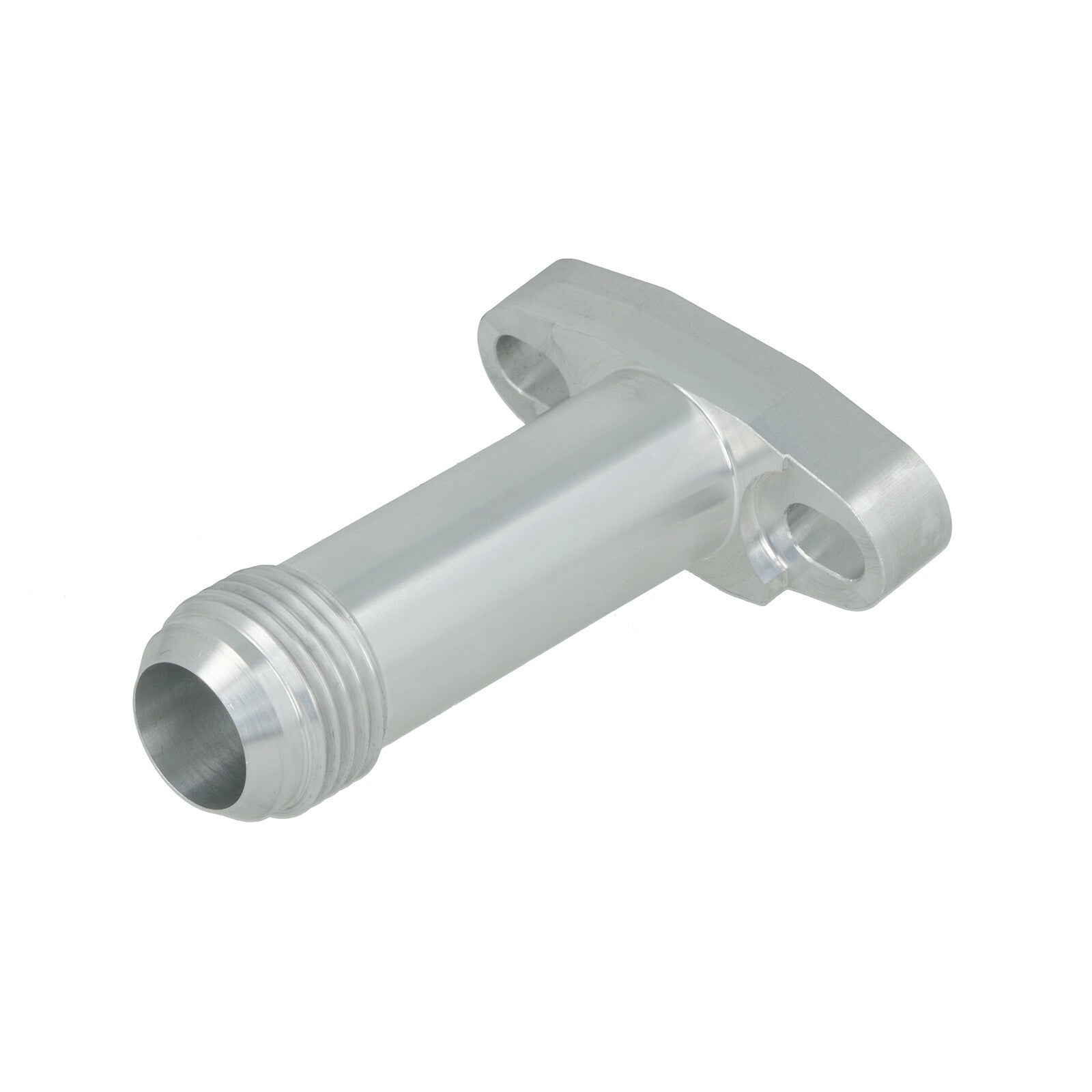

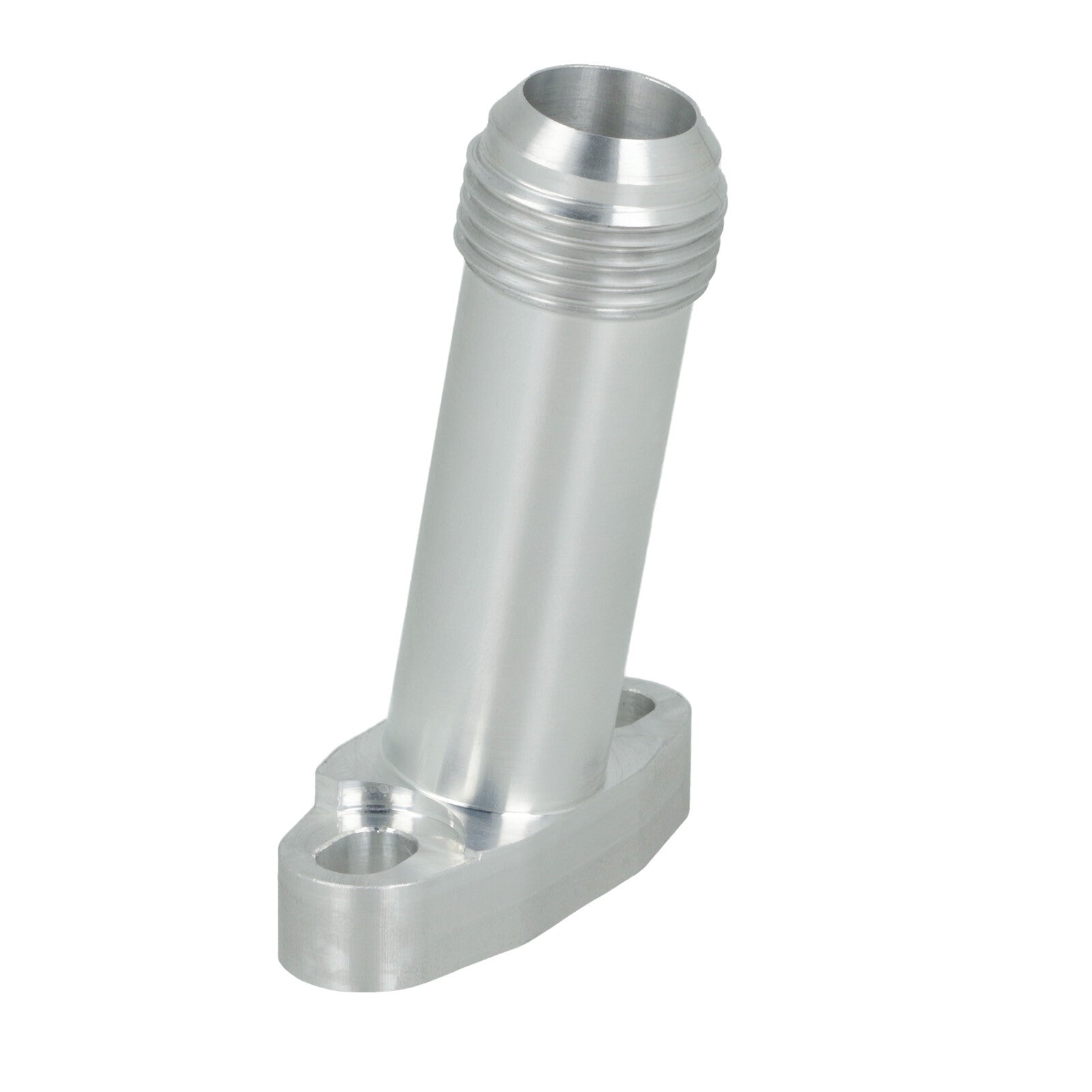

Oil return flange GBC-14-200

Return flange with extension and Dash 10 male thread. 65mm long

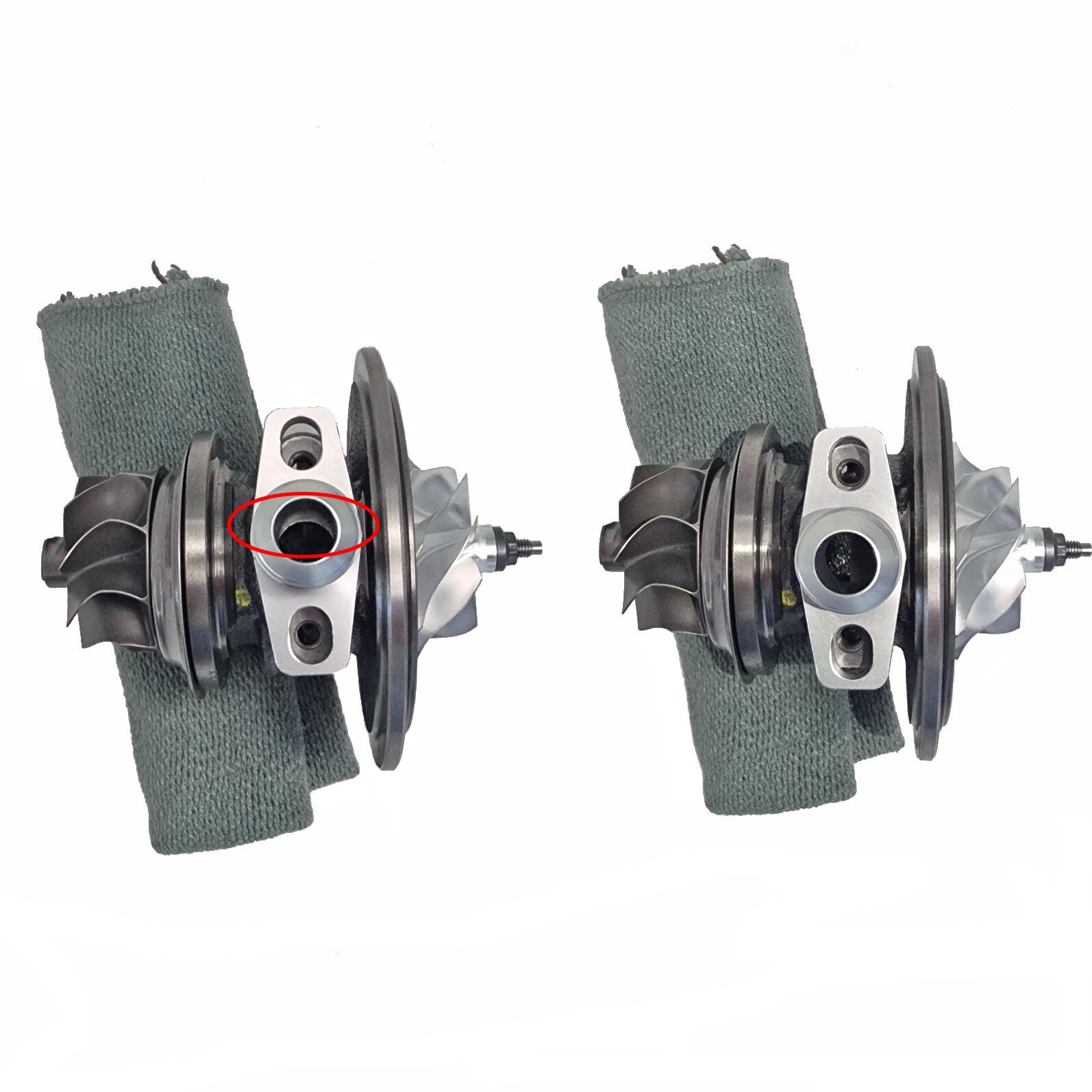

for Garrett GBC-14-200 turbocharger

Only available at TurboZentrum! All other oil return flanges do not fit!

This aluminum oil return flange for the Garrett GBC-14-200 turbocharger is CNC turned for a perfect fit. Due to the elongated holes. a certain flexibility is given. The cross section of the return hole is designed for the necessary return flow of the oil in the correct size.

Material: Aluminium (EN AW 6061)
Thread: Dash 10 / -10AN external thread
Bore diameter: 10mm


Fits for:
GBC14-200 -896051-5004S

What you should pay attention to:
For the supply line. select at least a Dash 4 line. The oil return line must be at least Dash 10 or at least 16mm (inner diameter)!



  • Availability: available
  • Material: Aluminium
  • Thread: -10 AN / Dash 10
  • Model: single flange
  • Turbocharger: GBC14-200

    •

    Feel free to contact us at support@ducocarparts.co.uk should you wish to double check!



    To ensure the part(s) you have ordered fits your vehicle. we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.
