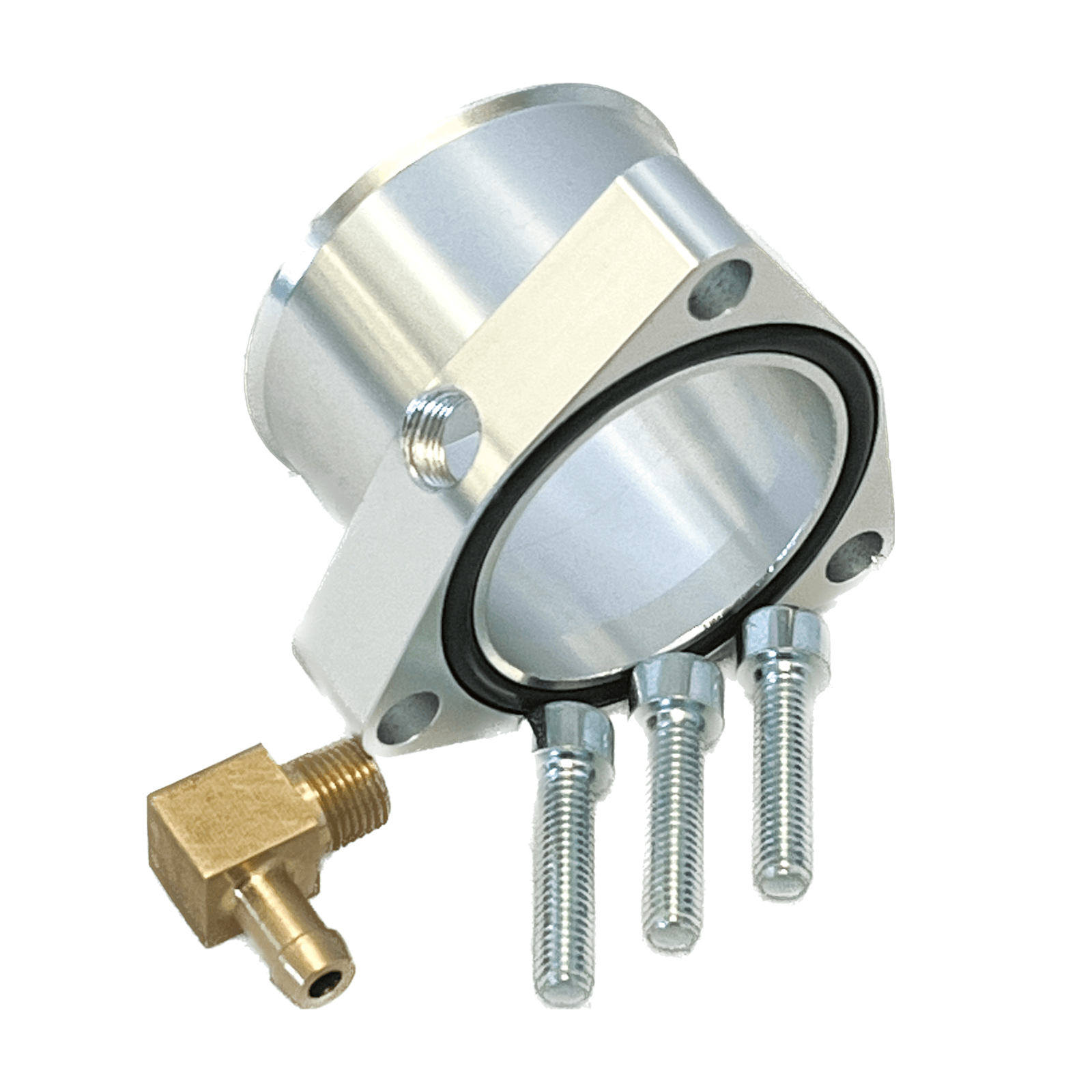

Garrett GT28R / GT25R Compressor housing outlet adapter (3-Bolt)

Adapter flange compressor outlet air incl. o-ring. screws and boost tap

CNC milled aluminium adapter for GT25R and GT28R

Several Garrett turbochargers of the GT25 to GT28 series do not feature a hose connection at the compressor housing but bolt-on flanges. These require an adapter to fit a hose to the compressor housing. The flange is made of Aluminium CNC milled. Perfect fit and perfect seal thanks to premium seal ring. Additionally a 90° angled connector fort he wastegate actuator control line or the external wastegate is included.

Material: Aluminium
Total dimensions: 41mm (total height). 15mm (socket only)
Dimensions cut-out: 40mm (Innen). 51mm (+ groove. hose connection diameter)
Hole distance: 55mm
Thread: M6
Version: For 3-bolt compressor housings
Extras / Features: bolts. seal ring. connection for control line included

For / Fits:
GT25R and GT28R (Druckluft)

GT25R. GT2554R. GT25. T25. T25BB
GT28R. GT2860R. GT28. T28. T28BB

as well as GT2860RS (GT28RS) with GT28R compressor housing

Feel free to contact us at support@ducocarparts.co.uk should you wish to double check!

To ensure the part(s) you have ordered fits your vehicle. we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.

TURBOZENTRUM-228234

Manufactured by

TurboZentrum
