Flange V-Band (inlet) G35 turbine housings

Stainless steel manifold flange for Garrett V-Band Ni-Resist turbine housings

Garrett V-Band flange fits for Garrett G35-900 / G35-1050 exhaust housings

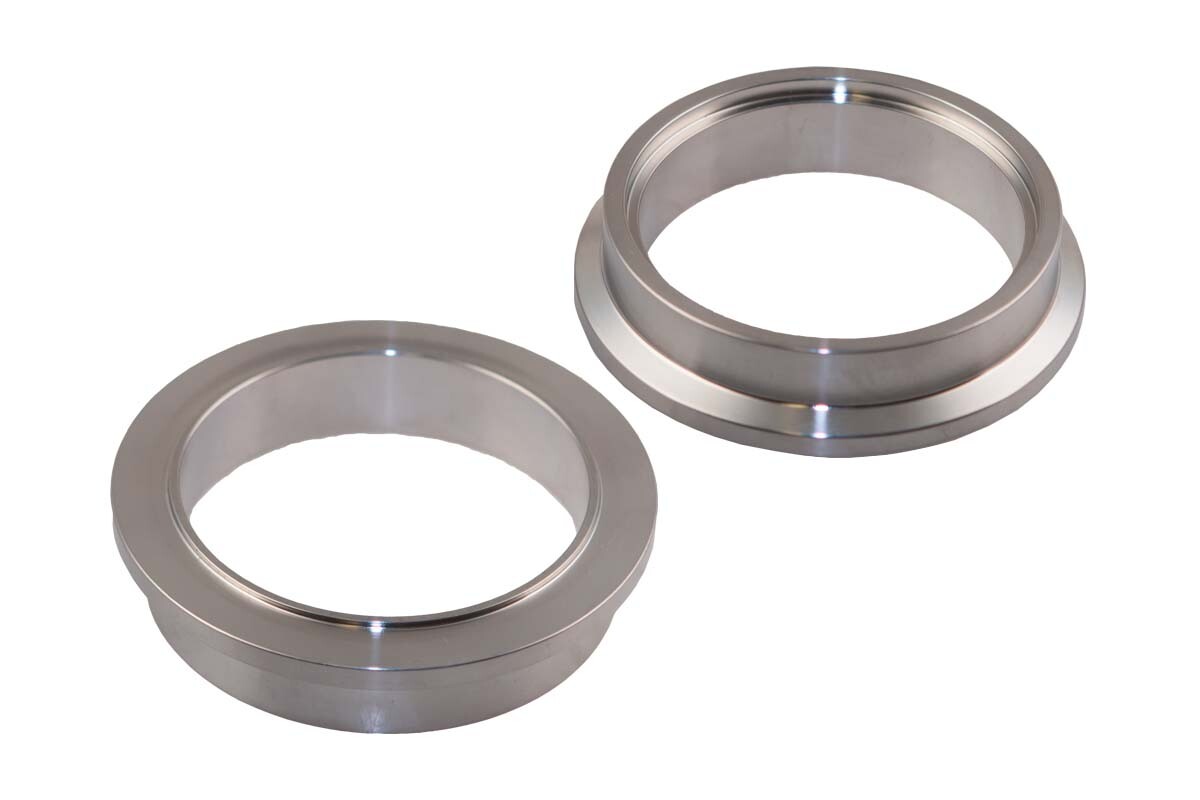

High-quality stainless steel V-Band flange (inlet) 60mm (2.35"). fits for the brand new Garrett G35-900 / G35-1050 single scroll V-Band tubrine housings. This V-Band ring is required if you like to fit an original Garrett V-Band Ni-resist exhaust housing on a turbo manifold / collector. The flange will be welded to the turbo manifold collector and then clamped with the turbine housing (see list of housings applications below) using our stainless steel V-Band clamp (826466-0001). This V-Band ring is CNC maschined from heat resistant stainless steel and very good weldability.

Application: Inlet of the turbine housing to manifold side

Material: Stainless steel

Fits for turbine housings (inlet / manifold side):
G35 740902-0102
G35 740902-0103
G35 740902-0104
G35 740902-0105

G35 740902-0012 -Reverse
G35 740902-0012 -Reverse
G35 740902-0013 -Reverse
G35 740902-0014 -Reverse

Fits for turbocharger (inlet / manifold side):
G35-900 880700-5001S
G35-900 880700-5002S
G35-900 880700-5003S
G35-900 880700-5004S
G35-900 880701-5001S -Reverse
G35-900 880701-5002S -Reverse
G35-900 880701-5003S -Reverse
G35-900 880701-5004S -Reverse

G35-1050 880700-5008S
G35-1050 880700-5009S
G35-1050 880700-5010S
G35-1050 880700-50011S
G35-1050 880701-5007S -Reverse
G35-1050 880701-5008S -Reverse
G35-1050 880701-5009S -Reverse
G35-1050 880701-5010S -Reverse

Feel free to contact us at support@ducocarparts.co.uk should you wish to double check!

To ensure the part(s) you have ordered fits your vehicle. we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.
