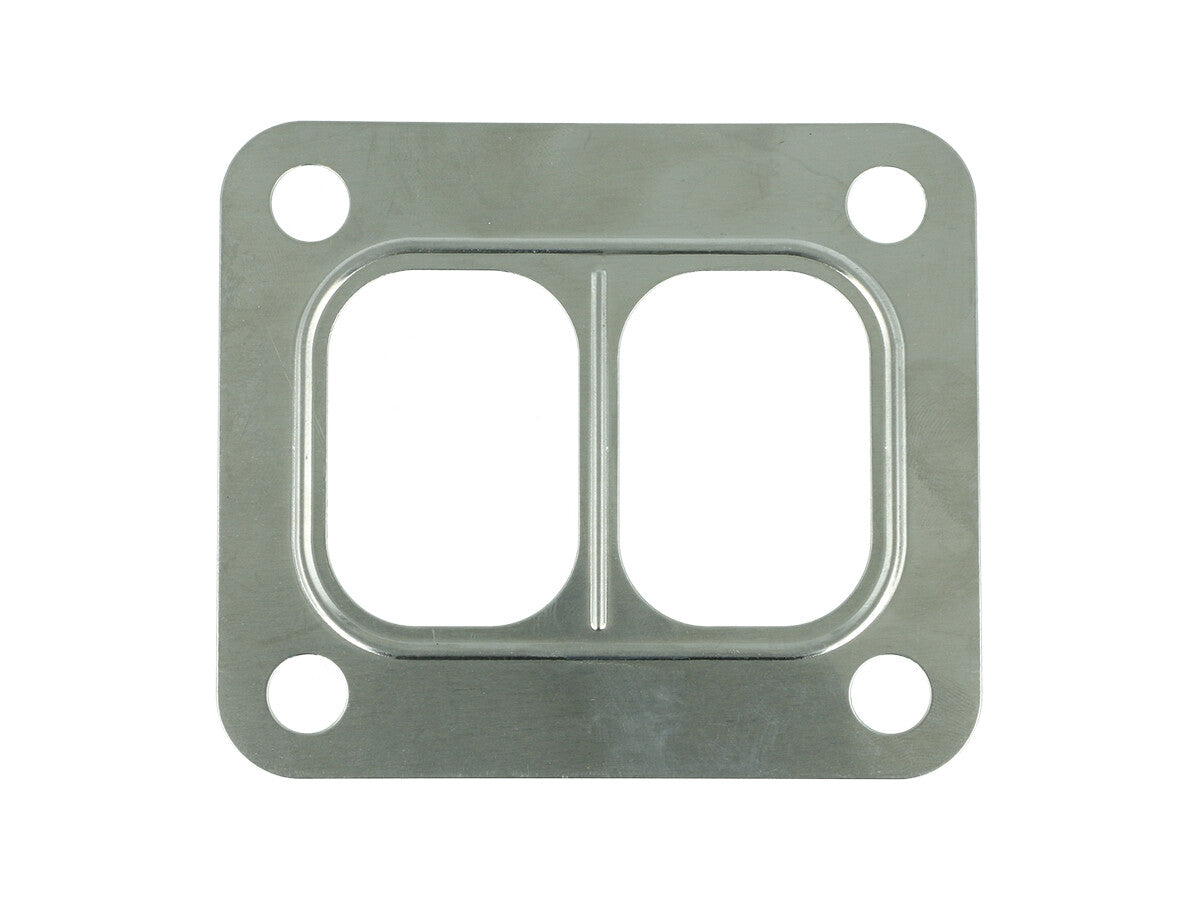

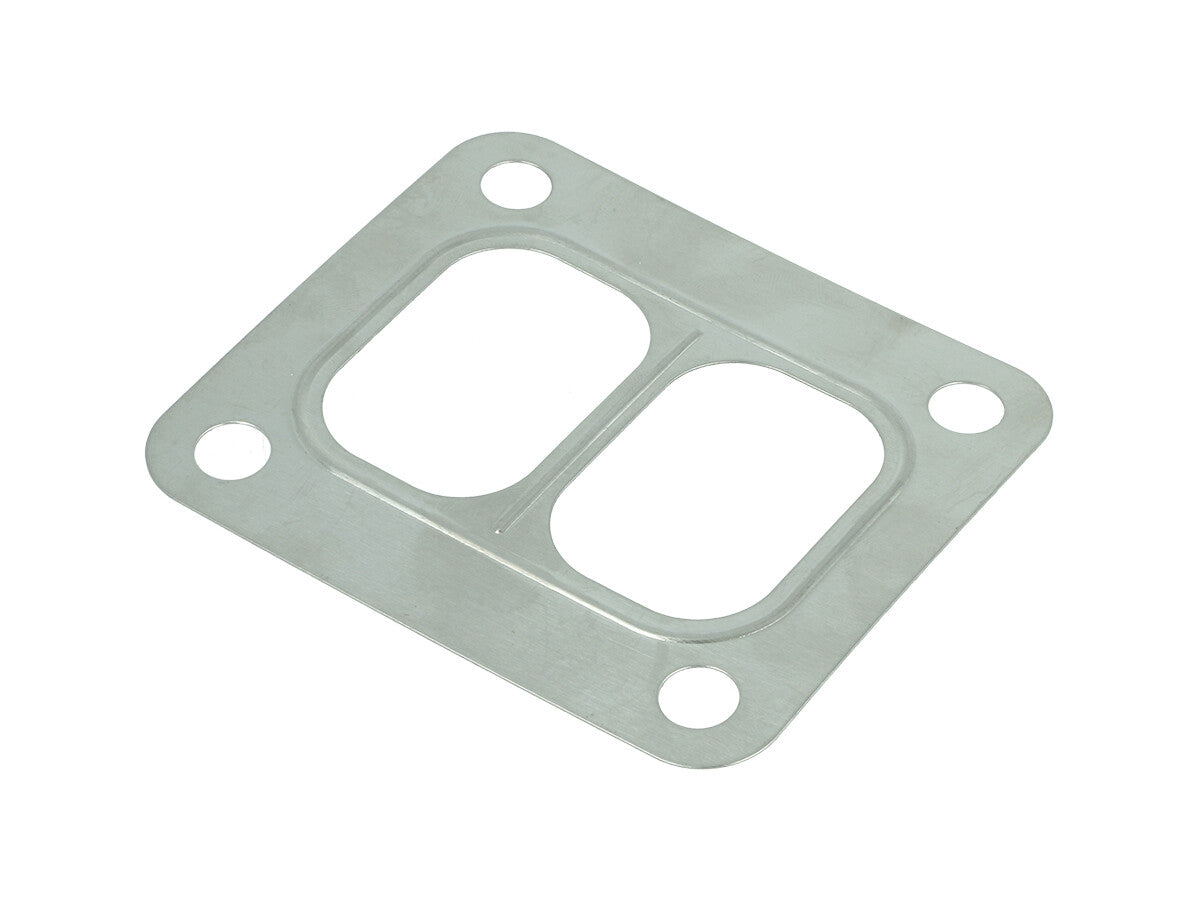

Manifold gasket T4 / TwinScroll S200SX-E / S200 / S200SX

High-quality turbo metal gasket for BorgWarner AirWerks turbochargers

Gasket between manifold and turbocharger for S200SX-E / S200 / S200SX

The gasket is made of stainless steel die-cut. The imprinted grooves put the sealing surface exactly where needed. Please keep in mind that each assembly and disassembly requires a new gasket.

Material: Stainless steel
Overall dimensions: 108 mm x 94 mm
Dimensions cut-out: 2x 52mm x 35mm (bridge 5mm)
Hole spacing: 83 mm x 70 mm

For / Fits
Turbocharger T4 / BorgWarner AirWorks with TwinScroll turbine housing

AirWerks S200
AirWerks S200SX
AirWerks S200SX-E

If you are not sure if this flange fits to your turbocharger. you can make a sketch of your turbine inlet flange. we will compare it!

Feel free to contact us at support@ducocarparts.co.uk should you wish to double check!

To ensure the part(s) you have ordered fits your vehicle. we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.

TURBOZENTRUM-200079

Manufactured by

TurboZentrum
