V-Band Flange (Outlet) GTW36 GTW38 Turbine Housings

Downpipe Flange for Garrett GTW T4 Turbine Housings

V-Band Flange fits for Garrett GTW3684 / GTW3684R / GTW3884 / GTW3884R Exhaust Housings

Note: Does not fit for GTW turbine housings with T4 flange and 0.96 / 0.70 A/R!

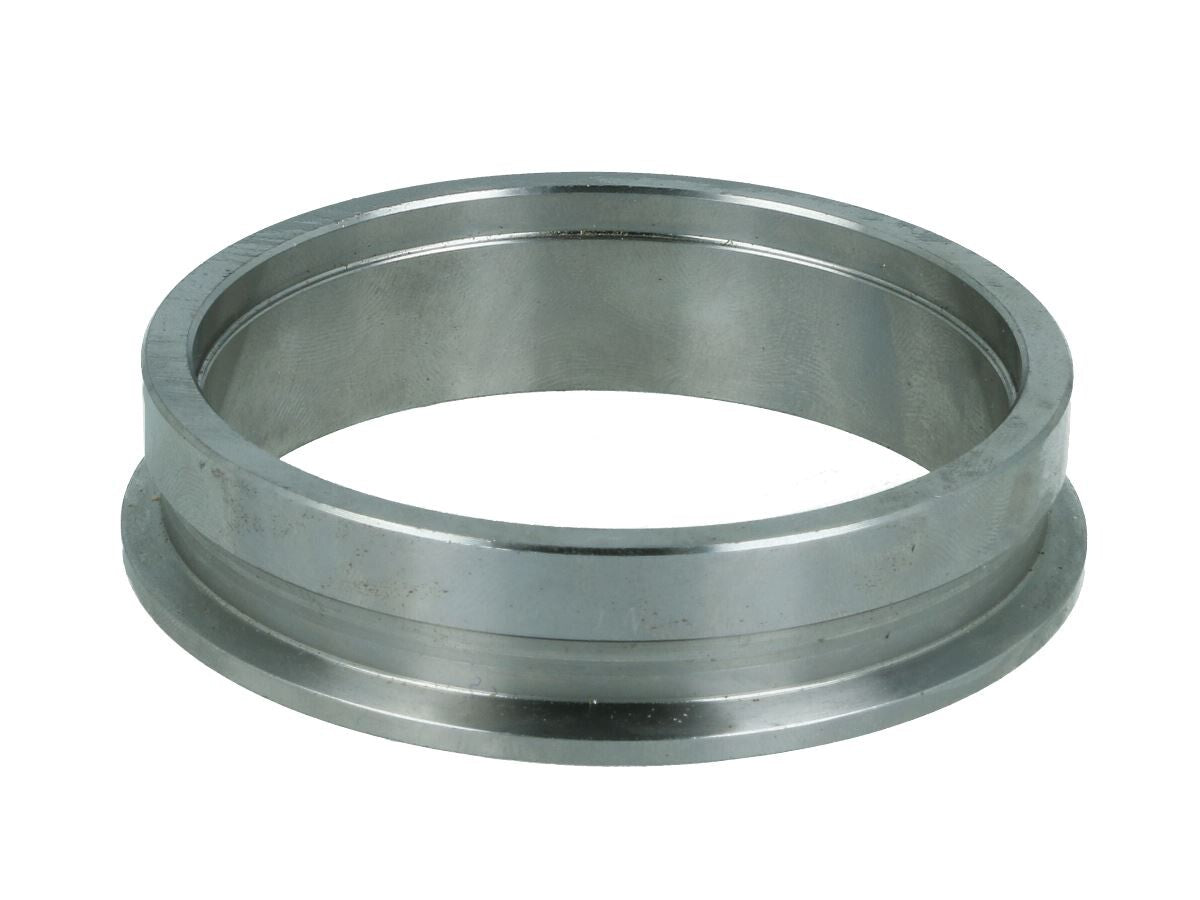

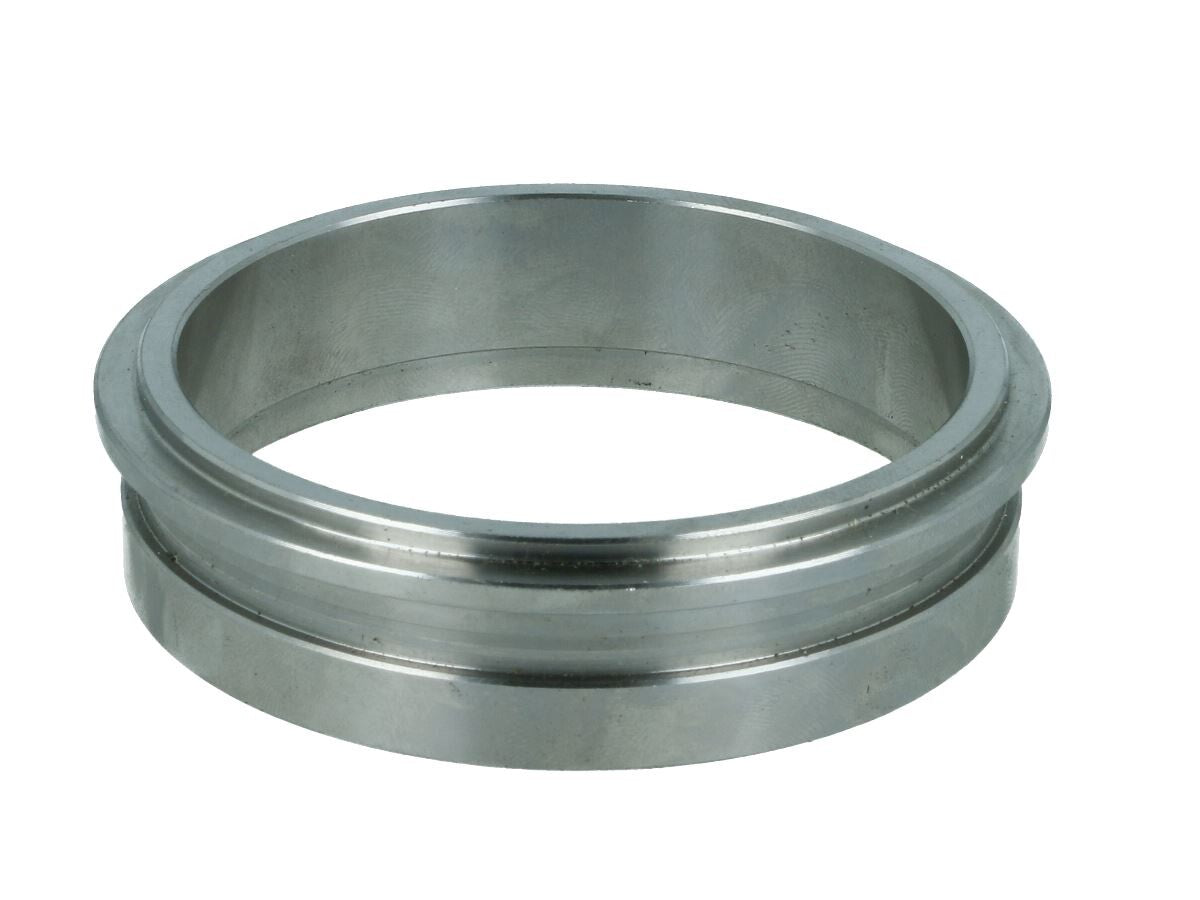

High-quality downpipe V-Band flange (outlet) 76mm (3.0"). fits for Garrett GTW3684(R) and GTW3884(R) turbine housings. This V-Band ring is required if you like to connect a downpipe with an original Garrett GTW exhaust housing. The V-Band flange will be welded to the end of the downpipe and then clamped with the turbine housing (see list of housings applications below) using our stainless steel V-Band clamp (446397-0364). This V-Band ring is CNC maschined and very good weldability.

Garrett item number: 774175-0001

Application: Turbine housing outlet to downpipe connection

Material: Steel

Fits fo turbine housings (outlet / downpipe side):
GTW3684 -844669-0005
GTW3684 -844669-0006
GTW3684 -844669-0007

GTW3884R -844669-0010
GTW3884 -844669-0010

Fits for Super Core turbocharger (outlet / downpipe side):
GTW3684R -841297-5002S
GTW3684 -841691-5002S

GTW3884R -841297-5008S
GTW3884R -841297-5009S
GTW3884R -841297-5010S
GTW3884 -841691-5012S
GTW3884 -841691-5013S
GTW3884 -841691-5014S

Feel free to contact us at support@ducocarparts.co.uk should you wish to double check!

To ensure the part(s) you have ordered fits your vehicle. we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.

TURBOZENTRUM-119794

Manufactured by

TurboZentrum
