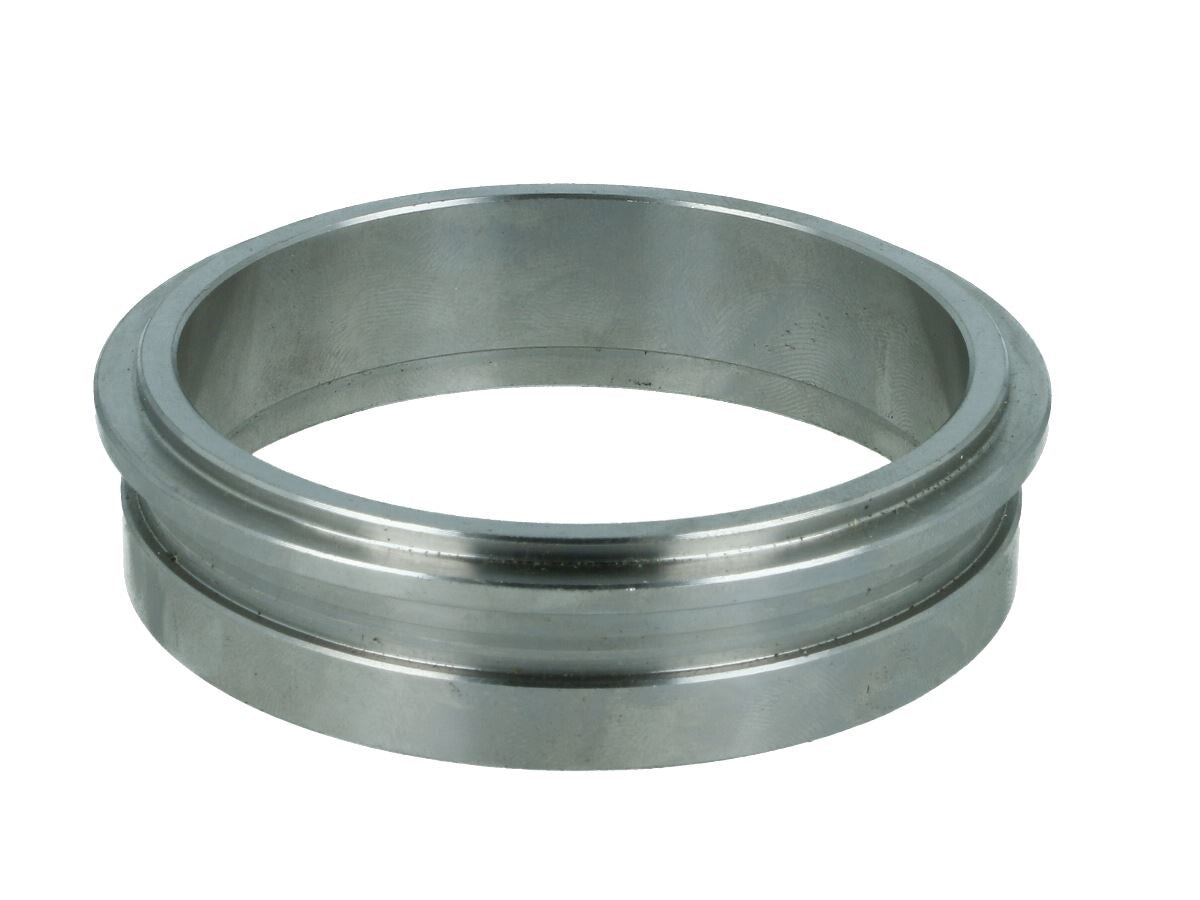

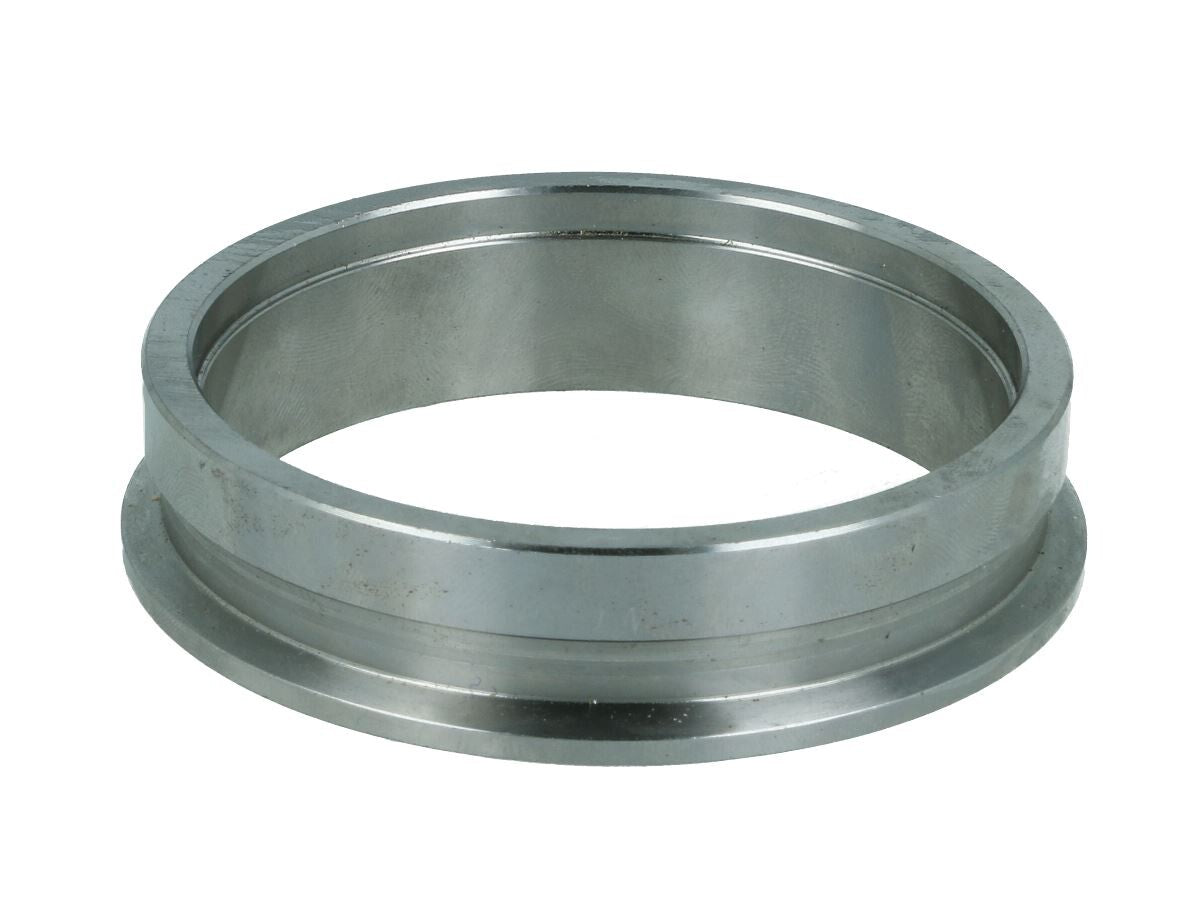

V-Band Flange (Outlet) G25 / G30 / G35 Turbine Housings

Downpipe Flange for Garrett V-Band Ni-Resist Turbine Housings

V-Band Flange fits for G25-550 / G25-660 / G30-660 / G30-770 / G30-900 / G35-900 / G35-1050 Exhaust Housings

High-quality downpipe V-Band flange (outlet) 76mm (3.0"). fits for Garrett G25-550 / G25-660 / G30-660 / G30-770 / G30-900 / G35-900 / G35-1050 single scroll V-Band tubrine housings. This V-Band ring is required if you like to connect a downpipe with an original Garrett V-Band Ni-resist exhaust housing. The V-Band flange will be welded to the end of the downpipe and then clamped with the turbine housing (see list of housings applications below) using our stainless steel V-Band clamp (446397-0364). This V-Band ring is CNC maschined and very good weldability.

Garrett item number: 774175-0001

Application: Turbine housing outlet to downpipe connection

Material: Steel

Fits fo turbine housings (outlet / downpipe side):
G25-550 740902-0068
G25-550 740902-0069
G25-550 740902-0076
G25-550 740902-0077
G25-550 740902-0073 -Reverse
G25-550 740902-0074 -Reverse
G25-550 740902-0078 -Reverse
G25-550 740902-0079 -Reverse

G25-660 740902-0068
G25-660 740902-0069
G25-660 740902-0076
G25-660 740902-0077
G25-660 740902-0073 -Reverse
G25-660 740902-0074 -Reverse
G25-660 740902-0078 -Reverse
G25-660 740902-0079 -Reverse

G35 740902-0102
G35 740902-0103
G35 740902-0104
G35 740902-0105

G35 740902-0012 -Reverse
G35 740902-0012 -Reverse
G35 740902-0013 -Reverse
G35 740902-0014 -Reverse

Fits for turbocharger (outlet / downpipe side):
G25-550 871389-5002
G25-550 871389-5003
G25-550 871389-5004
G25-550 871389-5005
G25-550 871390-5002 -Reverse
G25-550 871390-5003 -Reverse
G25-550 871390-5004 -Reverse
G25-550 871390-5005 -Reverse

G25-660 871389-5008
G25-660 871389-5009
G25-660 871389-5010
G25-660 871389-5011
G25-660 871390-5008 -Reverse
G25-660 871390-5009 -Reverse
G25-660 871390-5010 -Reverse
G25-660 871390-5011 -Reverse

G30-660 880697-5001
G30-660 880697-5002
G30-770 880697-5008
G30-770 880697-5009
G30-660 880698-5001 -Reverse
G30-660 880698-5002 -Reverse
G30-770 880698-5007 -Reverse
G30-770 880698-5008 -Reverse

G30-900 880697-5015
G30-900 880697-5016
G30-900 880697-5017
G30-900 880697-5018
G30-900 880698-5013 -Reverse
G30-900 880698-5014 -Reverse
G30-900 880698-5015 -Reverse
G30-900 880698-5016 -Reverse

G35-900 880700-5001
G35-900 880700-5002
G35-900 880700-5003
G35-900 880700-5004
G35-900 880701-5001 -Reverse
G35-900 880701-5002 -Reverse
G35-900 880701-5003 -Reverse
G35-900 880701-5004 -Reverse

G35-1050 880700-5008
G35-1050 880700-5009
G35-1050 880700-5010
G35-1050 880700-50011S
G35-1050 880700-5007 -Reverse
G35-1050 880700-5008 -Reverse
G35-1050 880700-5009 -Reverse
G35-1050 880700-5010 -Reverse



  • Usage: Turbocharger to Downpipe
  • Flange type: V-Band
  • Product Type: V-Band
  • Availability: order on customer request
  • Turbocharger: G25-550G25-660G30-770G35-1050G35-900
  • Model: single flange

    •

    Feel free to contact us at support@ducocarparts.co.uk should you wish to double check!



    To ensure the part(s) you have ordered fits your vehicle. we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.
