K04 turbocharger outlet to hose connection

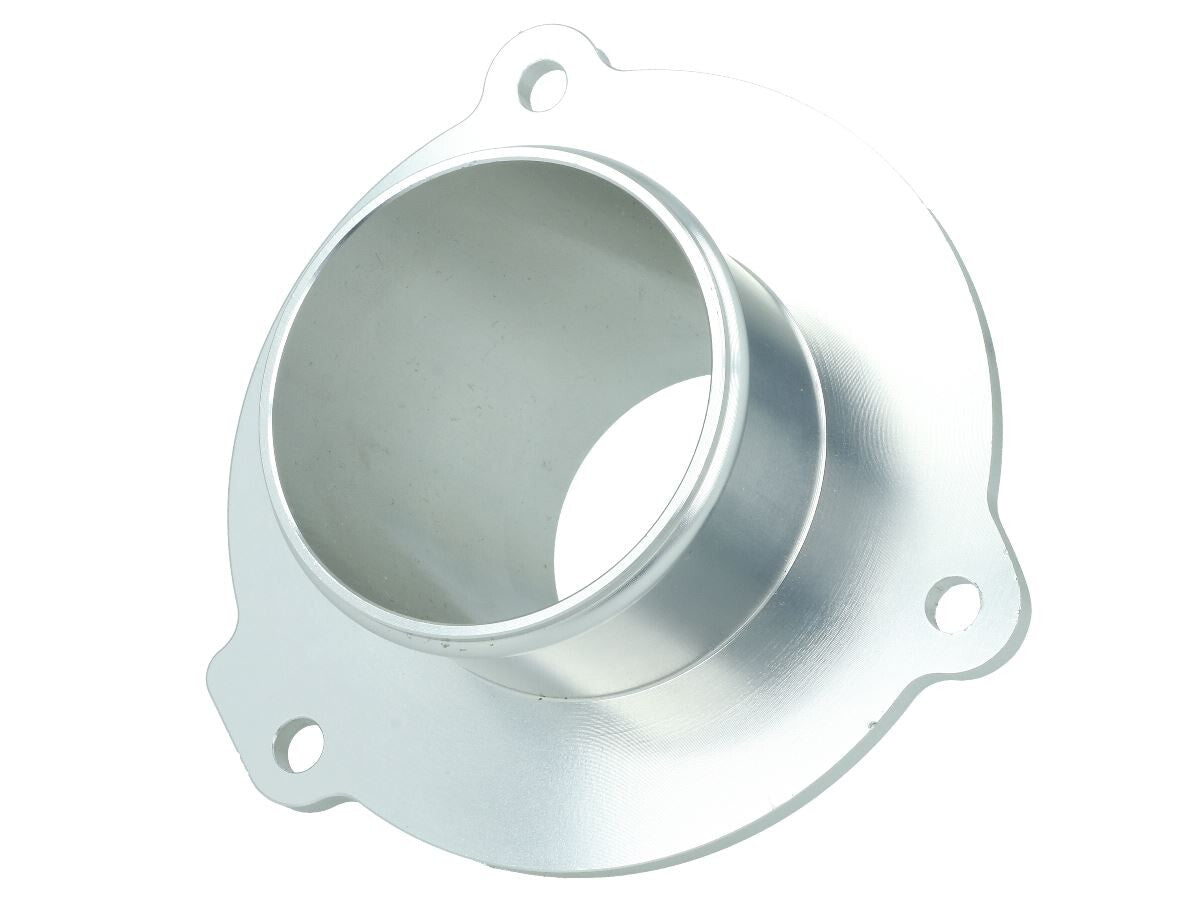

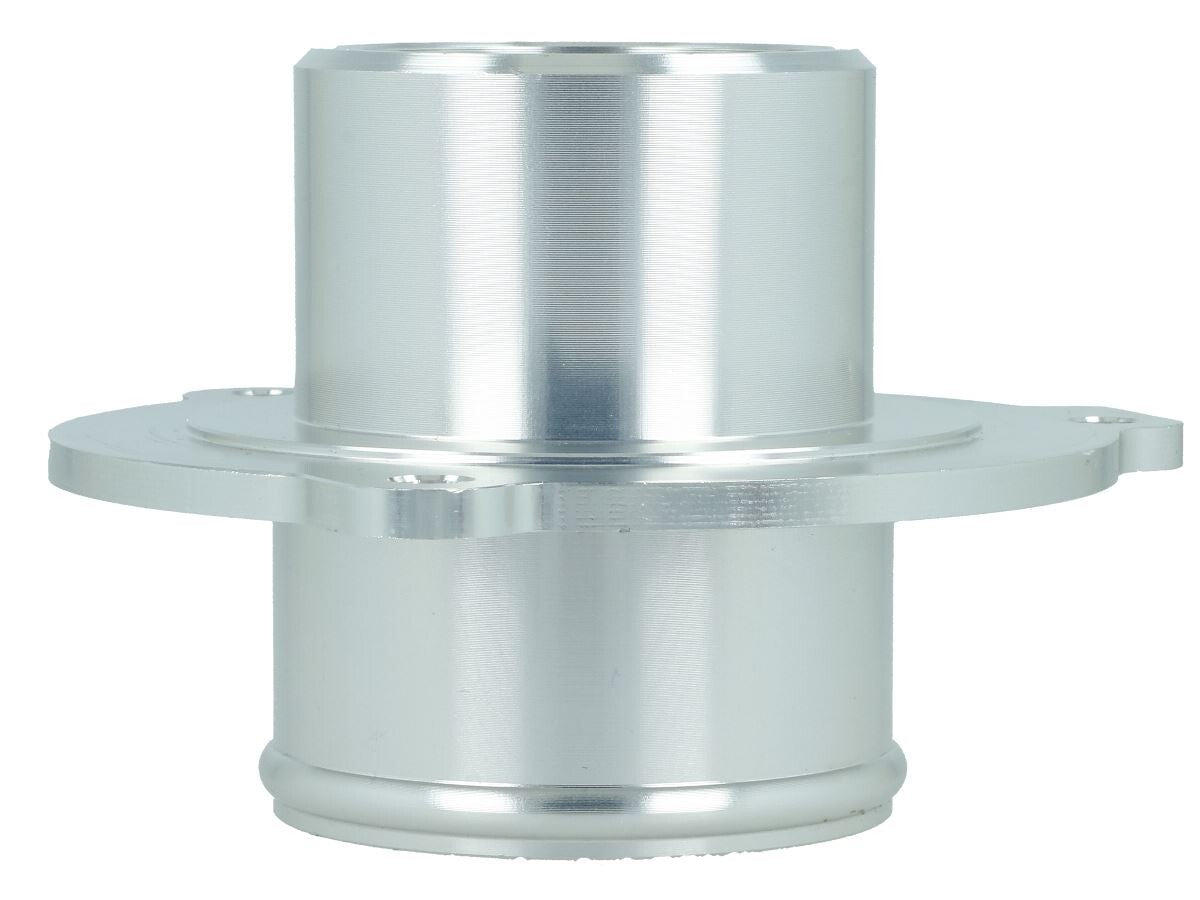

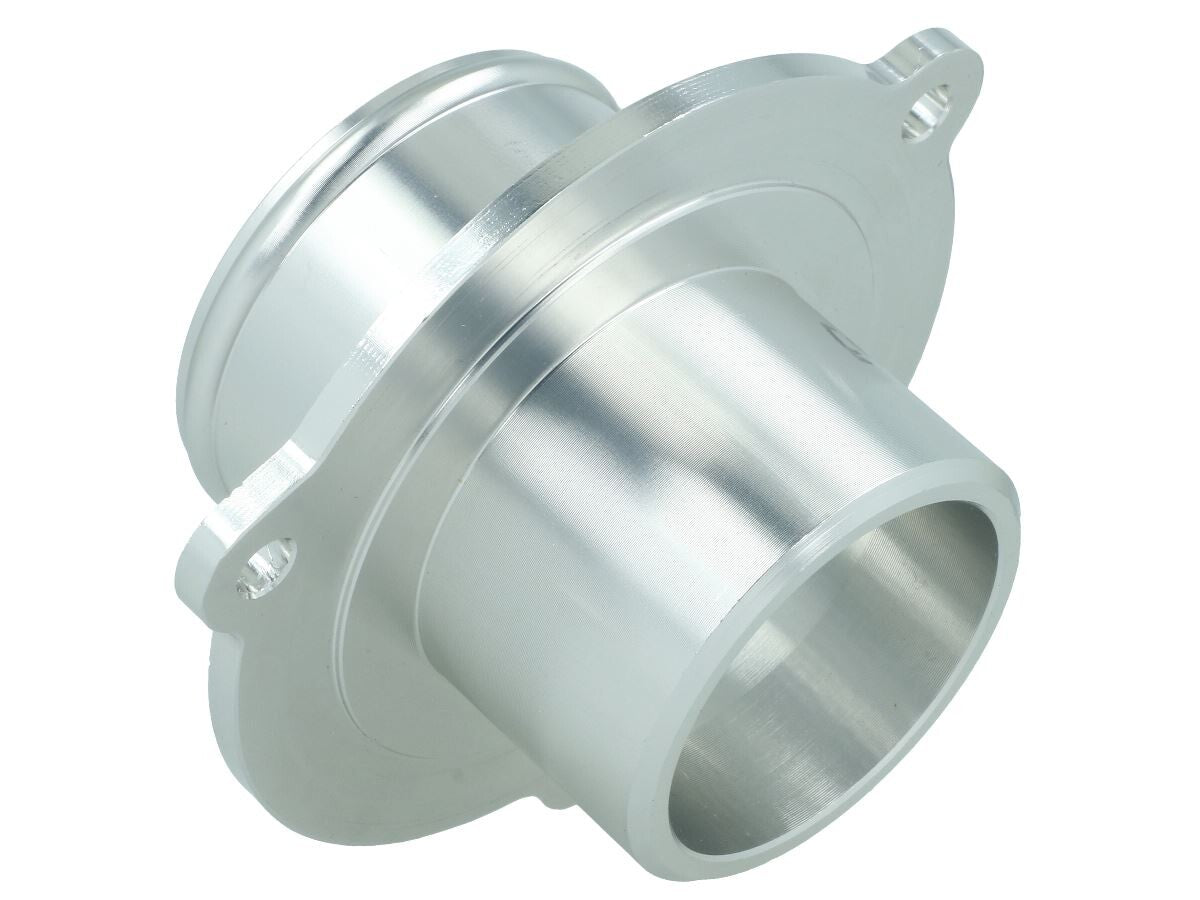

K04-064 outlet flange with 57mm hose connection

Fits for 53049880064 K04 turbocharger. equipped in different AUDI. VW. Seat

Our aluminum K04 silencer replacement flange. specifically designed for the 2.0 (TSI/TFSI) EA113 engines. This produces a louder "turbo spool-up" noise and a faster response. The adapter replaces the existing silencer at the compressor outlet of the K04-064 turbocharger and allows the conversion to a 57mm silicone hose connection. This is then considerably more pressure-stable and thus optimally suited for performance increases and the construction of an own intercooler piping. It also replaces the susceptible OEM click connection (OE 06H131111).

Fits various Audi. Seat. Skoda. VW with K04-064 turbochargers such as:
AUDI A3 / S3 (8P) 2.0 TFSI
AUDI TT / TTS (8J) 2.0 TFSI

SEAT Leon (1P) Cupra R 2.0 TFSI

VW Golf 5 GTI Edition 30 2.0 TFSI
VW Golf 6 GTI Edition 35 2.0 TFSI
VW Golf 6 R 2.0 TFSI
VW Scirocco R 2.0 TFSI

Details:
-Suitable for BorgWarner 5304-988-0064 Turbocharger
-Produced from high-strength aluminum
-Plug & Play installation
-Replaces the OE silencer
-Optimizes flow behavior

Inside diameter: 52mm
Hose connection : 57mm
Total height: 70mm

Feel free to contact us at support@ducocarparts.co.uk should you wish to double check!

To ensure the part(s) you have ordered fits your vehicle. we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.
