Turbozentrum 119315 4-Cyl. CNC stainless steel V-Band collector for TiAL GT28R / GT30R / GT35R - with 38mm Wastegate port

Turbozentrum 119315 4-Cyl. CNC stainless steel V-Band collector for TiAL GT28R / GT30R / GT35R - with 38mm Wastegate port

£337.34 GBP
£347.78 GBP £337.34 GBP
Inc. VAT
Sale Sold out
Pop-up link text

In Stock & ready for next working day delivery

Estimated lead time 2-3 working days. Subject to availability.

Get the best deal with Duco's Price Match Policy

View full details

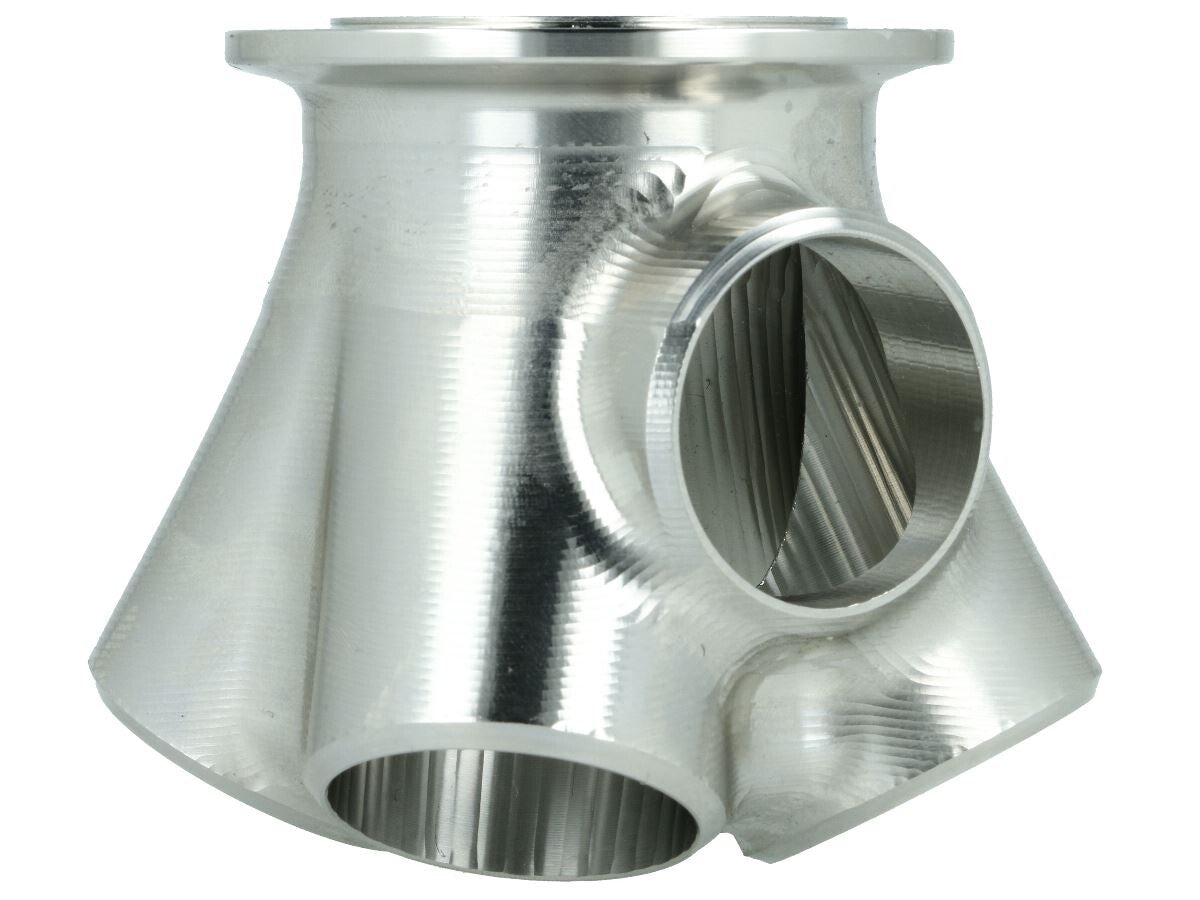

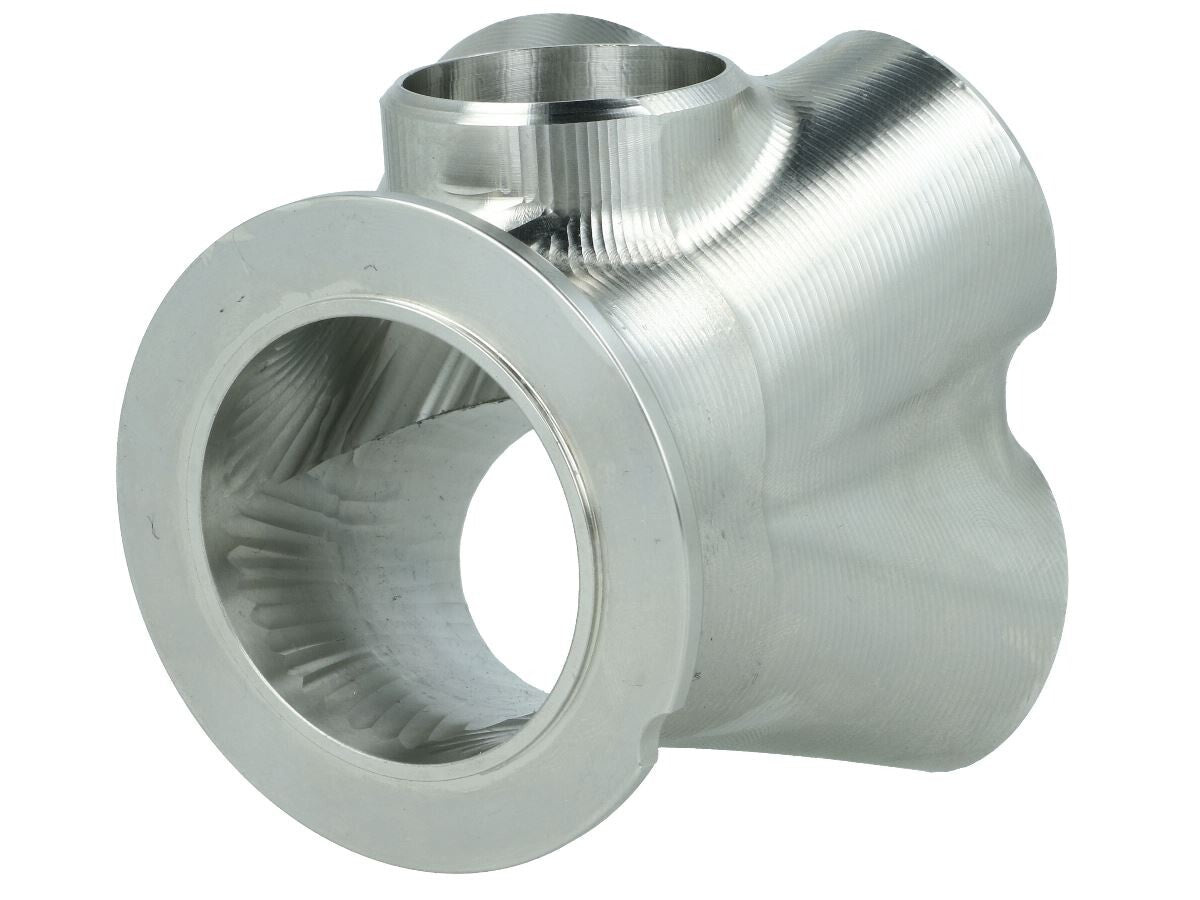

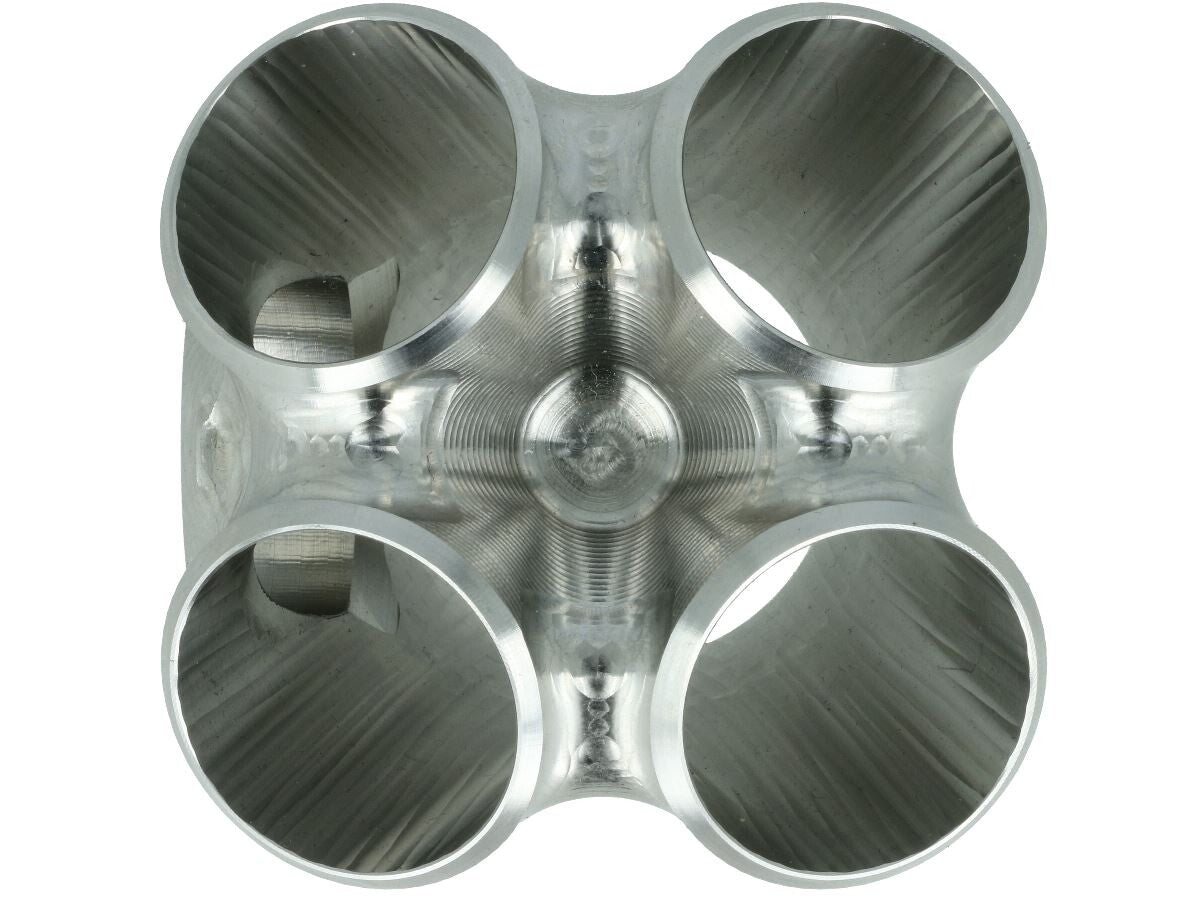

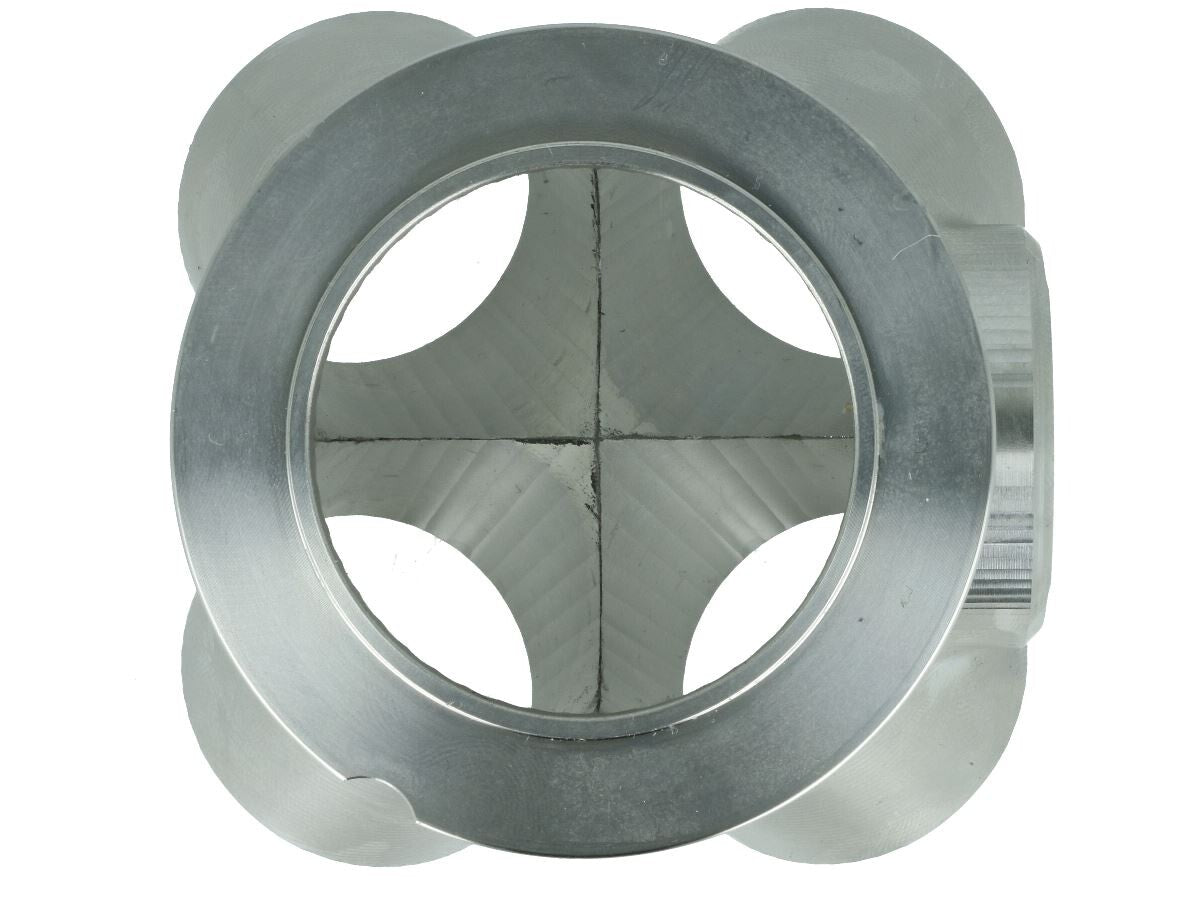

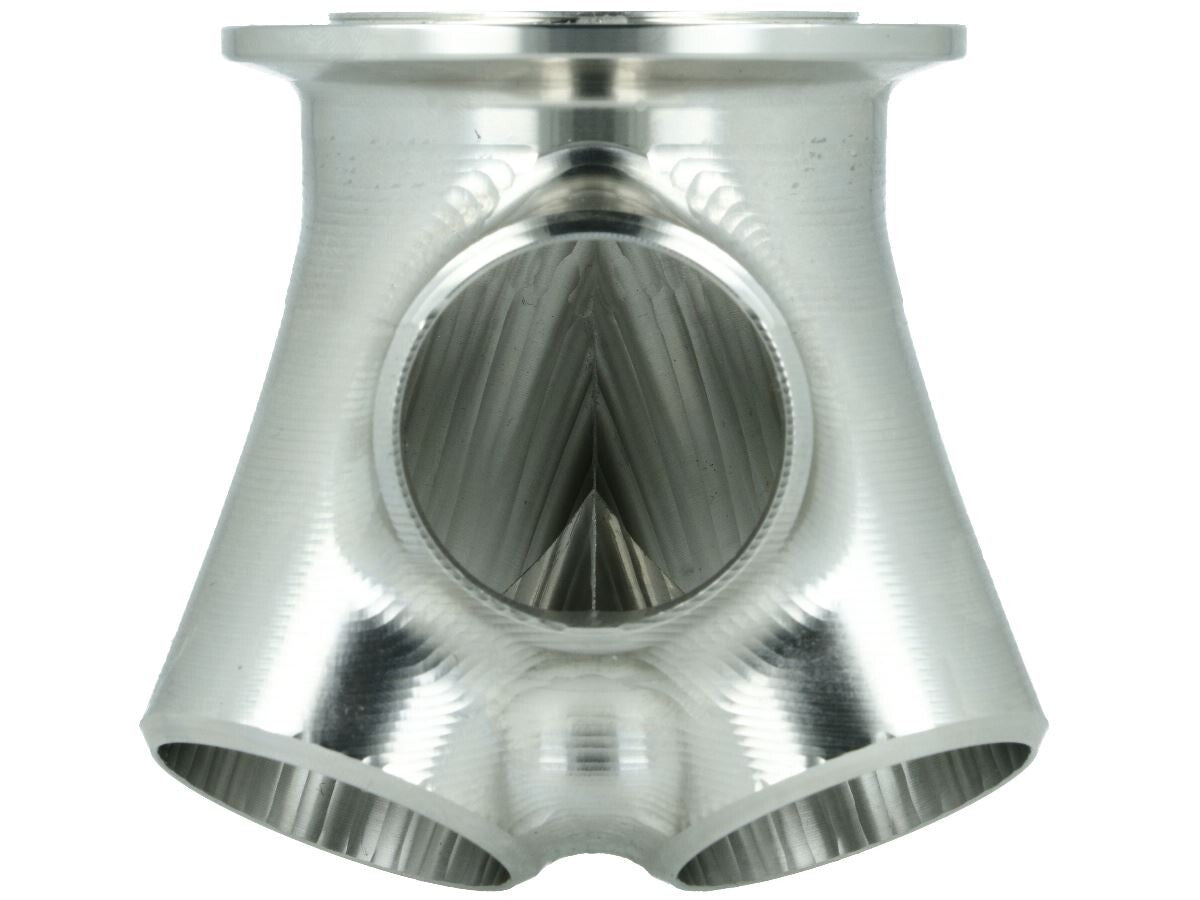

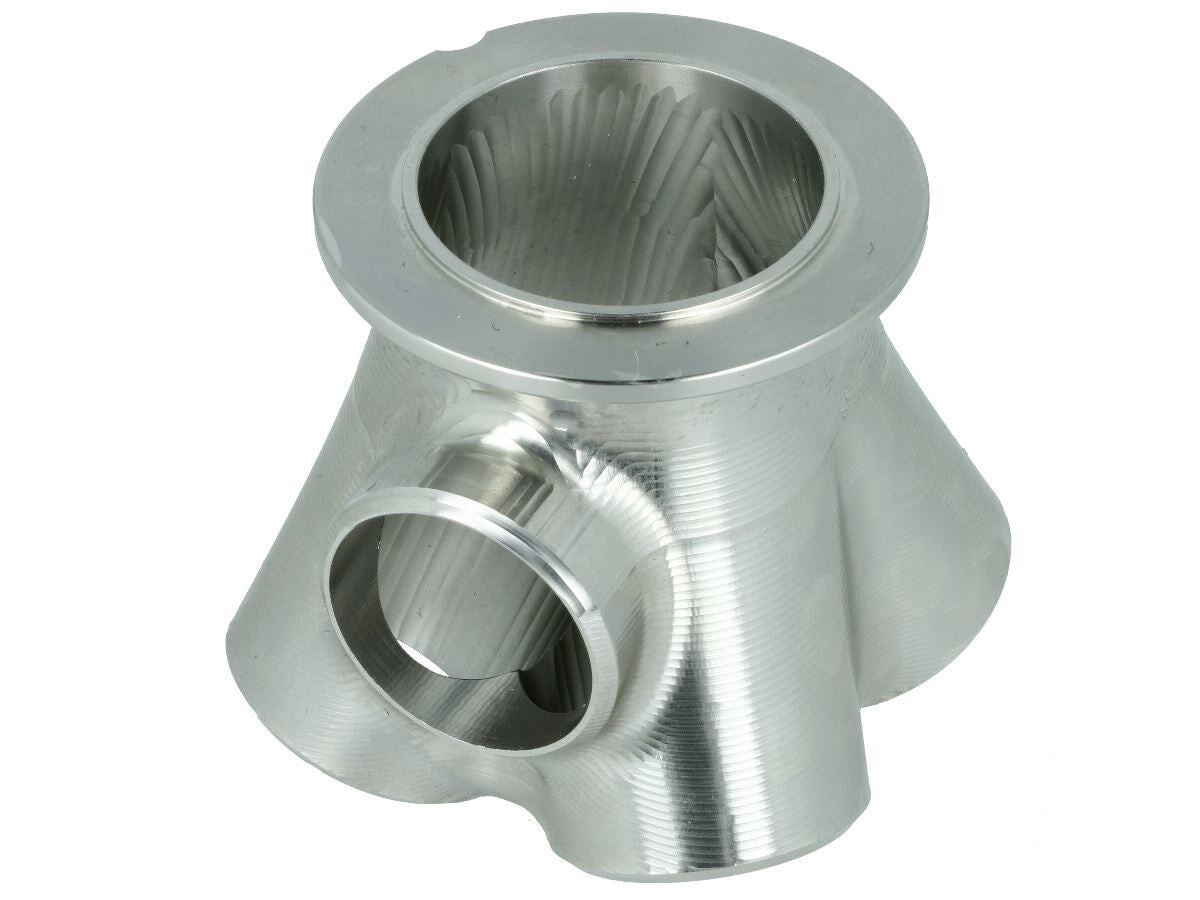

4-Cyl. V-Band Collector for TiAL GT28 -GT35R

CNC machined turbo manifold collector with 38mm Wastegate port

Turbo collector fully milled from stainless steel

Now available at TurboZentrum! Full CNC machined stainless steel turbo manifold collectors. Perfect for turbo manifolds to achieve maximum performance! A milled turbo collector offers unbeatable advantages:

-For manifold manufacturer: The manifold collector is always exactly the same. providing a 100% accurate repeatability in one gauge manufacturing. This was not always possible with welded collectors due to tolerances and distortion during welding.
-For maximum performance: Because the turbo collector is machined from one block of CNC. there are no swirling edges. chamfers or steps that can negatively impact flow behavior.
-For long durability: These stainless steel manifold turbo collectors can not tear because of their one-piece manufacturing. Thus. a long durability is guaranteed even under heavy weight turbochargers. downpipes and exhaust systems.

Suitable for:
4-cylinder manifolds and turbocharger with non divided (single-scroll) V-Band flange turbine housing and external 38mm wastegate. for example V-Band inlet turbine housings for TiAL turbine housings:
TiAL GT28R / GT2871R
TiAL GTX3071R GEN I and GEN II
TiAL GTX3076R GEN I and GEN II
TiAL GTX3576R GEN I and GEN II
TiAL GTX3582R GEN I and GEN II

Technical data:
Diameter WG-port pipe: approx. 36.8mm inside. 42.4mm outside
Inside diameter collector pipes: approx. 36.8mm
Outer diameter collector pipes: approx. 42.4mm
Length Collector: approx. 98mm (largest passage)
Outer diameter collector: approx. 116mm (widest section)



  • Usage: Manifold to turbocharger
  • Component: connectors
  • Flange type: V-Band
  • Availability: order on customer request
  • Material: Stainless Steel
  • Diameter: 42mm

    •

    Feel free to contact us at support@ducocarparts.co.uk should you wish to double check!



    To ensure the part(s) you have ordered fits your vehicle. we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.



    TURBOZENTRUM-119315
