Turbozentrum 119312 4-Cyl. CNC stainless steel V-Band collector for Garrett GTX30 / GTX35 / G25 / G30 / G35 - with 38mm Wastegate port

Turbozentrum 119312 4-Cyl. CNC stainless steel V-Band collector for Garrett GTX30 / GTX35 / G25 / G30 / G35 - with 38mm Wastegate port

£363.57 GBP
£374.81 GBP £363.57 GBP
Inc. VAT
Sale Sold out
Pop-up link text

In Stock & ready for next working day delivery

Estimated lead time 2-3 working days. Subject to availability.

Get the best deal with Duco's Price Match Policy

View full details

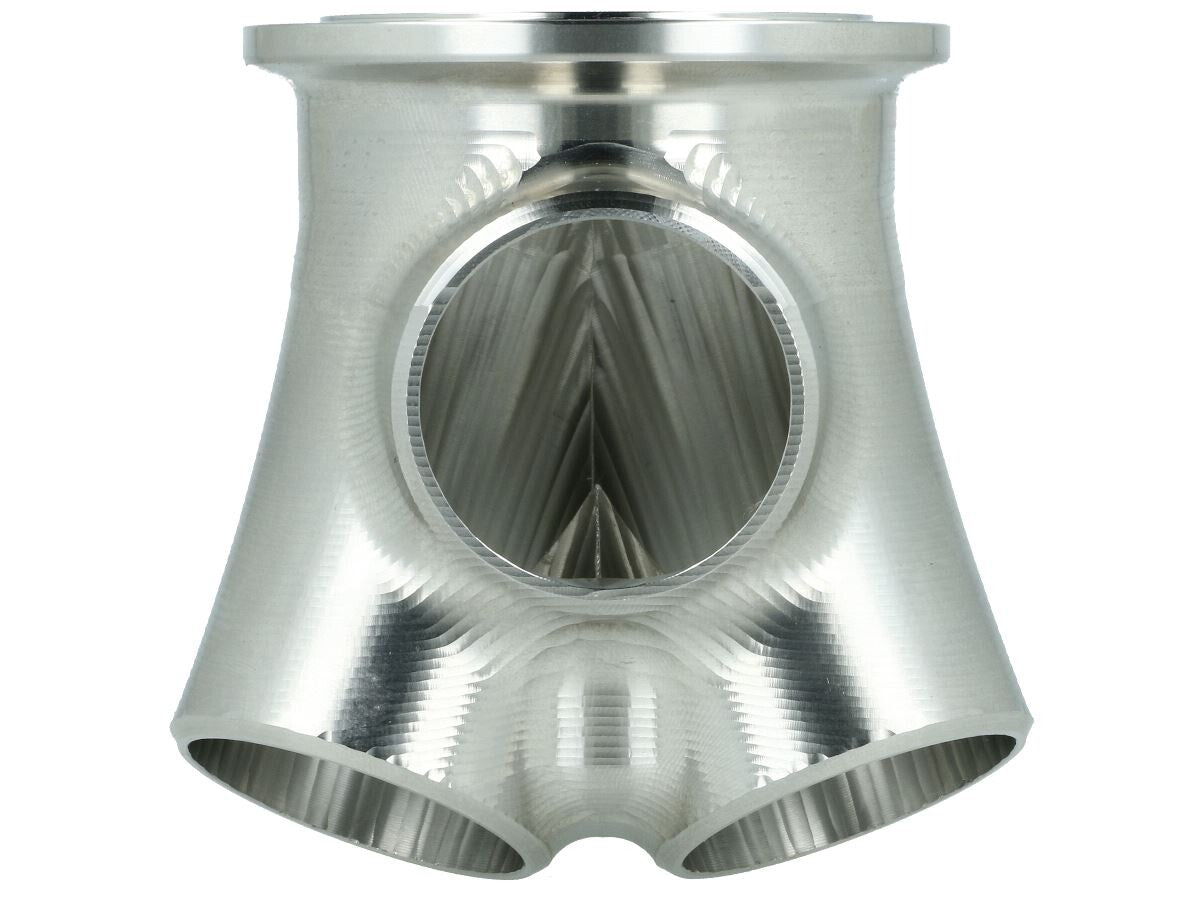

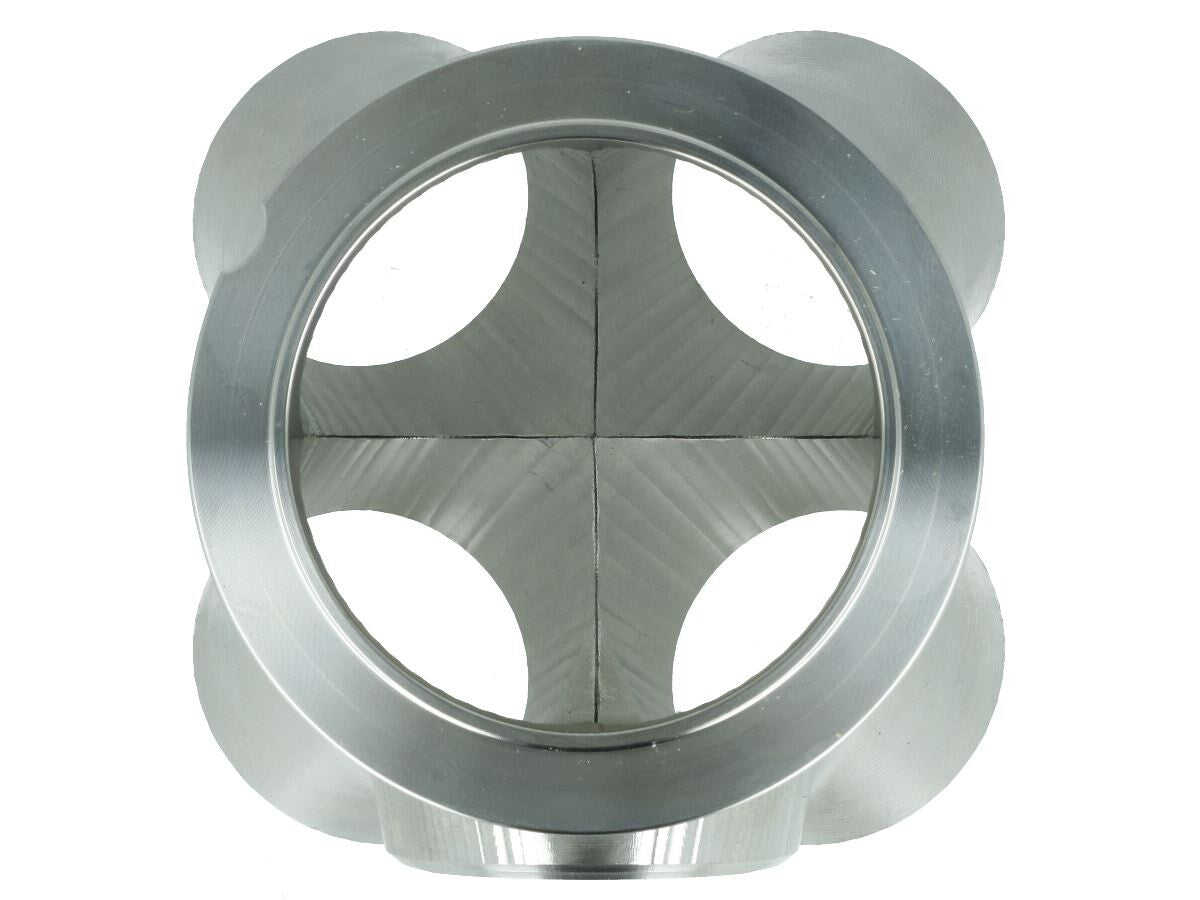

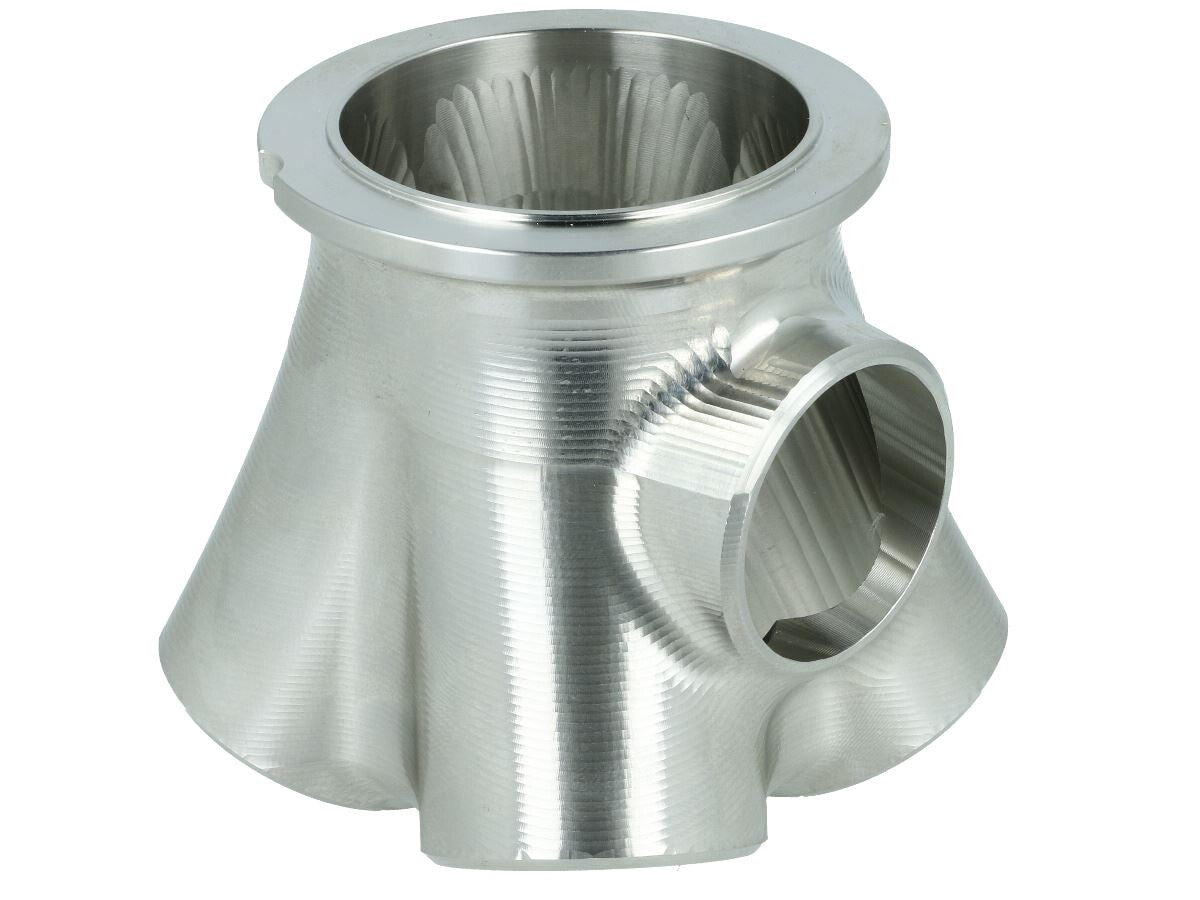

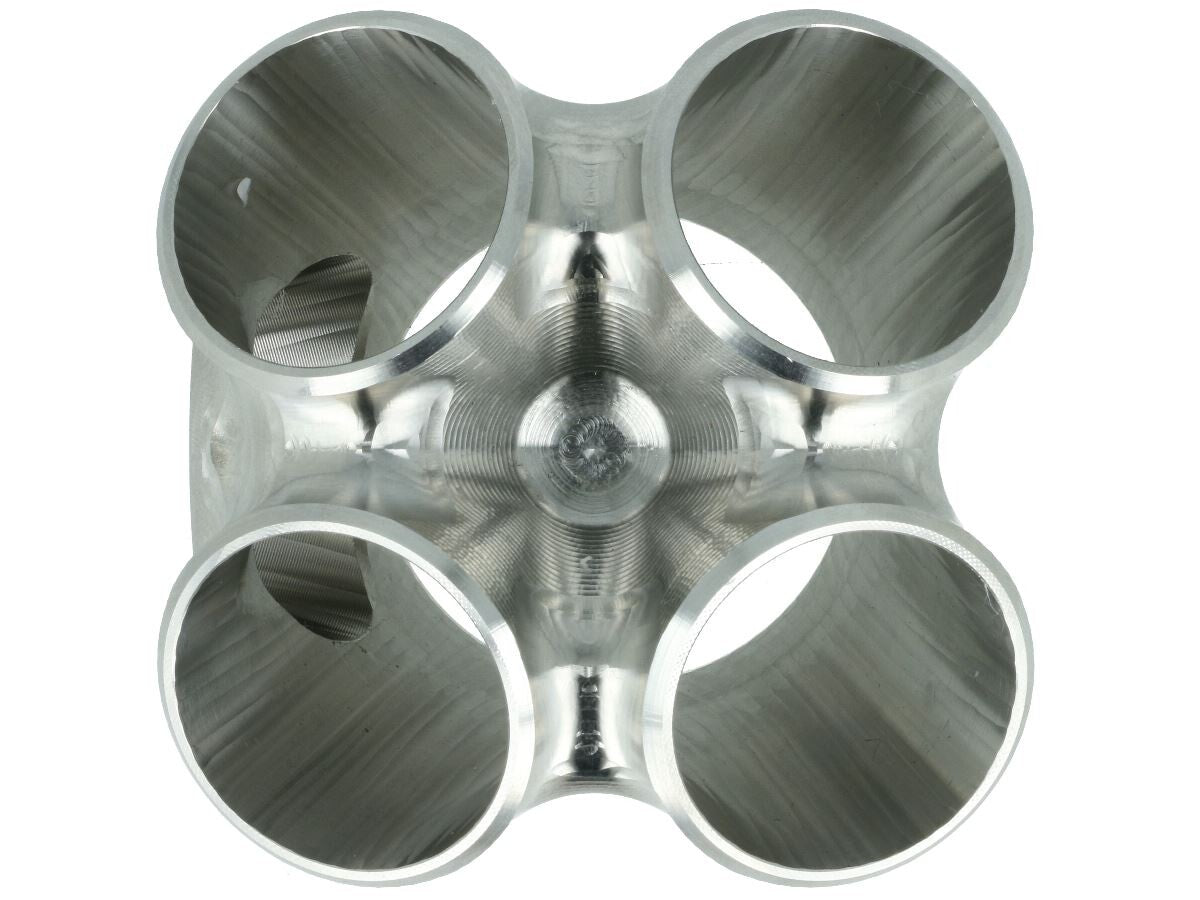

4-Cyl. V-Band Collector with 38mm Wastegate Port

CNC machined turbo manifold collector

Turbo collector fully milled from stainless steel

Now available at TurboZentrum! Full CNC machined stainless steel turbo manifold collectors. Perfect for turbo manifolds to achieve maximum performance! A milled turbo collector offers unbeatable advantages:

-For manifold manufacturer: The manifold collector is always exactly the same. providing a 100% accurate repeatability in one gauge manufacturing. This was not always possible with welded collectors due to tolerances and distortion during welding.
-For maximum performance: Because the turbo collector is machined from one block of CNC. there are no swirling edges. chamfers or steps that can negatively impact flow behavior.
-For long durability: These stainless steel manifold turbo collectors can not tear because of their one-piece manufacturing. Thus. a long durability is guaranteed even under heavy weight turbochargers. downpipes and exhaust systems.

Suitable for:
4-cylinder manifolds and turbocharger with non divided (single-scroll) V-Band flange turbine housing and external 38mm wastegate. for example V-Band inlet turbine housings for Garrett GT / GTX / GTX / GEN1 and GEN2 turbos:

Garrett GTX29 GEN I
Garrett GTX3071 GEN I and Gen II
Garrett GTX3076 GEN I and Gen II
Garrett GTX3576 GEN I and Gen II
Garrett GTX3582 GEN I and Gen II

Garrett G25-550
Garrett G25-660

Garrett G30-660
Garrett G30-770
Garrett G30-900

Garrett G35-900
Garrett G35-1050

Technical data:
Diameter WG-port pipe: approx. 36.8mm inside. 42.4mm outside
Inside diameter collector pipes: approx. 36.8mm
Outer diameter collector pipes: approx. 42.4mm
Length Collector: approx. 98mm (largest passage)
Outer diameter collector: approx. 116mm (widest section)



  • Usage: Manifold to turbocharger
  • Component: connectors
  • Flange type: V-Band
  • Availability: order on customer request
  • Material: Stainless Steel
  • Diameter: 42mm

    •

    Feel free to contact us at support@ducocarparts.co.uk should you wish to double check!



    To ensure the part(s) you have ordered fits your vehicle. we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.
