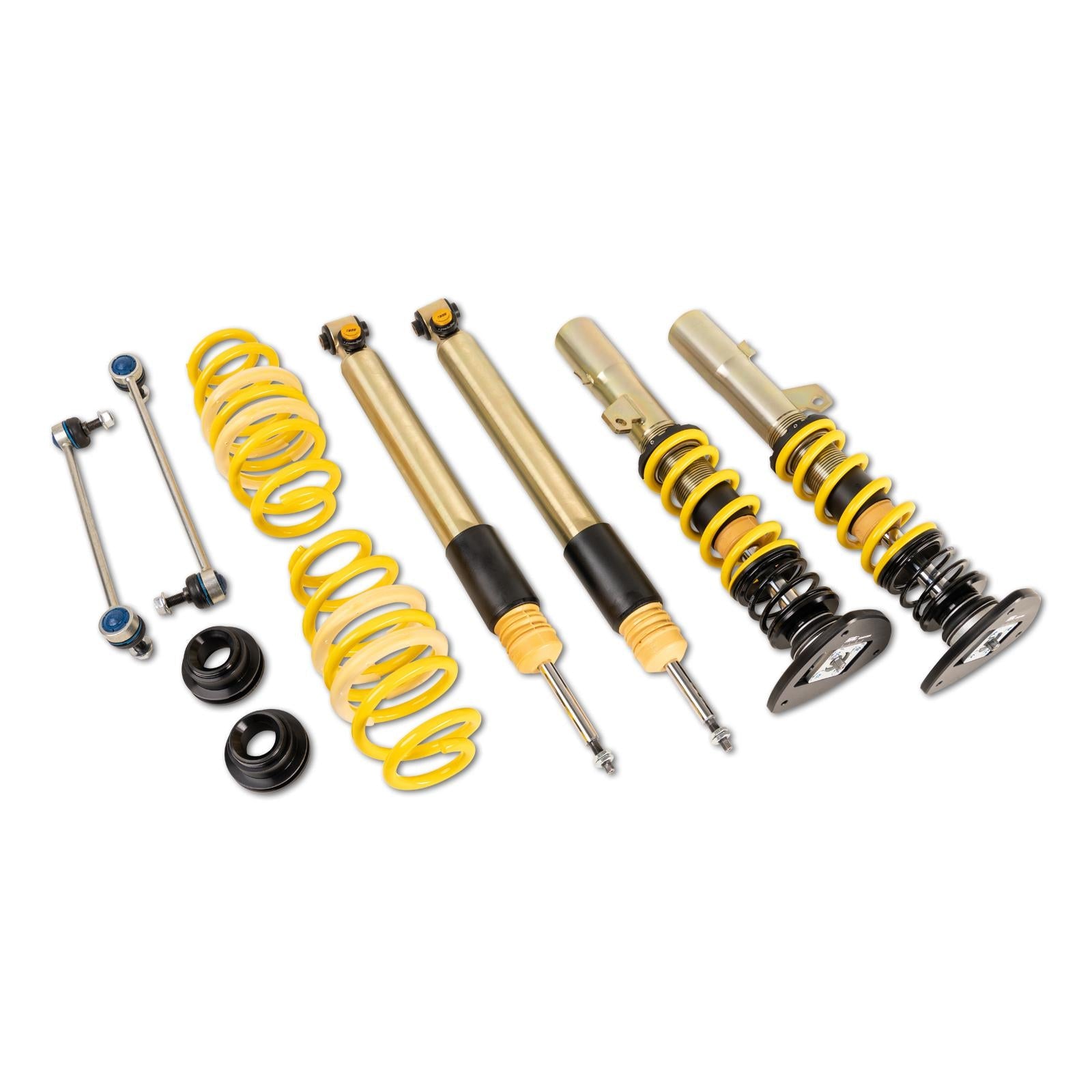

ST Suspension BMW F20 F23 F30 F36 XTA plus 3 Adjustable Coilover Kit (Inc. 125i, 225d, 335i & 440i)

ST Suspension BMW F20 F23 F30 F36 XTA plus 3 Adjustable Coilover Kit (Inc. 125i, 225d, 335i & 440i)

£2,196.81 GBP
£2,196.81 GBP £2,196.81 GBP
Inc. VAT
Sale Sold out
Electronic Damping Control

By placing an order for this item, you agree that this item is a special-order product and is not eligible for refunds or exchanges once the order has been placed.
Pop-up link text

In Stock & ready for next working day delivery

Estimated lead time 2-3 working days. Subject to availability.

Get the best deal with Duco's Price Match Policy

View full details

ST XTA plus 3 COILOVERS

The XTA plus 3 coilover kit gives your car maximum performance for the road and the tools you need for any challenge.

From the factory, the XTA plus 3 coilover kit is equipped with KW dampers that are adjustable in high- and lowspeed compression as well as adjustable rebound damping. With 24 clicks of adjustment for each, high speed and low speed compression damping and 18 clicks of rebound adjustment, your suspension knows no limits. It doesn’t matter if you bolt in an aftermarket roll cage, weld in a cage, modification to PU bushings upgrade to spherical bushing or changed wheel loads – the XTA plus 3 coilover has what it takes to keep your car dialed! Of course, the XTA plus 3 also includes a parts approval certificate, race springs and aluminium unibal top mounts.



Easy lowering adjustment

Like all ST coilovers the lowering adjustment is made via a continuous thread on the galvanized strut. This even allows the lowering to be made even when the kit is installed by turning the spring plate higher or lower! NOTE: The lowering of each vehicle differs greatly with ST XTA plus 3 coilovers due to the type of construction.



KW Engineering: Exclusive for ST suspension

The high-quality ST XTA plus 3 coilover is based on the twin-tube damping principle of low friction combined with pressure-resistant damper housings. Manufactured directly at KW, a mono block guide and seal package reduces the friction of the damper as well as protecting it against corrosion and dirt. Each galvanized strut is sealed multiple times to ensure maximum longevity in ALL weather conditions.



  • Latest damping technology for maximum longevity
  • Reduced system friction for effective damping adjustment
  • Individual lowering within the tested adjustment range
  • Front and rear axle (when possible) with thread adjustment
  • Galvanized coilover struts with additional coating for an optimized corrosion protection
  • Complete solution with adjustable spring plate, race spring system and bumpers with dust protection
  • Aluminium adjustable uniball top mounts (when possible)
  • Scaled camber adjustment (optionally also caster), when possible
  • 3-way adjustable dampers:
  • 18 clicks low speed rebound damping
  • 24 clicks low speed compression damping
  • 24 clicks high speed compression damping



      • 1' F20   (07/2010 — 02/2015)
        • 114d, 114i, 116d, 116d ed, 116i, 118d, 118dx, 118i, 120d, 1120dx, 125d, 125i, M135i & M135ix
      • 1' F20 LCI   (05/2014 — 06/2019)
        • 114d, 116d, 116d ed, 116i, 118d, 118dx, 118i, 120d, 120dx, 120i, 125d, 125i, M135i, M135ix, M140i & M140ix
      • 1' F21   (07/2010 — 02/2015)
        • 114d, 114i, 116d, 116d ed, 116i, 118d, 118dx, 118i, 120d, 120dx, 125d, 125i, M135i & M135ix
      • 1' F21 LCI   (05/2014 — 06/2019)
        • 114d, 116d, 116d ed, 116i, 118d, 118dx, 118i, 120d, 120dx, 120i, 125d, 125i, M135i, M135ix, M140i & M140ix
      • 2' F22   (10/2012 — 06/2017)
        • 218d, 218i, 220d, 220dx, 220i, 225d, 228i, 228ix, 230i, M235i, M235ix, M240i & M240ix
      • 2' F22 LCI   (09/2016 — 12/2019)
        • 218d, 218i, 220d, 220dx, 220i, 225d, 230i, 230ix, M240i & M240ix
      • 2' F23   (03/2014 — 06/2017)
        • 218d. 218i, 220d, 220i, 225d, 228i, 228ix, 230i, 230ix, M235i, M235ix, M240i & M240ix
      • 2' F23 LCI   (09/2016 — 12/2019)
        • 218d, 218i, 220d, 220i, 225d, 230i, 230ix, M240i & M240ix
      • 3' F30   (02/2011 — 07/2015)
        • 316d, 316i, 318d, 318dx, 320d, 320d ed, 320dx, 320i, 320i ed, 320ix, 325d, 328d, 328dx, 328i, 328ix, 330d, 330dx, 335dx, 335i, 335ix & Hybrid 3
      • 3' F30 LCI   (09/2014 — 10/2018)
        • 316d, 318d, 318dx, 318i, 320d, 320d ed, 320dx, 320i, 320ix, 325d, 328d, 328dx, 328i, 328ix, 330d, 330dx, 330e, 330i, 330ix, 335dx, 340i & 340ix
      • 3' F31   (07/2011 — 07/2015)
        • 316d, 316i, 318d, 318dx, 320d, 320dx, 320i, 320ix, 325d, 328dx, 328i, 328ix, 330d, 330dx, 335dx, 335i & 335ix
      • 3' F31 LCI   (09/2014 — 06/2019)
        • 316d, 318d, 318dx, 318i, 320d, 320d ed, 320dx, 320i, 320ix, 325d, 328dx, 328ix, 330d, 330dx, 330i, 330ix, 335dx, 340i & 340ix
      • 3' F34 GT   (07/2012 — 06/2016)
      • 3' F34 GT LCI   (09/2015 — 12/2019)
        • 4' F32   (11/2012 — 02/2017)
        • 4' F32 LCI   (05/2016 — 12/2019)
        • 4' F33   (03/2013 — 02/2017)
        • 4' F33 LCI   (05/2016 — 12/2019)
        • 4' F36 Gran Coupé   (07/2013 — 03/2017)
        • 4' F36 Gran Coupé LCI   (05/2016 — 12/2019)



          182022080D (2WD; Without Electronic Dampers)

          182022080E (2WD; With Electronic Dampers)



          Manufactured by

          ST Suspension



          Warranty

          Two years manufacturer warranty
