Developed on the basis of a request from a well-known rental vehicle company at the Nürburgring, Speed Engineering offer brake cooling for the rear axle of all BMW F models (except M models, also available!). When used on the track, the M-Sport and M-Performance brakes in particular have large temperature differences between the inner and outer side, which leads to uneven wear of the pads. Removing the anchor plate only helps to a limited extent. The air duct picks up the air under the camber handlebars with a funnel and guides it directly to the brake disc hub. Analogous to the front axle brake cooling, we use the turbine effect, which enormously increases the efficiency compared to solutions that only blow on the friction ring.

Therefore, this product is the ideal addition to one of our VA cooling systems, or an existing solution.

Important: The anchor plate must be dismantled!

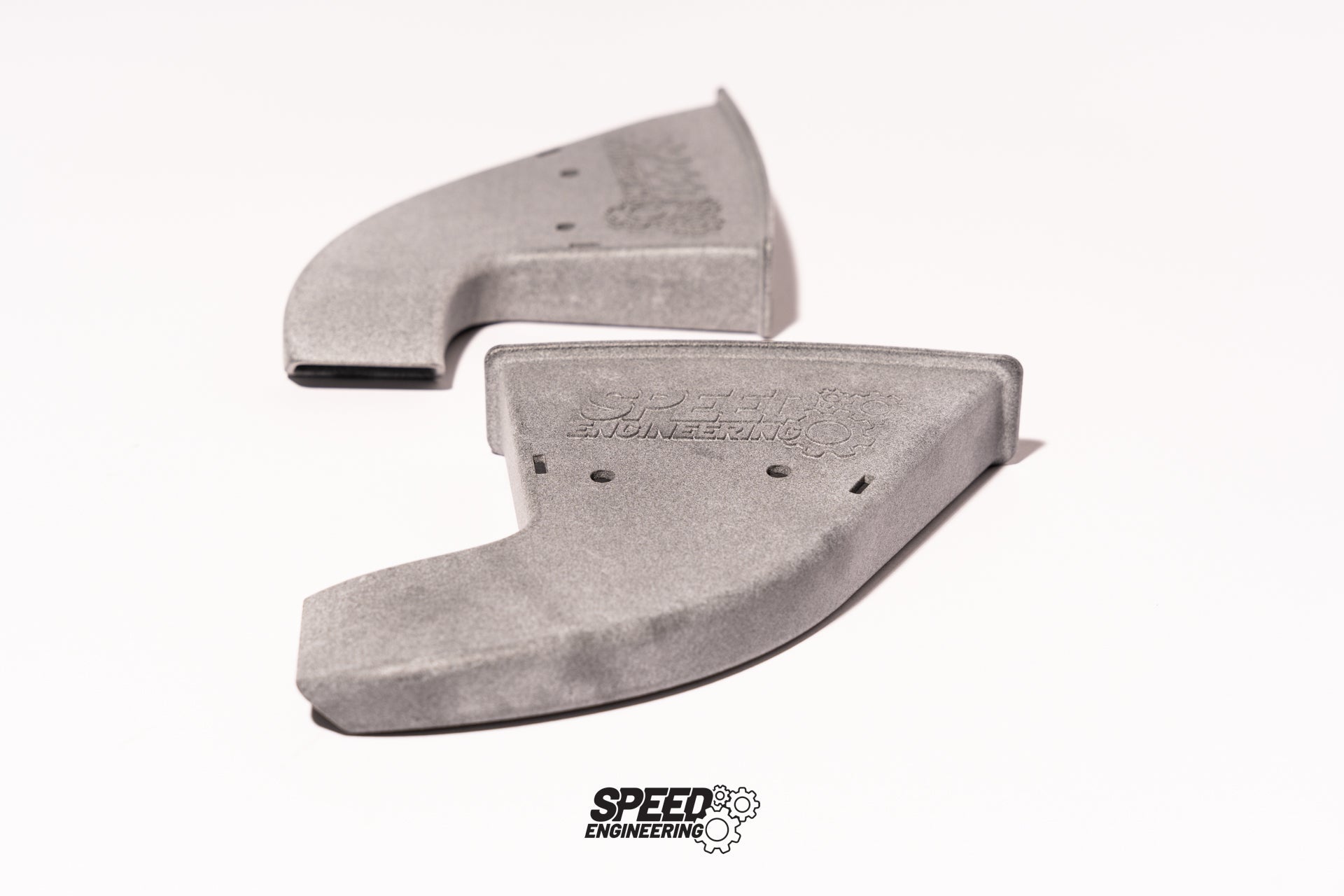

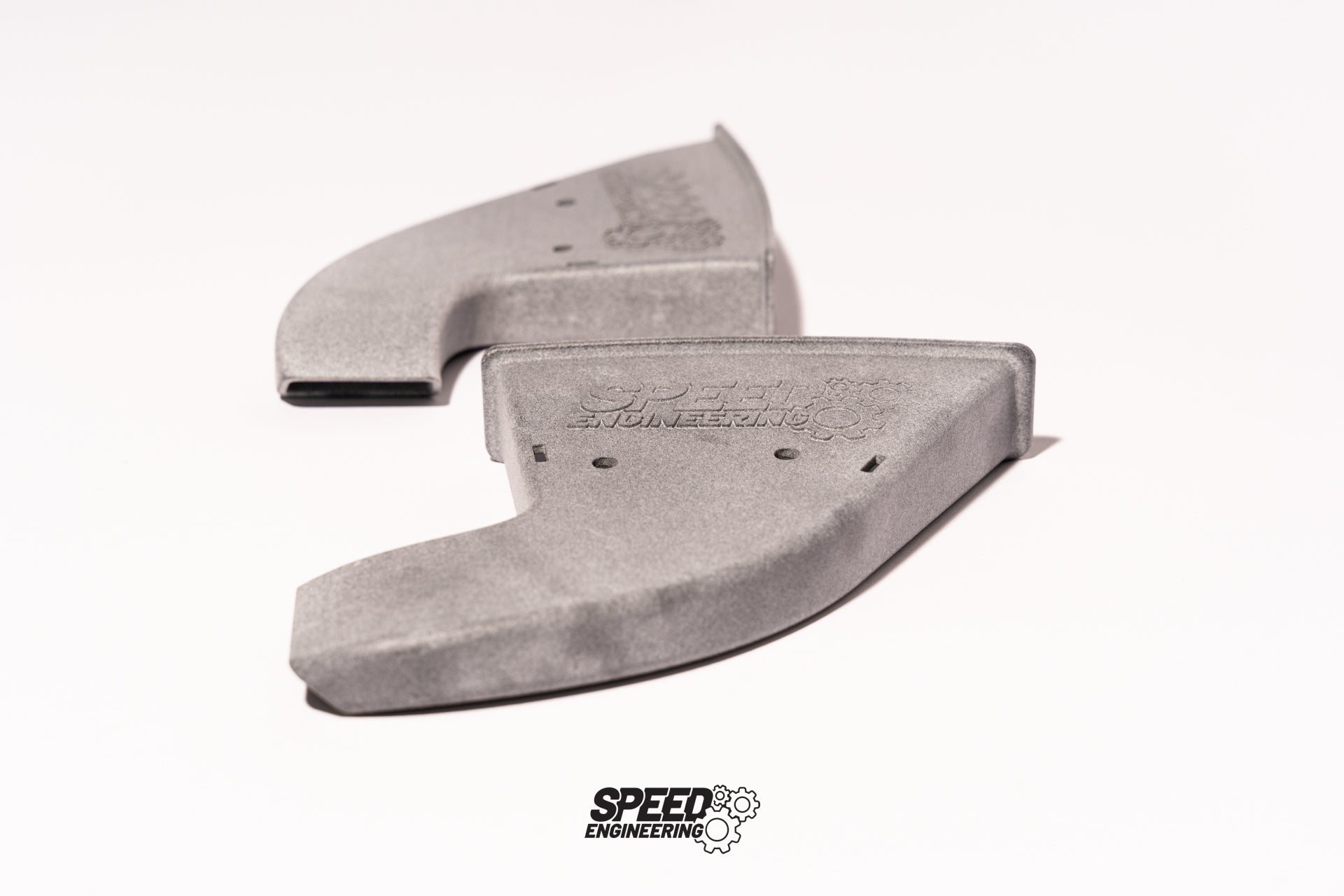

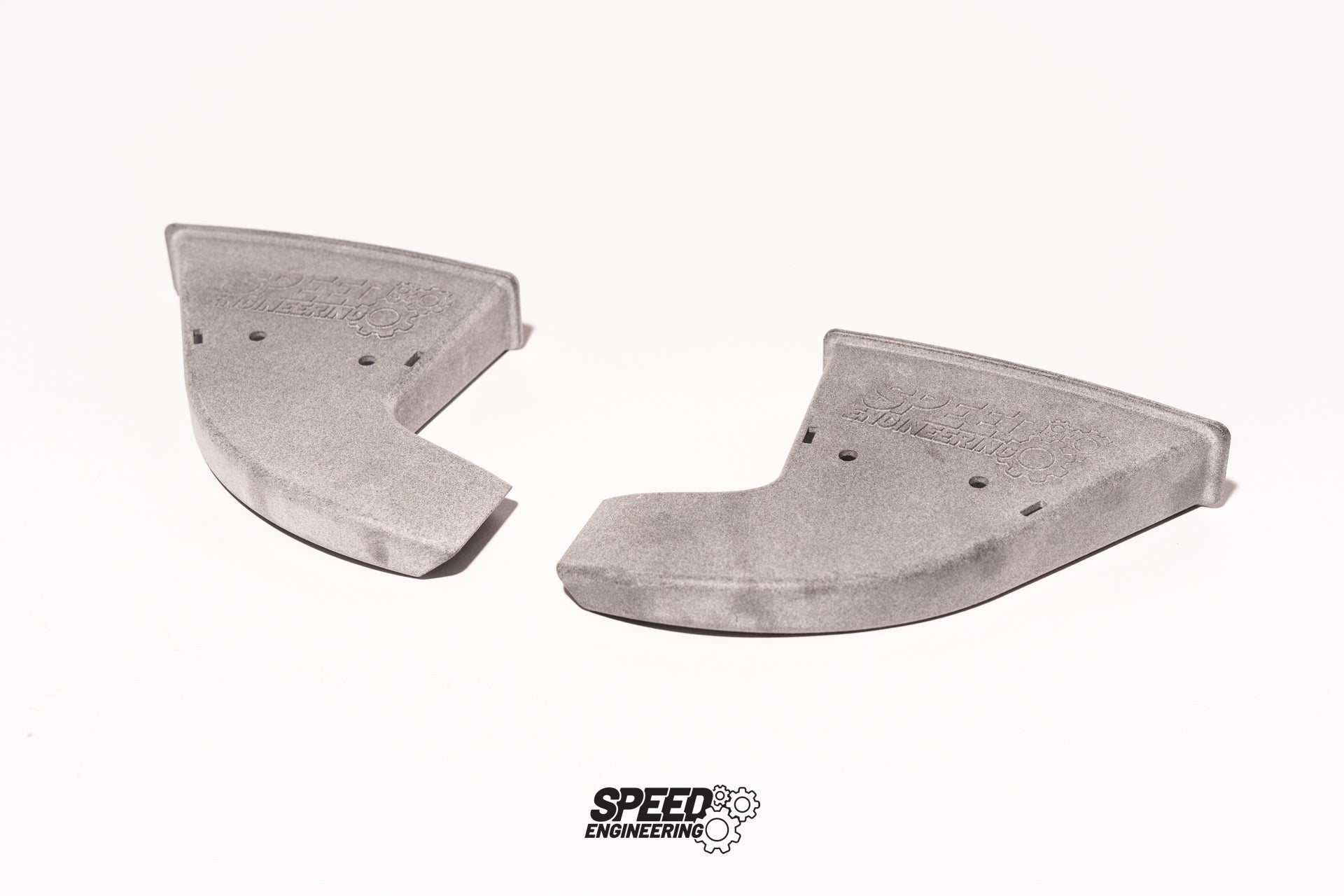

• 1x Air Duct, Rear Axle, Left

• 1x Air Duct, Rear Axle, Right

Fits all non-M models of the F Series including M140i, M235i & M240i.

• 1 Series / F20 (2012-2019) / M140i
• 1 Series / F20 (2012-2019) / M135i
• 1 Series / F20 (2012-2019) / 125i
• 1 Series / F20 (2012-2019) / 120i
• 1 Series / F20 (2012-2019) / 118i
• 1 Series / F20 (2012-2019) / 116i
• 1 Series / F20 (2012-2019) / 118d
• 2 Series / F22 / F23 (2014-2021) / M240i
• 2 Series / F22 / F23 (2014-2021) / M235i
• 2 Series / F22 / F23 (2014-2021) / 230i
• 2 Series / F22 / F23 (2014-2021) / 228i
• 2 Series / F22 / F23 (2014-2021) / 220i
• 2 Series / F22 / F23 (2014-2021) / 220d
• 3 Series / F30 / F31 / F34 (2012-2018) / 340i
• 3 Series / F30 / F31 / F34 (2012-2018) / 335i
• 3 Series / F30 / F31 / F34 (2012-2018) / 330i
• 3 Series / F30 / F31 / F34 (2012-2018) / 328i
• 3 Series / F30 / F31 / F34 (2012-2018) / 320i
• 3 Series / F30 / F31 / F34 (2012-2018) / 318i
• 3 Series / F30 / F31 / F34 (2012-2018) / 316i
• 3 Series / F30 / F31 / F34 (2012-2018) / 318d
• 3 Series / F30 / F31 / F34 (2012-2018) / 320d
• 3 Series / F30 / F31 / F34 (2012-2018) / ActiveHybrid 3
• 4 Series / F32 / F33 / F36 (2014-2020) / 440i
• 4 Series / F32 / F33 / F36 (2014-2020) / 435i
• 4 Series / F32 / F33 / F36 (2014-2020) / 430i
• 4 Series / F32 / F33 / F36 (2014-2020) / 428i
• 4 Series / F32 / F33 / F36 (2014-2020) / 420i
• 4 Series / F32 / F33 / F36 (2014-2020) / 420d

To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number(UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.

SE14149

Manufactured by

Speed Engineering
