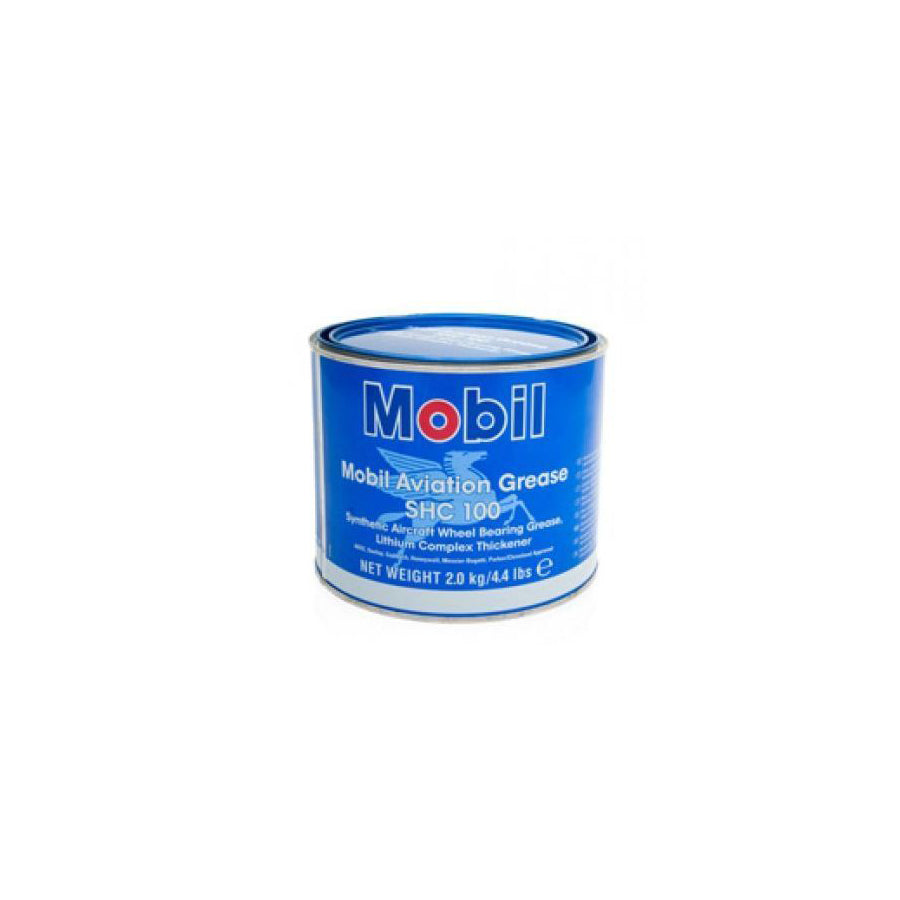

• Mobil AVI GR SHC 100 PAIL 16kg
1 1

Mobil

Mobil AVI GR SHC 100 PAIL 16kg

Mobil AVI GR SHC 100 PAIL 16kg

£910.03 GBP
£937.98 GBP £910.03 GBP
Inc. VAT
Sale Sold out

By placing an order for this item, you agree that this item is a special-order product and is not eligible for refunds or exchanges once the order has been placed.
Pop-up link text

In Stock & ready for next working day delivery

Estimated lead time 2-3 working days. Subject to availability.

Get the best deal with Duco's Price Match Policy

View full details
  • Mobil Aviation Grease SHC 100 is a supreme performance synthetic grease which combines the unique features of a polyalphaolefin (PAO) synthetic base fluid with those of a high quality lithium complex soap thickener.
  • The thickener system provides a high dropping point, excellent resistance to water wash, and a tenacious structural stability.
  • The unique physical properties of the synthetic base oil, combined with selected additives, provide outstanding protection against wear, rust, corrosion, and high temperature degradation.
  • The wax-free feature of the synthetic base oil allows for low-temperature mobility/pumpability and low starting and running torque values.
  • Mobil Aviation Grease SHC 100 is the product of choice for aircraft wheel bearing applications.



Specification and Approvals

Property

Grade

NLGI 2

Bomb Oxidation, Pressure Drop, 100 h, kPa, ASTM D942

3

Bomb Oxidation, Pressure Drop, 500 h, kPa, ASTM D942

5

Color, Visual

Red

Copper Strip Corrosion, 24 h, 100 C, Rating, ASTM D4048

PASS

Dirt, # particles 125u or larger, FTM 3005

PASS

Dirt, # Particles 25 - 124u, FTM 3005

PASS

Dropping Point, °C, ASTM D2265

278 (532)

Four-Ball Extreme Pressure Test, Weld Load, kgf, ASTM D2596

250

Four-Ball Wear Test, Scar Diameter, mm, ASTM D2266

0.5

Four-Ball Wear Test, Scar Diameter, 40 kg, 1200 rpm, 1 h, 75 C, mm, ASTM D2266

40

Low Temperature Torque, Starting @ -54 C, Nm, ASTM D1478

0.1 (1020)

Oil Separation, 30 h @ 177 C, mass%, ASTM D6184

5

Pen Worked X 100,000, 1/16" holes, 0.1 mm, FTM 313

313

Penetration, 60X, 0.1 mm, ASTM D217

280

Rust Protection, 48 h @ 125 F, Rating, ASTM D1743

PASS

Soap Free Alkali, as Lithium Hydroxide, wt%, M 219

Lithium complex

Texture, VISUAL

Smooth; Slight Tack

Water Washout, 1 h @ 79 C, wt%, ASTM D1264

7

Water Washout, Loss @ 41 C, wt%, ASTM D1264(mod)

3

Viscosity @ 40°C, Base Oil, cSt, CALCULATED

100

Four-Ball Extreme Pressure Test, Load Wear Index, kgf, ASTM D2596

40



Applications

Mobil Aviation Grease SHC 100 is recommended for aviation applications which need a lubricant that can perform normal functions, yet go far beyond in terms of high and low temperatures and long-life performance. It is a NLGI Grade 2/ISO VG 100 grease having the cold-temperature pumping resistance of most mineral-oil NLGI Grade 0 greases. It provides outstanding protection at operating temperatures from €“54 ºC (-65 ºF) to 177 ºC (350 ºF).

Mobil Aviation grease SHC 100 is recommended for high speed, heavy load applications such as wheel bearings, as well as for slower speed, high load applications such as landing gear bearings, slides, and joints.

Mobil Aviation Grease SHC 100 is approved as a wheel bearing grease by all major aircraft wheel manufacturers.



Please compare with your original manufacturer's oil specification which can be found in your vehicle manual. Feel free to contact us if you require any assistance!



Before sending out your ordered part(s), we perform a compatibility check to guarantee that they will fit your vehicle. This verification can be done by using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car information before proceeding to checkout.



MOBIL149851



Manufactured by

Mobil
