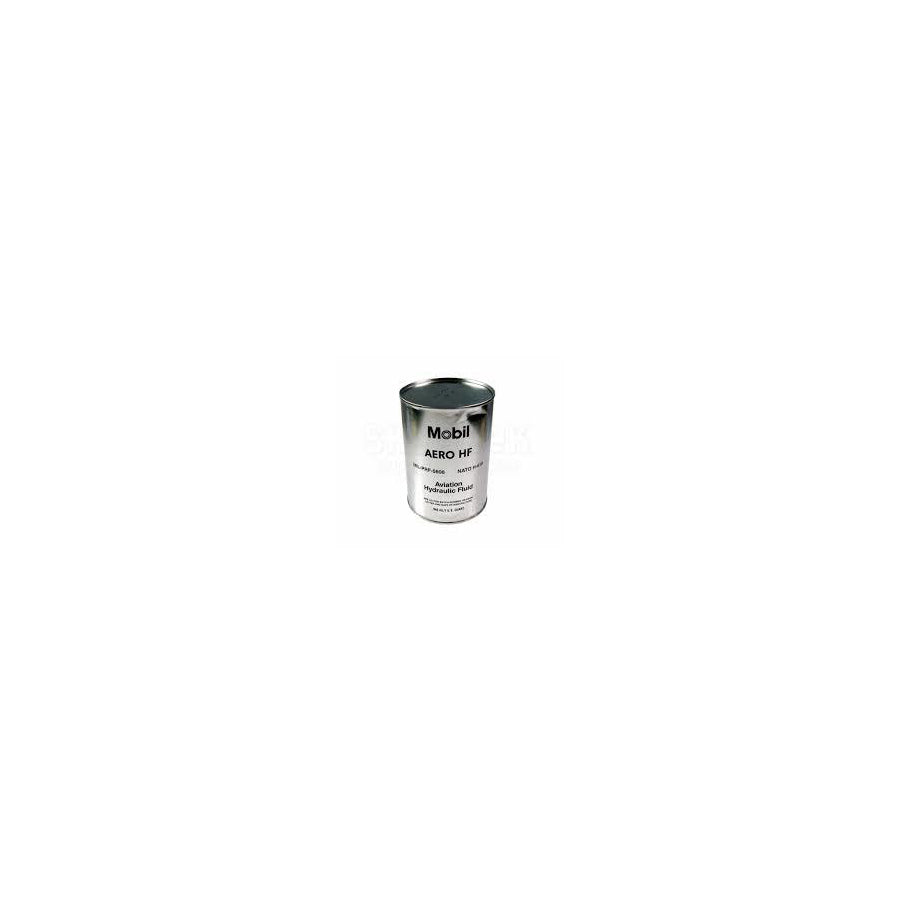

• Mobil AERO HF PAIL 5USG 5USG
1 1

Mobil

Mobil AERO HF PAIL 5USG 5USG

Mobil AERO HF PAIL 5USG 5USG

£371.44 GBP
£382.85 GBP £371.44 GBP
Inc. VAT
Sale Sold out
Pop-up link text

In Stock & ready for next working day delivery

Estimated lead time 2-3 working days. Subject to availability.

Get the best deal with Duco's Price Match Policy

View full details
  • Mobil Aero HFA and HF are formulated for aircraft systems where use of hydrocarbon-based hydraulic fluids is required.
  • They are low viscosity products, high VI (viscosity index) fluid with excellent low temperature properties, good anti-wear performance, and good chemical stability.
  • Mobil Aero HFA and HF are composed of mineral base oil stock and contain shear-stable VI improvers.



Specification and Approvals

Property

HF

HFA

API Gravity, °API, ASTM D287

29

30

Acid Number, mgKOH/g, ASTM D664

0.03 (0.2 max)

Barium, mg/kg, ASTM D5185

<1 (10 max)

Bulk Modulus, Isothermal secant at 40 C/4000 psi, psi, ASTM D6793

200,000 min

200,000 min

Color, Visual

Red

Red

Copper Strip Corrosion, 72 hrs at 135 C, ASTM D130

1B (2E max)

1B (2E max)

Corrosion and Oxidation Stability, 168 hours at 135 C, Rating, ASTM D4636

PASS

PASS

Density @ 60 F, lb/gal, CALCULATED

7.26

7.26

Evapor. Loss, 6H at 71C, mass %, ASTM D972

12 (20 max)

Flash Point, Cleveland Open Cup, °C, ASTM D92

107

107 (93 min)

Flash Point, Pensky-Martens Closed Cup, °C, ASTM D93

96 (82 min)

92

Foam, Sequence I, Stability, ml, ASTM D892

0

Foam, Sequence I, Tendency, ml, ASTM D892

36 (65 max)

Four-Ball Wear Test, Scar Diameter, mm, ASTM D4172

0.6 (1.0 max)

Four-Ball Wear Test, Scar Diameter, 40 kg, 1200 rpm, 1 h, 75 C, mm, ASTM D4172

0.6 (1.0 max)

Kinematic Viscosity -40 F, cSt, ASTM D445

450 (500 max)

Kinematic Viscosity 130 F, cSt, ASTM D445

10.4 (10.0 min)

Kinematic Viscosity @ -40 C, mm2/s, ASTM D445

450 (600 max)

Kinematic Viscosity @ -54 C, mm2/s, ASTM D445

2000 (2500 max)

1900

Kinematic Viscosity @ 100 C, mm2/s, ASTM D445

5.2 (4.9 min)

5.2

Kinematic Viscosity @ 40 C, mm2/s, ASTM D445

14.0 (13.2 min)

14.0

Low Temperature Stability, 72 hrs @ - 54 C, FTM 3459

PASS

Low Temperature Stability, 72 hrs @ - 54 C, FTM 791.3458

PASS

Particulate Contamination, mg/100ml, ASTM D4898

0.2 (0.3 max)

Pour Point, °C, ASTM D97

-62 (-60 max)

-64 (-60 max)

Shear Stability, %KV loss, ASTM D2603

15 max

Specific Gravity 60 F / 60 F, ASTM D1429

0.872

Specific Gravity, 15.6 C/15.6 C, ASTM D4052

0.872

Viscosity Index, ASTM D2270

370

370

Water Content, mg/kg, ASTM D6304

50 (100 max)

Water, Karl-Fischer, ppm, ASTM D1744

50 (100 max)



Applications

Mobil Aero HFA is a premium quality fluid that meets the quality requirements of the U.S. Military specification MIL-H-5606A (now obsolete). It has a very high VI and is suitable for use at temperatures down to -54 ºC (-65 ºF). While this quality fluid is no longer used by the U.S. Military, it is still used in some older, small private, and commercial aircraft. It is also used in industrial and commercial equipment requiring good fluidity at very low temperatures, where Mobil Aero HFA provides long, trouble-free service over a wide range of operating conditions.

Mobil Aero HF is a premium quality fluid that is approved against the most current version of U.S. Military specification MIL-PRF-5606. It has physical properties very similar to Mobil Aero HFA, and also meets "super-clean" requirements required by modern aircraft hydraulic systems. It is intended primarily for military aircraft, but it is also used as a hydraulic fluid for small private and commercial aircraft, and as a strut fluid in landing gear of large commercial aircraft. It is a NATO Code Number H-515 fluid.



Please compare with your original manufacturer's oil specification which can be found in your vehicle manual. Feel free to contact us if you require any assistance!



Before sending out your ordered part(s), we perform a compatibility check to guarantee that they will fit your vehicle. This verification can be done by using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car information before proceeding to checkout.



MOBIL120953



Manufactured by

Mobil
