The Mishimoto BMW N54 Baffled Oil Catch Can is designed and engineered to reduce carbon buildup, a common issue with the direct fuel injection N54 engines. The Mishimoto BMW N54 catch can kit uses the proven engineering from the Mishimoto 2-Port Compact Baffled Oil Catch Can with a bronze filter, and internal baffled to better separate the oil from the crankcase vapors. The engineers at Mishimoto designed a CNC-machined lid which features large inlet/outlets in order to match the inner dimension of the CCV hose. This baffled oil catch can will defend your intercooler, intake system, and VANOS system from oil blow-by and help maintain proper octane levels to reduce potential detonation. The kit comes with two direct-fit hoses, which require no modification to the engine cover, and one direct fit mounting bracket that not only is extremely easy to install but also mounts the can in a serviceable location! Two plastic, 3/4” barb fittings connect the hoses to the can. And, like every Mishimoto oil catch can, this baffled catch can kit comes with the Mishimoto Lifetime Warranty!

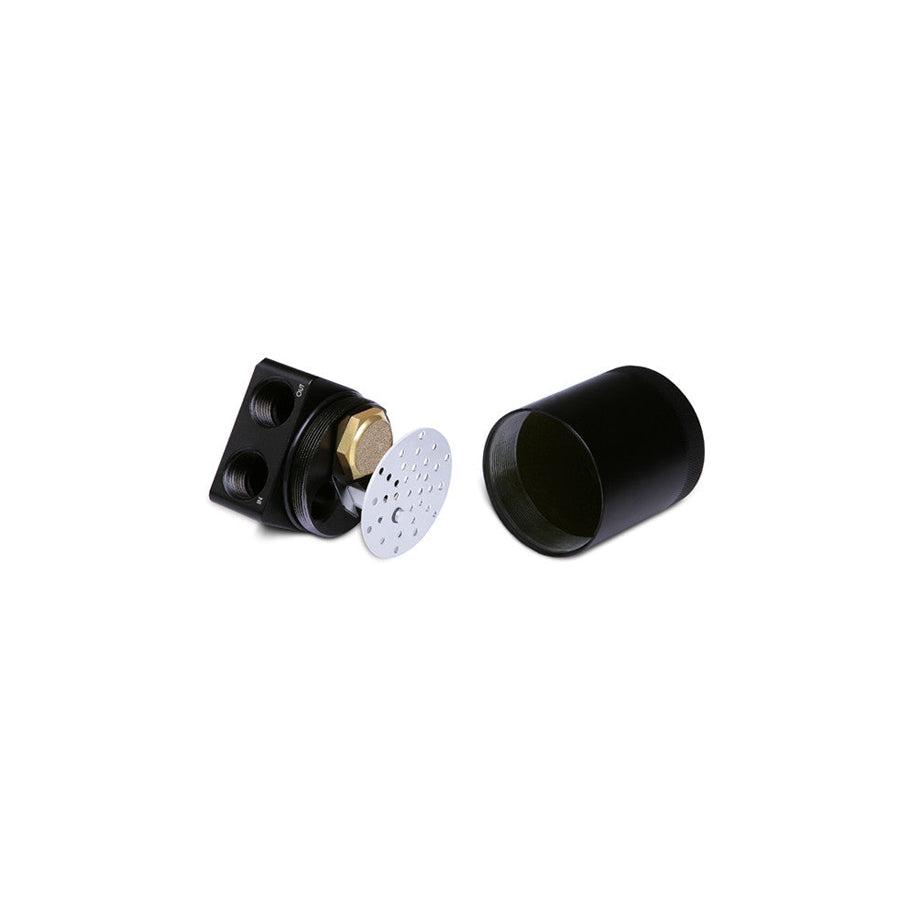

• Single 2-Port Compact Baffled Oil Catch Can with application-specific lid mounts in line with the CCV system to separate oil particles using 50 micron bronze filter

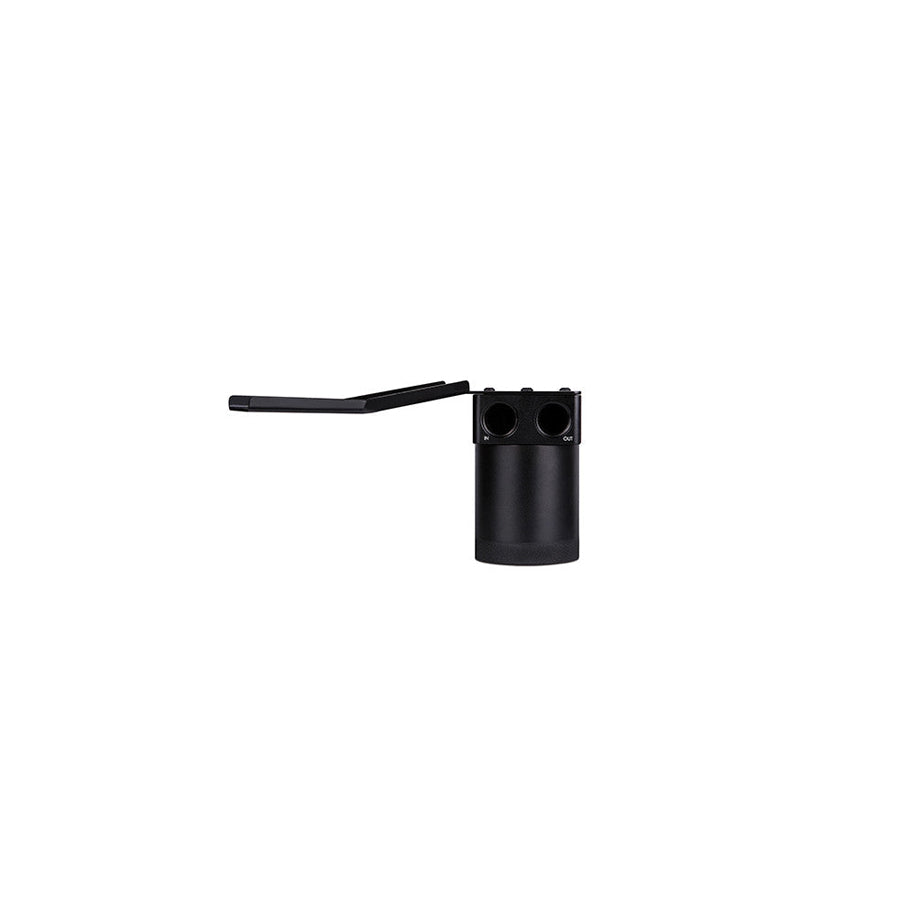

• Application-specific bracket mounts the can in a serviceable location
• Direct fit hoses allow for installation with no modification to engine cover
• Application-specific lid designed so fitting size matches CCV line size
• Billet 6061 aluminium sealed can
• Defends intercooler, intake system, and VANOS system from oil blow-by
• Helps maintain proper octane levels to reduce potential detonation
• Filters and can is fully serviceable
• Internal air diverter turbulates air longer to improve oil separation
• Mishimoto Lifetime Warranty

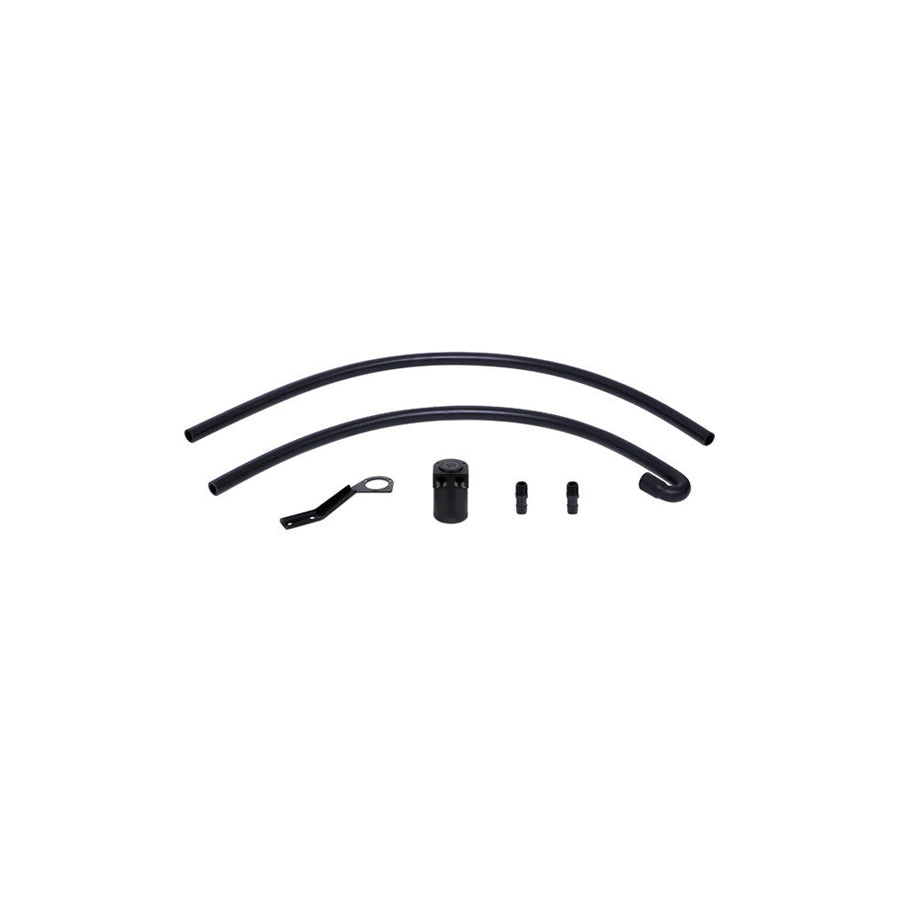

(1) Application-Specific Mounting Bracket
(1) Black, Anodized 6061 Aluminium Catch Can
(2) Direct Fit Hoses, Black
(2) Plastic Barbed Fittings
(1) Air Diverter
(1) Internal Baffle & Rod
(1) 3/8" NPT Plug
(1) Large O-Ring

N54 engine

• 08–10 BMW E82 135i
• 2011 BMW E82 1M
• 06–10 BMW E90 335i/335xi
• 06–10 BMW E91 335i/335xi
• 07–10 BMW E92 335i/335xi
• 07–10 BMW E93 335i/335xi
• 08-10 BMW E89 Z4 35i/Z4 35is

To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number(UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.

MMBCC-N54-06CBE2

Manufactured by

Mishimoto

Warranty

Mishimoto Lifetime Warranty

Mishimoto BMW E Chassis 135i 335i (N54) Baffled Oil Catch Can
