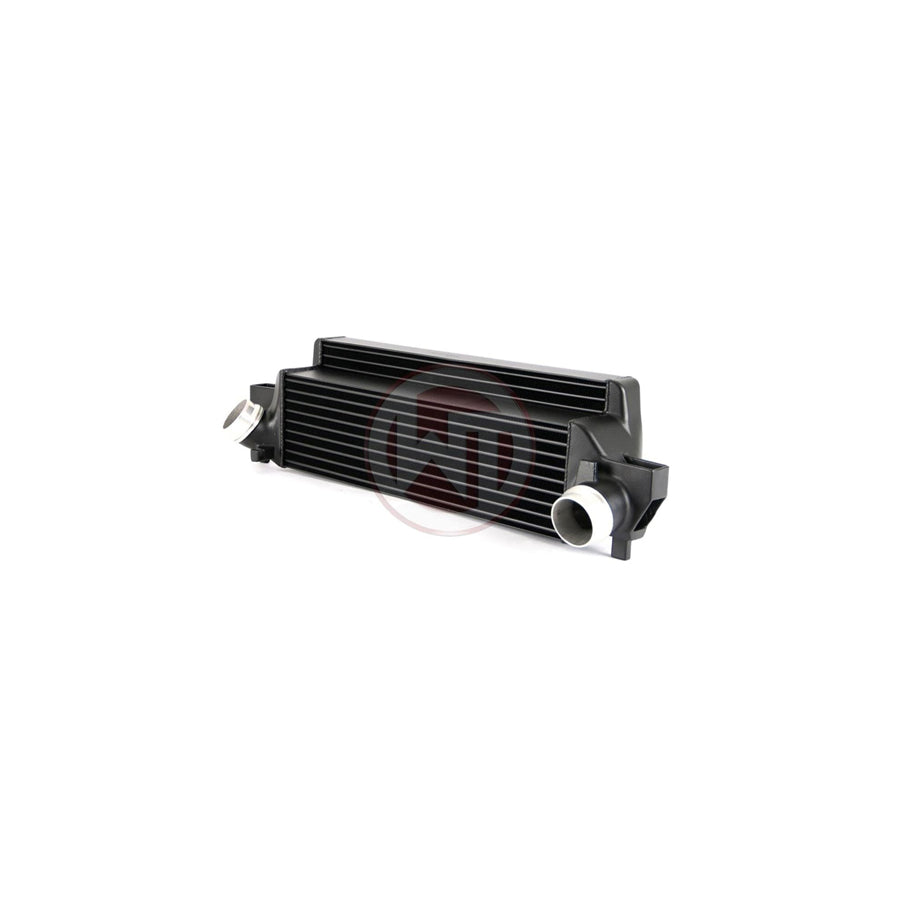

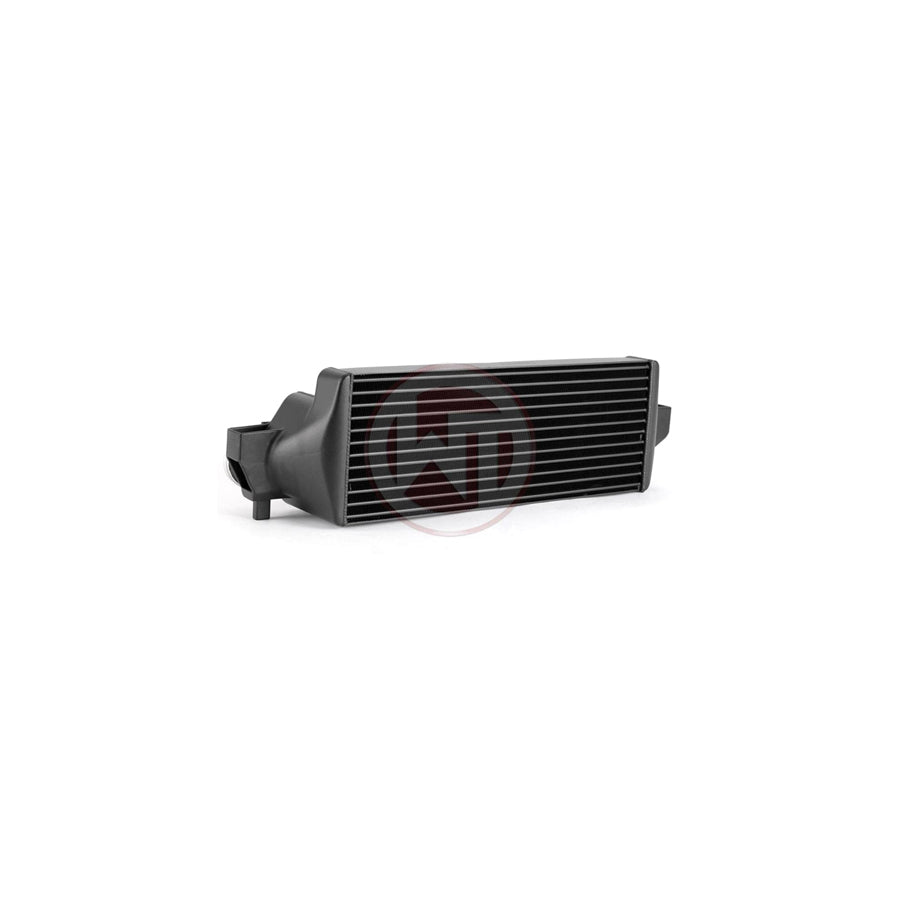

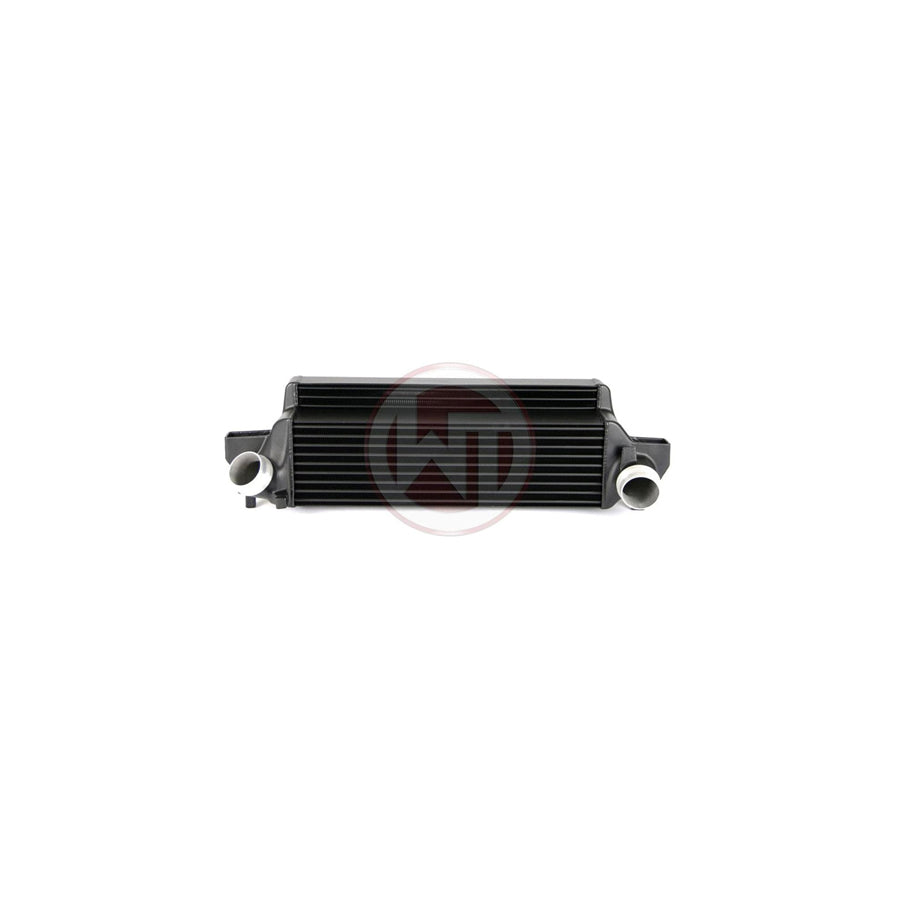

Competition Intercooler Kit for Mini Cooper S John Cooper Works (GP)


The competition intercooler kit has the following core dimensions (580mm x 225mm x 145mm [stepped] = 16.600cm³ / Stock IC 585mm x150mm x95mm, 8.300cm³). The high performance intercooler core provides a 30% larger frontal area and 47% more volume compared to the stock intercooler. Our engineers have increased the intercooler core size and efficiency, as well as improved the end tank design to remove any OEM bottlenecks, resulting in increased flow rating and charge cooling properties. Despite of it´s size the weight of the complete intercooler is only 9,65kg. Constructed of the highest quality Tube and Fin intercooler cores with inside turbulators combined with cast aluminum end tanks optimized by CFD for best possible internal airflow. This intercooler kit is the best choice when it comes to performance gains and low intake temperatures. Directly designed for the high requirements of Mini Cooper S JCW.

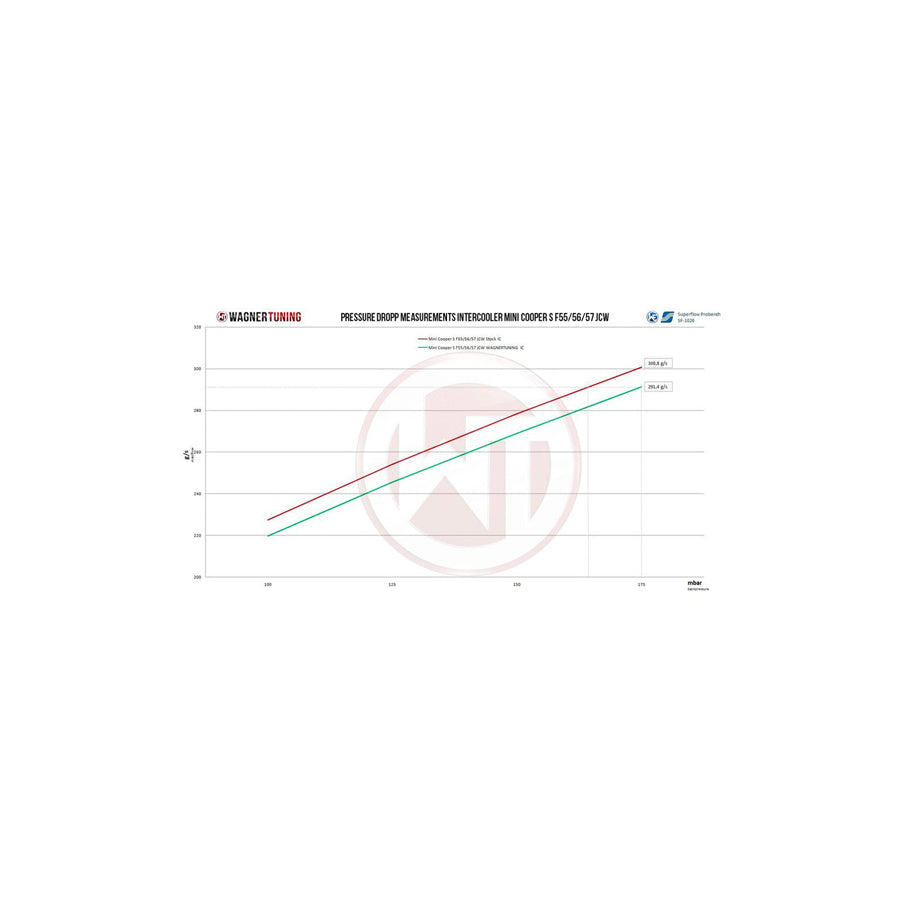

A lot less pressure drop then stock intercooler.
Maximum cooling performance with clearly more power.
Anti corrosion protective coating with perfect thermal heat dissapating character.
Ready for installation (plug & play), only replacing the stock intercooler.

 All of our products undergo rigorous quality control.

Dimensions stock intercooler:
585mm x150mm x 95mm
V=8,3 Liter
A=877,5 cm²

Dimensions WAGNERTUNING intercooler:
590mm x 225mm x145mm /stepped
V=16,6 Liter
A=1327,5 cm²

• 1 intercooler painted black
• 1 mounting material
• 1 installation instruction

• Mini Cooper S JCW F54/F55/F56/F60 (170KW/231PS) 2015-

200001089

Manufactured by

Wagner

Warranty

Duco Car Parts UK Lifetime Warranty
