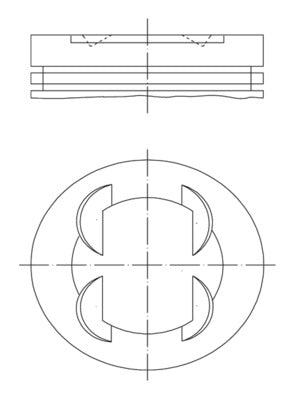

Mahle 681PI00109002 - Piston with rings and pin

Mahle 681PI00109002 - Piston with rings and pin

£40.36 GBP
£40.77 GBP £40.36 GBP
Inc. VAT
Sale Sold out
Pop-up link text

In Stock & ready for next working day delivery

Estimated lead time 2-3 working days. Subject to availability.

Get the best deal with Duco's Price Match Policy

View full details
This is Mahle 681PI00109002 - Piston with rings and pin



Cylinder Bore [mm]: 86,50 mm
Length [mm]: 53 mm
Compression Height [mm]: 30 mm
Bolt Length [mm]: 58 mm
Bolt Head Diameter [mm]: 22 mm
Recess Depth 1 [mm]: 0,4 mm
Recess Diameter [mm]: 68 mm
Surface: Coated
Top Land Height [mm]: 6 mm
Production Number: 86 L 175
Piston Clearance [mm]: 0,04 mm
Component Number: 1. R1.2 IF PVD
Component Number: 2. NM1.2 IFU P
Component Number: 3. 3S 2.0 N
Packaging height [cm]: 12,80 cm
Net Weight [g]: 591 g
Packaging length [cm]: 9,5 cm
Packaging width [cm]: 9,50 cm



HYUNDAI

Feel free to contact us at support@ducocarparts.co.uk should you wish to double check!



Before sending out your ordered part(s), we perform a compatibility check to guarantee that they will fit your vehicle. This verification can be done by using your registration number (UK) or the last 7 digits of your VIN. Kindly provide your car information before proceeding to checkout.



MAHLE-681PI00109002



Manufactured by

Mahle
