• Mahle 607PI00118000 - Piston with rings and pin
1 1

Mahle

Mahle 607PI00118000 - Piston with rings and pin

Mahle 607PI00118000 - Piston with rings and pin

£151.62 GBP
£153.15 GBP £151.62 GBP
Inc. VAT
Sale Sold out
Pop-up link text

In Stock & ready for next working day delivery

Estimated lead time 2-3 working days. Subject to availability.

Get the best deal with Duco's Price Match Policy

View full details

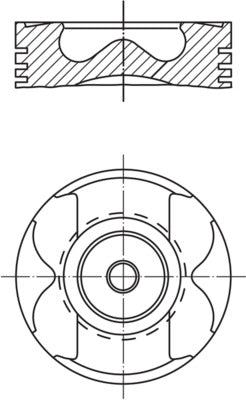

This is Mahle 607PI00118000 - Piston with rings and pin



Cylinder Bore [mm]: 96,00 mm
Length [mm]: 78,5 mm
Compression Height [mm]: 49,6 mm
Bolt Length [mm]: 73 mm
Bolt Head Diameter [mm]: 34 mm
Recess Depth 1 [mm]: 16,3 mm
Recess Diameter [mm]: 52 mm
Valve Pocket Depth 1 [mm]: 0,5 mm
Valve Pocket Depth 2 [mm]: 0,85 mm
Machined: with cut-out for oil jet
Surface: Coated
Supplementary Article/Info 2: with piston ring carrier
Supplementary Article/Info 2: with cooling duct
Top Land Height [mm]: 10 mm
Connecting Rod Design: Trapezoidal Connecting Rod
Production Number: 96 L 104
Piston Clearance [mm]: 0,04 mm
Component Number: 1. ET 2.0 N
Component Number: 2. M 1.5 N
Component Number: 3. DSF 3.0 N P



Toyota Hilux Land Cruiser 120 Land Cruiser 150 1KD-FTV 1KDFTV 3,0TCi (KDJ12) 2004-2006

Feel free to contact us at support@ducocarparts.co.uk should you wish to double check!



Before sending out your ordered part(s), we perform a compatibility check to guarantee that they will fit your vehicle. This verification can be done by using your registration number (UK) or the last 7 digits of your VIN. Kindly provide your car information before proceeding to checkout.



MAHLE-607PI00118000



Manufactured by

Mahle
