• Mahle 257PI00100001 - Piston with rings and pin
1 1

Mahle

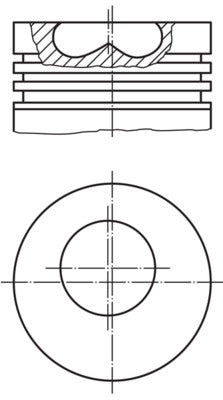

Mahle 257PI00100001 - Piston with rings and pin

Mahle 257PI00100001 - Piston with rings and pin

£120.39 GBP
£121.61 GBP £120.39 GBP
Inc. VAT
Sale Sold out
Pop-up link text

In Stock & ready for next working day delivery

Estimated lead time 2-3 working days. Subject to availability.

Get the best deal with Duco's Price Match Policy

View full details
This is Mahle 257PI00100001 - Piston with rings and pin



Cylinder Bore [mm]: 112,04 mm
Length [mm]: 110,9 mm
Compression Height [mm]: 72,95 mm
Bolt Length [mm]: 94,5 mm
Bolt Head Diameter [mm]: 41,27 mm
Recess Depth 1 [mm]: 22,8 mm
Recess Diameter [mm]: 56 mm
Surface: Coated
Supplementary Article/Info 2: with piston ring carrier
Supplementary Article/Info 2: without cooling duct
Top Land Height [mm]: 9,6 mm
Production Number: 112 L 24
Piston Clearance [mm]: 0,175 mm
Component Number: 1.T3.19 IF CrK
Component Number: 2. NM 2.38 P
Component Number: 3. DSF4.75 Cr P
Packaging length [cm]: 13,2 cm
Packaging width [cm]: 13,20 cm
Net Weight [g]: 1670 g
Packaging height [cm]: 19,00 cm



Feel free to contact us at support@ducocarparts.co.uk should you wish to double check!



Before sending out your ordered part(s), we perform a compatibility check to guarantee that they will fit your vehicle. This verification can be done by using your registration number (UK) or the last 7 digits of your VIN. Kindly provide your car information before proceeding to checkout.



MAHLE-257PI00100001



Manufactured by

Mahle
