• Mahle 2293700 - Piston with rings and pin
1 1

Mahle

Mahle 2293700 - Piston with rings and pin

Mahle 2293700 - Piston with rings and pin

£216.74 GBP
£218.93 GBP £216.74 GBP
Inc. VAT
Sale Sold out
Pop-up link text

In Stock & ready for next working day delivery

Estimated lead time 2-3 working days. Subject to availability.

Get the best deal with Duco's Price Match Policy

View full details

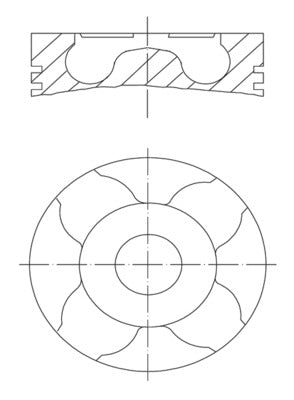

This is Mahle 2293700 - Piston with rings and pin



Cylinder Bore [mm]: 120,0 mm
Length [mm]: 121,8 mm
Compression Height [mm]: 76,8 mm
Bolt Length [mm]: 96,0 mm
Bolt Head Diameter [mm]: 52,0 mm
Recess Depth 1 [mm]: 19,7 mm
Recess Diameter [mm]: 67,0 mm
Valve Pocket Depth 1 [mm]: 1,6 mm
Valve Pocket Depth 2 [mm]: 2,0 mm
Machined: with cut-out for oil jet
Surface: Coated
Supplementary Article/Info 2: with piston ring carrier
Supplementary Article/Info 2: with cooling duct
Top Land Height [mm]: 10 mm
Connecting Rod Design: Trapezoidal Connecting Rod
Production Number: 120 L 154
Piston Clearance [mm]: 0,13 mm
Component Number: 1. T 3.5 Crk P
Component Number: 2. M3.0 IW Cr P
Component Number: 3. DSF4.0 Cr P
Packaging length [cm]: 13,2 cm
Packaging width [cm]: 13,20 cm
Packaging height [cm]: 19,00 cm
Net Weight [g]: 3138 g



MAN Truck & Bus TGA/TGS/TGX Neoplan Bus Cityliner Centroliner D2066LF01→04/06→07/11-53/57→60/62→65/69→72 D2066LOH01→08/10→12/26→28/32→40 D2066LUH01→05/07→09/11→18/21→28/32-34/50→53 Euro4/5/6 2004+

Feel free to contact us at support@ducocarparts.co.uk should you wish to double check!



Before sending out your ordered part(s), we perform a compatibility check to guarantee that they will fit your vehicle. This verification can be done by using your registration number (UK) or the last 7 digits of your VIN. Kindly provide your car information before proceeding to checkout.



MAHLE-2293700



Manufactured by

Mahle
