• Mahle 2292110 - Piston with rings and pin
1 1

Mahle

Mahle 2292110 - Piston with rings and pin

Mahle 2292110 - Piston with rings and pin

£367.32 GBP
£371.03 GBP £367.32 GBP
Inc. VAT
Sale Sold out
Pop-up link text

In Stock & ready for next working day delivery

Estimated lead time 2-3 working days. Subject to availability.

Get the best deal with Duco's Price Match Policy

View full details

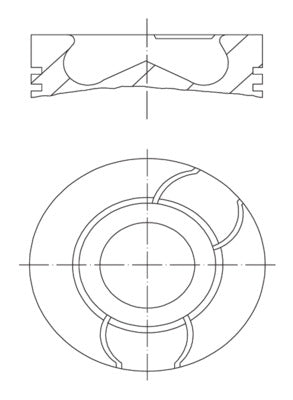

This is Mahle 2292110 - Piston with rings and pin



Cylinder Bore [mm]: 128,0 mm
Length [mm]: 130,3 mm
Compression Height [mm]: 81,1 mm
Bolt Length [mm]: 105 mm
Bolt Head Diameter [mm]: 46 mm
Recess Depth 1 [mm]: 19,3 mm
Recess Diameter [mm]: 83,35 mm
Valve Pocket Depth 1 [mm]: 1,7 mm
Valve Pocket Depth 2 [mm]: 1,7 mm
Machined: with cut-out for oil jet
Surface: Coated
Supplementary Article/Info 2: with piston ring carrier
Supplementary Article/Info 2: with cooling duct
Top Land Height [mm]: 18,75 mm
Production Number: 128 L 99
Piston Clearance [mm]: 0,13 mm
Component Number: 1. T 4 IW CRK
Component Number: 2. M 3 Cr P
Component Number: 3. DSF 4.0 Cr
Packaging length [cm]: 15,0 cm
Packaging width [cm]: 15,00 cm
Packaging height [cm]: 21,00 cm
Net Weight [g]: 2455 g



MAN

Feel free to contact us at support@ducocarparts.co.uk should you wish to double check!



Before sending out your ordered part(s), we perform a compatibility check to guarantee that they will fit your vehicle. This verification can be done by using your registration number (UK) or the last 7 digits of your VIN. Kindly provide your car information before proceeding to checkout.



MAHLE-2292110



Manufactured by

Mahle
