• Mahle 2096700 - Piston with rings and pin
1 1

Mahle

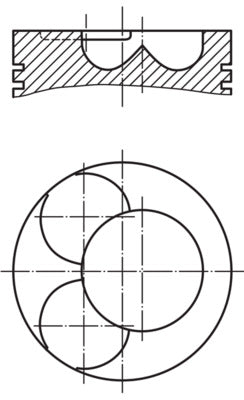

Mahle 2096700 - Piston with rings and pin

Mahle 2096700 - Piston with rings and pin

£149.93 GBP
£151.44 GBP £149.93 GBP
Inc. VAT
Sale Sold out
Pop-up link text

In Stock & ready for next working day delivery

Estimated lead time 2-3 working days. Subject to availability.

Get the best deal with Duco's Price Match Policy

View full details
This is Mahle 2096700 - Piston with rings and pin



Cylinder Bore [mm]: 120,0 mm
Length [mm]: 134,8 mm
Compression Height [mm]: 83,8 mm
Bolt Length [mm]: 97,4 mm
Bolt Head Diameter [mm]: 50,0 mm
Recess Depth 1 [mm]: 23,25 mm
Recess Diameter [mm]: 69,8 mm
Valve Pocket Depth 1 [mm]: 1,1 mm
Valve Pocket Depth 2 [mm]: 0,8 mm
Machined: with cut-out for oil jet
Supplementary Article/Info 2: with piston ring carrier
Supplementary Article/Info 2: without cooling duct
Top Land Height [mm]: 12 mm
Production Number: 120 L 184
Piston Clearance [mm]: 0,065 mm
Component Number: 1. T 3.5 Crk P
Component Number: 2. M3.0 IW Cr P
Component Number: 3. DSF4.0 Cr P
Packaging length [cm]: 15,0 cm
Packaging width [cm]: 15,00 cm
Packaging height [cm]: 21,00 cm
Net Weight [g]: 3192 g



RVI-KAROSA

Feel free to contact us at support@ducocarparts.co.uk should you wish to double check!



Before sending out your ordered part(s), we perform a compatibility check to guarantee that they will fit your vehicle. This verification can be done by using your registration number (UK) or the last 7 digits of your VIN. Kindly provide your car information before proceeding to checkout.



MAHLE-2096700



Manufactured by

Mahle
