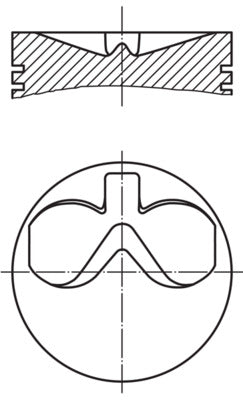

Mahle 1017302 - Piston with rings and pin

Mahle 1017302 - Piston with rings and pin

£230.34 GBP
£232.67 GBP £230.34 GBP
Inc. VAT
Sale Sold out
Pop-up link text

In Stock & ready for next working day delivery

Estimated lead time 2-3 working days. Subject to availability.

Get the best deal with Duco's Price Match Policy

View full details
This is Mahle 1017302 - Piston with rings and pin



Cylinder Bore [mm]: 126,0 mm
Length [mm]: 138,7 mm
Compression Height [mm]: 87,4 mm
Bolt Length [mm]: 102,0 mm
Bolt Head Diameter [mm]: 45,0 mm
Recess Depth 1 [mm]: 17,6 mm
Valve Pocket Depth 1 [mm]: 1,3 mm
Valve Pocket Depth 2 [mm]: 1,1 mm
Machined: with cut-out for oil jet
Surface: Hard Anodized
Supplementary Article/Info 2: with piston ring carrier
Supplementary Article/Info 2: with cooling duct
Top Land Height [mm]: 23 mm
Production Number: 125 L 82
Piston Clearance [mm]: 0,13 mm
Component Number: 1. T 3.0 Mo
Component Number: 2. M 2.5 Fe
Component Number: 3. DSF4.0 Cr P
Packaging length [cm]: 15,0 cm
Packaging width [cm]: 15,00 cm
Packaging height [cm]: 21,00 cm
Net Weight [g]: 3560 g



DEUTZ

Feel free to contact us at support@ducocarparts.co.uk should you wish to double check!



Before sending out your ordered part(s), we perform a compatibility check to guarantee that they will fit your vehicle. This verification can be done by using your registration number (UK) or the last 7 digits of your VIN. Kindly provide your car information before proceeding to checkout.



MAHLE-1017302



Manufactured by

Mahle
