Mahle

Mahle 0993302 - Piston with rings and pin

£65.78 GBP

~~£66.44 GBP~~ £65.78 GBP

Inc. VAT

Sale Sold out

Product variants

Quantity

In Stock & ready for next working day delivery

Estimated lead time 2-3 working days. Subject to availability.

Get the best deal with Duco's Price Match Policy

View full details

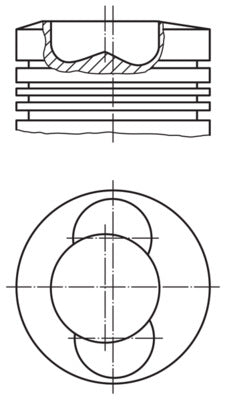

This is Mahle 0993302 - Piston with rings and pin

Cylinder Bore [mm]:	101,0 mm
Length [mm]:	123,6 mm
Compression Height [mm]:	71,9 mm
Bolt Length [mm]:	80,0 mm
Bolt Head Diameter [mm]:	35,0 mm
Recess Depth 1 [mm]:	21,4 mm
Recess Diameter [mm]:	55,0 mm
Valve Pocket Depth 1 [mm]:	1,1 mm
Machined:	with cut-out for oil jet
Top Land Height [mm]:	16,4 mm
Production Number:	100 L 65
Piston Clearance [mm]:	0,09 mm
Component Number:	1. T 3.0 Cr
Component Number:	2. M 2.5 P
Component Number:	3. M 2.5 P
Component Number:	4. DSF 5.0 Cr
Packaging length [cm]:	11,6 cm
Packaging width [cm]:	11,60 cm
Packaging height [cm]:	14,30 cm
Net Weight [g]:	1725 g

DEUTZ

Feel free to contact us at support@ducocarparts.co.uk should you wish to double check!

Before sending out your ordered part(s), we perform a compatibility check to guarantee that they will fit your vehicle. This verification can be done by using your registration number (UK) or the last 7 digits of your VIN. Kindly provide your car information before proceeding to checkout.

MAHLE-0993302

Manufactured by

Mahle
