• Mahle 0403700 - Piston with rings and pin
1 1

Mahle

Mahle 0403700 - Piston with rings and pin

Mahle 0403700 - Piston with rings and pin

£80.93 GBP
£81.75 GBP £80.93 GBP
Inc. VAT
Sale Sold out
Pop-up link text

In Stock & ready for next working day delivery

Estimated lead time 2-3 working days. Subject to availability.

Get the best deal with Duco's Price Match Policy

View full details

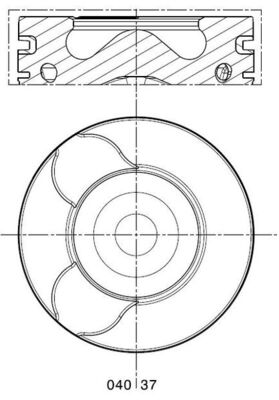

This is Mahle 0403700 - Piston with rings and pin



Cylinder Bore [mm]: 85 mm
Length [mm]: 72,7 mm
Compression Height [mm]: 46,7 mm
Bolt Length [mm]: 70 mm
Bolt Head Diameter [mm]: 28 mm
Recess Depth 1 [mm]: 15,4 mm
Recess Diameter [mm]: 44,8 mm
Valve Pocket Depth 1 [mm]: 0,52 mm
Machined: with cut-out for oil jet
Supplementary Article/Info 2: with piston ring carrier
Supplementary Article/Info 2: with cooling duct
Top Land Height [mm]: 8,5 mm
Connecting Rod Design: Trapezoidal Connecting Rod
Production Number: 85 L 178
Component Number: 1. T 3.5 CrK
Component Number: 2. M 2.0 IFU
Component Number: 3. DSF 3.0 Cr
Net Weight [g]: 1070 g
Packaging height [cm]: 12,80 cm
Packaging length [cm]: 9,5 cm
Packaging width [cm]: 9,50 cm



Citroën C4/C5/C8 Jumpy Fiat Scudo Ulysse Ford C-Max Focus Mondeo Lancia Phedra Peugeot 307/308/407/508/607/807 Expert Suzuki Vitara Volvo C30/C70/S40/S80/V50/V70 2,0D/2,0HDi RHD/RHJ/RHK/RHR/D4204T/DW10C* 2003+

Feel free to contact us at support@ducocarparts.co.uk should you wish to double check!



Before sending out your ordered part(s), we perform a compatibility check to guarantee that they will fit your vehicle. This verification can be done by using your registration number (UK) or the last 7 digits of your VIN. Kindly provide your car information before proceeding to checkout.



MAHLE-0403700



Manufactured by

Mahle
