• Mahle 0380100 - Piston with rings and pin
1 1

Mahle

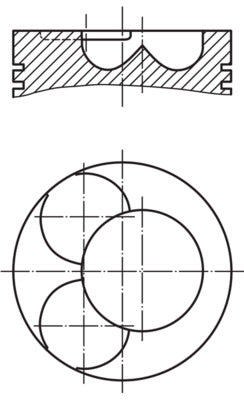

Mahle 0380100 - Piston with rings and pin

Mahle 0380100 - Piston with rings and pin

£149.96 GBP
£151.47 GBP £149.96 GBP
Inc. VAT
Sale Sold out
Pop-up link text

In Stock & ready for next working day delivery

Estimated lead time 2-3 working days. Subject to availability.

Get the best deal with Duco's Price Match Policy

View full details
This is Mahle 0380100 - Piston with rings and pin



Standard Size [STD]: yes
Cylinder Bore [mm]: 130,18 mm
Length [mm]: 175,2 mm
Compression Height [mm]: 114,2 mm
Bolt Length [mm]: 114,0 mm
Bolt Head Diameter [mm]: 55,0 mm
Recess Depth 1 [mm]: 27,95 mm
Recess Diameter [mm]: 79,0 mm
Valve Pocket Depth 1 [mm]: 2,5 mm
Machined: with cut-out for oil jet
Surface: Coated
Supplementary Article/Info 2: with piston ring carrier
Supplementary Article/Info 2: without cooling duct
Production Number: 130 L 52
Piston Clearance [mm]: 0,13 mm
Component Number: 1. R 2.38 Mo
Component Number: 2. M3.16 IF Cr
Component Number: 3. DSF 4.74 Cr
Packaging height [cm]: 12,80 cm
Net Weight [g]: 4943 g
Packaging length [cm]: 9,5 cm
Packaging width [cm]: 9,50 cm



VOLVO

Feel free to contact us at support@ducocarparts.co.uk should you wish to double check!



Before sending out your ordered part(s), we perform a compatibility check to guarantee that they will fit your vehicle. This verification can be done by using your registration number (UK) or the last 7 digits of your VIN. Kindly provide your car information before proceeding to checkout.



MAHLE-0380100



Manufactured by

Mahle
