Mahle

Mahle 037PI00107000 - Piston with rings and pin

£356.79 GBP

~~£360.39 GBP~~ £356.79 GBP

Inc. VAT

Sale Sold out

Product variants

Quantity

In Stock & ready for next working day delivery

Estimated lead time 2-3 working days. Subject to availability.

Get the best deal with Duco's Price Match Policy

View full details

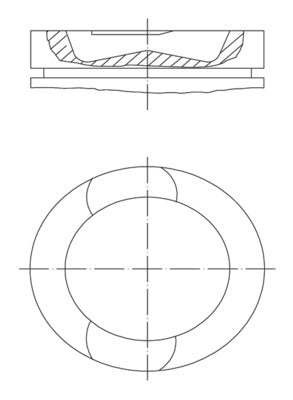

This is Mahle 037PI00107000 - Piston with rings and pin

Cylinder Bore [mm]:	123,01 mm
Length [mm]:	114,4 mm
Compression Height [mm]:	78,4 mm
Bolt Length [mm]:	73 mm
Bolt Head Diameter [mm]:	54 mm
Recess Depth 1 [mm]:	18,08 mm
Recess Diameter [mm]:	83,6 mm
Valve Pocket Depth 1 [mm]:	1 mm
Valve Pocket Depth 2 [mm]:	1 mm
Machined:	with cut-out for oil jet
Production Number:	123 MT 09
Piston Clearance [mm]:	0,070 mm
Component Number:	1. T3.5 IF PVD
Component Number:	2. M 2.5 IFU N
Component Number:	3. DSF 3.00 N
Packaging length [cm]:	13,2 cm
Packaging width [cm]:	13,20 cm
Packaging height [cm]:	19,00 cm
Net Weight [g]:	4294 g

VOLVO

Feel free to contact us at support@ducocarparts.co.uk should you wish to double check!

Before sending out your ordered part(s), we perform a compatibility check to guarantee that they will fit your vehicle. This verification can be done by using your registration number (UK) or the last 7 digits of your VIN. Kindly provide your car information before proceeding to checkout.

MAHLE-037PI00107000

Manufactured by

Mahle
