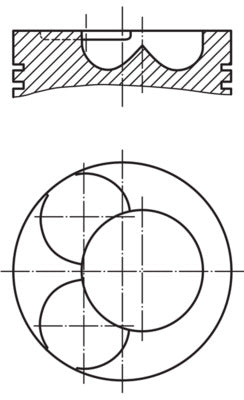

• Mahle 0349101 - Piston with rings and pin
1 1

Mahle

Mahle 0349101 - Piston with rings and pin

Mahle 0349101 - Piston with rings and pin

£87.59 GBP
£88.47 GBP £87.59 GBP
Inc. VAT
Sale Sold out
Pop-up link text

In Stock & ready for next working day delivery

Estimated lead time 2-3 working days. Subject to availability.

Get the best deal with Duco's Price Match Policy

View full details
This is Mahle 0349101 - Piston with rings and pin



Fitting Position: to cylinder 3
Fitting Position: to cylinder 4
Fitting Position: to cylinder 5
Fitting Position: for cylinder 3
Fitting Position: for cylinder 4
Fitting Position: for cylinder 5
Cylinder Bore [mm]: 81,26 mm
Length [mm]: 69,8 mm
Compression Height [mm]: 45,75 mm
Bolt Length [mm]: 68,0 mm
Bolt Head Diameter [mm]: 26,0 mm
Recess Depth 1 [mm]: 17,2 mm
Recess Diameter [mm]: 39,6 mm
Valve Pocket Depth 1 [mm]: 1,35 mm
Machined: with cut-out for oil jet
Surface: Coated
Supplementary Article/Info 2: with piston ring carrier
Supplementary Article/Info 2: without cooling duct
Top Land Height [mm]: 9 mm
Production Number: 81 L 33
Piston Clearance [mm]: 0,05 mm
Component Number: 1. R 2.5 IW Mo
Component Number: 2. M 2.0 IFU
Component Number: 3. DSF 3.0 Cr
Packaging height [cm]: 12,80 cm
Net Weight [g]: 827 g
Packaging length [cm]: 9,5 cm
Packaging width [cm]: 9,50 cm



ŠKODA-VW

Feel free to contact us at support@ducocarparts.co.uk should you wish to double check!



Before sending out your ordered part(s), we perform a compatibility check to guarantee that they will fit your vehicle. This verification can be done by using your registration number (UK) or the last 7 digits of your VIN. Kindly provide your car information before proceeding to checkout.



MAHLE-0349101



Manufactured by

Mahle
