• Mahle 0297912 - Piston with rings and pin
1 1

Mahle

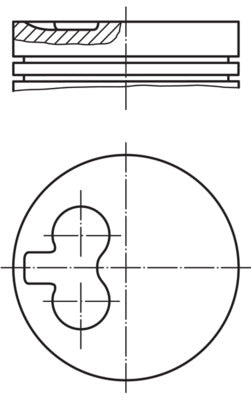

Mahle 0297912 - Piston with rings and pin

Mahle 0297912 - Piston with rings and pin

£84.64 GBP
£85.49 GBP £84.64 GBP
Inc. VAT
Sale Sold out
Pop-up link text

In Stock & ready for next working day delivery

Estimated lead time 2-3 working days. Subject to availability.

Get the best deal with Duco's Price Match Policy

View full details
This is Mahle 0297912 - Piston with rings and pin



Cylinder Bore [mm]: 77,01 mm
Length [mm]: 71,7 mm
Compression Height [mm]: 41,7 mm
Bolt Length [mm]: 64,0 mm
Bolt Head Diameter [mm]: 24,0 mm
Recess Depth 1 [mm]: 1,6 mm
Machined: with cut-out for oil jet
Surface: Hard Anodized
Supplementary Article/Info 2: with piston ring carrier
Supplementary Article/Info 2: without cooling duct
Top Land Height [mm]: 12,5 mm
Production Number: 76 V 54
Piston Clearance [mm]: 0,03 mm
Component Number: 1. R 1.75 Cr
Component Number: 2.M2.0 IFU Cr P
Component Number: 3. DSF 3.0 Cr
Packaging height [cm]: 12,80 cm
Net Weight [g]: 693 g
Packaging length [cm]: 9,5 cm
Packaging width [cm]: 9,50 cm



VW

Feel free to contact us at support@ducocarparts.co.uk should you wish to double check!



Before sending out your ordered part(s), we perform a compatibility check to guarantee that they will fit your vehicle. This verification can be done by using your registration number (UK) or the last 7 digits of your VIN. Kindly provide your car information before proceeding to checkout.



MAHLE-0297912



Manufactured by

Mahle
