• Mahle 028PI00120002 - Piston with rings and pin
1 1

Mahle

Mahle 028PI00120002 - Piston with rings and pin

Mahle 028PI00120002 - Piston with rings and pin

£71.83 GBP
£72.56 GBP £71.83 GBP
Inc. VAT
Sale Sold out
Pop-up link text

In Stock & ready for next working day delivery

Estimated lead time 2-3 working days. Subject to availability.

Get the best deal with Duco's Price Match Policy

View full details

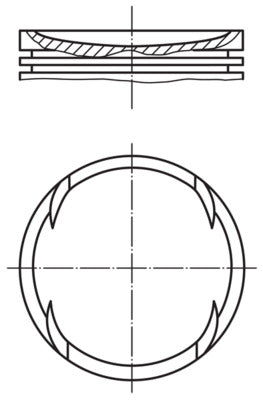

This is Mahle 028PI00120002 - Piston with rings and pin



Cylinder Bore [mm]: 77,01 mm
Length [mm]: 49,3 mm
Compression Height [mm]: 29,27 mm
Bolt Length [mm]: 46 mm
Bolt Head Diameter [mm]: 17 mm
Recess Depth 1 [mm]: 4,11 mm
Recess Diameter [mm]: 62,5 mm
Valve Pocket Depth 1 [mm]: 2,8 mm
Valve Pocket Depth 2 [mm]: 1,25 mm
Surface: Hard Anodized
Top Land Height [mm]: 5 mm
Production Number: 76 L 79
Piston Clearance [mm]: 0,055 mm
Component Number: 1. R 1.2 N
Component Number: 2. M 1.5
Component Number: 3. 3S 2.5 Cr
Packaging height [cm]: 12,80 cm
Net Weight [g]: 216 g
Packaging length [cm]: 9,5 cm
Packaging width [cm]: 9,50 cm



ŠKODA-VW

Feel free to contact us at support@ducocarparts.co.uk should you wish to double check!



Before sending out your ordered part(s), we perform a compatibility check to guarantee that they will fit your vehicle. This verification can be done by using your registration number (UK) or the last 7 digits of your VIN. Kindly provide your car information before proceeding to checkout.



MAHLE-028PI00120002



Manufactured by

Mahle
