• Mahle 013PI00140002 - Piston with rings and pin
1 1

Mahle

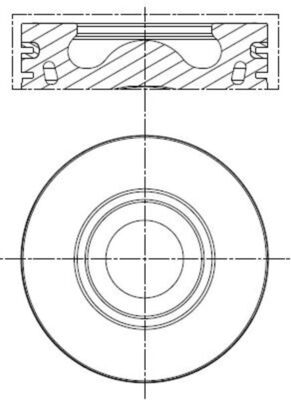

Mahle 013PI00140002 - Piston with rings and pin

Mahle 013PI00140002 - Piston with rings and pin

£78.58 GBP
£79.37 GBP £78.58 GBP
Inc. VAT
Sale Sold out
Pop-up link text

In Stock & ready for next working day delivery

Estimated lead time 2-3 working days. Subject to availability.

Get the best deal with Duco's Price Match Policy

View full details
This is Mahle 013PI00140002 - Piston with rings and pin



Cylinder Bore [mm]: 90,42 mm
Length [mm]: 75,2 mm
Compression Height [mm]: 48,20 mm
Bolt Length [mm]: 74 mm
Bolt Head Diameter [mm]: 32 mm
Recess Depth 1 [mm]: 18,0 mm
Recess Diameter [mm]: 51,5 mm
Machined: with cut-out for oil jet
Surface: Coated
Supplementary Article/Info 2: with piston ring carrier
Supplementary Article/Info 2: with cooling duct
Top Land Height [mm]: 9,1 mm
Connecting Rod Design: Trapezoidal Connecting Rod
Production Number: 89 L 129
Component Number: 1. R 2 CrK
Component Number: 2. NM 2 P
Component Number: 3. DSF 2 N



Ford Ranger Transit 3,2TDCi SAFA* SAFB* 2007+

Feel free to contact us at support@ducocarparts.co.uk should you wish to double check!



Before sending out your ordered part(s), we perform a compatibility check to guarantee that they will fit your vehicle. This verification can be done by using your registration number (UK) or the last 7 digits of your VIN. Kindly provide your car information before proceeding to checkout.
