Mahle

Mahle 013PI00137002 - Piston with rings and pin

£87.25 GBP

~~£88.13 GBP~~ £87.25 GBP

Inc. VAT

Sale Sold out

Product variants

Quantity

In Stock & ready for next working day delivery

Estimated lead time 2-3 working days. Subject to availability.

Get the best deal with Duco's Price Match Policy

View full details

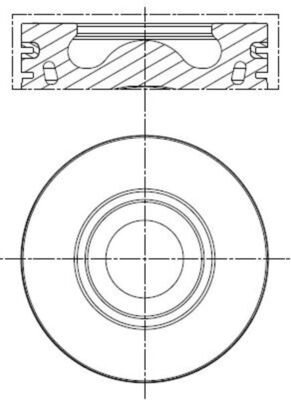

This is Mahle 013PI00137002 - Piston with rings and pin

Cylinder Bore [mm]:	86,50 mm
Length [mm]:	74,8 mm
Compression Height [mm]:	48,42 mm
Bolt Length [mm]:	66,85 mm
Bolt Head Diameter [mm]:	30 mm
Recess Depth 1 [mm]:	16,2 mm
Recess Diameter [mm]:	49 mm
Machined:	with cut-out for oil jet
Surface:	Coated
Supplementary Article/Info 2:	with piston ring carrier
Supplementary Article/Info 2:	with cooling duct
Top Land Height [mm]:	8,6 mm
Production Number:	86 L 164
Piston Clearance [mm]:	0,055 mm
Component Number:	1. R 2 IF CrK
Component Number:	2. NM 2 P
Component Number:	3. DSF 2 N

FORD

Feel free to contact us at support@ducocarparts.co.uk should you wish to double check!

Before sending out your ordered part(s), we perform a compatibility check to guarantee that they will fit your vehicle. This verification can be done by using your registration number (UK) or the last 7 digits of your VIN. Kindly provide your car information before proceeding to checkout.

MAHLE-013PI00137002

Manufactured by

Mahle
