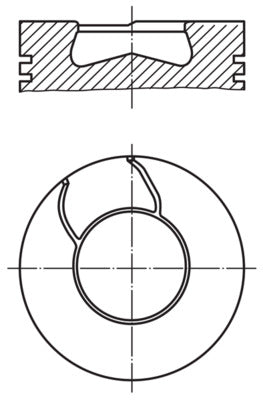

Mahle 0093500 - Piston with rings and pin

Mahle 0093500 - Piston with rings and pin

£283.80 GBP
£286.67 GBP £283.80 GBP
Inc. VAT
Sale Sold out
Pop-up link text

In Stock & ready for next working day delivery

Estimated lead time 2-3 working days. Subject to availability.

Get the best deal with Duco's Price Match Policy

View full details
This is Mahle 0093500 - Piston with rings and pin



Cylinder Bore [mm]: 120,0 mm
Length [mm]: 134,7 mm
Compression Height [mm]: 84,7 mm
Bolt Length [mm]: 96,0 mm
Bolt Head Diameter [mm]: 48,0 mm
Recess Depth 1 [mm]: 27,4 mm
Recess Diameter [mm]: 60,0 mm
Valve Pocket Depth 1 [mm]: 3,18 mm
Machined: with cut-out for oil jet
Surface: Coated
Supplementary Article/Info 2: with piston ring carrier
Supplementary Article/Info 2: with cooling duct
Production Number: 120 L 170
Piston Clearance [mm]: 0,13 mm
Component Number: 1. T 3.5 Cr P
Component Number: 2. M3.0 IF Cr P
Component Number: 3. DSF5.0 Cr P
Packaging length [cm]: 13,2 cm
Packaging width [cm]: 13,20 cm
Packaging height [cm]: 19,00 cm
Net Weight [g]: 3423 g



IVECO

Feel free to contact us at support@ducocarparts.co.uk should you wish to double check!



Before sending out your ordered part(s), we perform a compatibility check to guarantee that they will fit your vehicle. This verification can be done by using your registration number (UK) or the last 7 digits of your VIN. Kindly provide your car information before proceeding to checkout.



MAHLE-0093500



Manufactured by

Mahle
