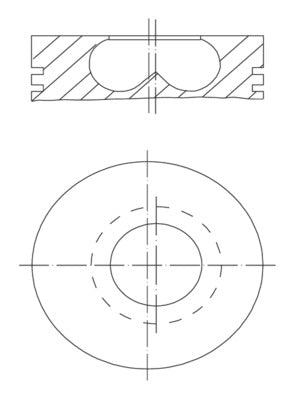

This is Mahle 0070401 - Piston with rings and pin



Cylinder Bore [mm]: 93,4 mm
Length [mm]: 96,8 mm
Compression Height [mm]: 58,75 mm
Bolt Length [mm]: 75,0 mm
Bolt Head Diameter [mm]: 32,0 mm
Recess Depth 1 [mm]: 16,9 mm
Recess Diameter [mm]: 40,0 mm
Machined: with cut-out for oil jet
Surface: Coated
Supplementary Article/Info 2: with piston ring carrier
Supplementary Article/Info 2: without cooling duct
Top Land Height [mm]: 3,5 mm
Production Number: 93 L 79
Piston Clearance [mm]: 0,08 mm
Component Number: 1.T3.0 15° Cr P
Component Number: 2. M2.0 IWU Mo
Component Number: 3. DSF3.0 Cr P
Packaging length [cm]: 11,6 cm
Packaging width [cm]: 11,60 cm
Net Weight [g]: 1200 g
Packaging height [cm]: 14,30 cm



FIAT
