• Mahle 0038600 - Piston with rings and pin
1 1

Mahle

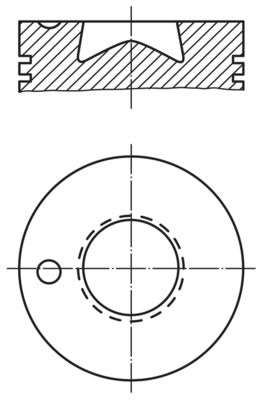

Mahle 0038600 - Piston with rings and pin

Mahle 0038600 - Piston with rings and pin

£240.07 GBP
£242.49 GBP £240.07 GBP
Inc. VAT
Sale Sold out
Pop-up link text

In Stock & ready for next working day delivery

Estimated lead time 2-3 working days. Subject to availability.

Get the best deal with Duco's Price Match Policy

View full details
This is Mahle 0038600 - Piston with rings and pin



Standard Size [STD]: yes
Cylinder Bore [mm]: 85,0 mm
Length [mm]: 140,0 mm
Compression Height [mm]: 89,95 mm
Bolt Length [mm]: 105,0 mm
Bolt Head Diameter [mm]: 46,0 mm
Recess Depth 1 [mm]: 24,0 mm
Recess Diameter [mm]: 77,0 mm
Machined: with cut-out for oil jet
Surface: Hard Anodized
Supplementary Article/Info 2: with piston ring carrier
Top Land Height [mm]: 23,2 mm
Connecting Rod Design: Trapezoidal Connecting Rod
Production Number: 128 L 77
Piston Clearance [mm]: 0,02 mm
Component Number: 1. 3 3.7 CP
Component Number: 1. T 3.0 Mo
Component Number: 1. T3.0 4.9 Mo
Component Number: 2. 3 3.6 P
Component Number: 2. M3.0 IWU Cr
Component Number: 2.M3.0 5.5 IWU
Component Number: 3. 3 3.6 P
Component Number: 3. DSF 4.0 Cr
Component Number: 3.DSF4.0 4.68 C
Component Number: 4. 4 3.6 W
Component Number: 5. 4 3.6 W
Packaging length [cm]: 15,0 cm
Packaging width [cm]: 15,00 cm
Packaging height [cm]: 21,00 cm
Net Weight [g]: 3740 g



MERCEDES

Feel free to contact us at support@ducocarparts.co.uk should you wish to double check!



Before sending out your ordered part(s), we perform a compatibility check to guarantee that they will fit your vehicle. This verification can be done by using your registration number (UK) or the last 7 digits of your VIN. Kindly provide your car information before proceeding to checkout.



MAHLE-0038600



Manufactured by

Mahle
