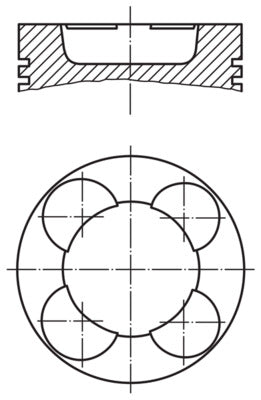

Mahle 0036513 - Piston with rings and pin

Mahle 0036513 - Piston with rings and pin

£142.06 GBP
£143.49 GBP £142.06 GBP
Inc. VAT
Sale Sold out
Pop-up link text

In Stock & ready for next working day delivery

Estimated lead time 2-3 working days. Subject to availability.

Get the best deal with Duco's Price Match Policy

View full details
This is Mahle 0036513 - Piston with rings and pin



Cylinder Bore [mm]: 129,5 mm
Length [mm]: 161,1 mm
Compression Height [mm]: 90,06 mm
Bolt Length [mm]: 108,0 mm
Bolt Head Diameter [mm]: 48,0 mm
Recess Depth 1 [mm]: 28,3 mm
Recess Diameter [mm]: 70,0 mm
Valve Pocket Depth 1 [mm]: 2,0 mm
Valve Pocket Depth 2 [mm]: 2,2 mm
Surface: Coated
Supplementary Article/Info 2: with piston ring carrier
Supplementary Article/Info 2: without cooling duct
Top Land Height [mm]: 23,06 mm
Production Number: 128 L 14
Piston Clearance [mm]: 0,12 mm
Component Number: 1. T 3.5 Mo
Component Number: 2. M 3.5 IF Mo
Component Number: 3. N 3.5 Mo
Component Number: 4. DSF 6.5 Cr
Packaging length [cm]: 14,6 cm
Packaging width [cm]: 14,60 cm
Packaging height [cm]: 29,00 cm
Net Weight [g]: 6727 g



MERCEDES

Feel free to contact us at support@ducocarparts.co.uk should you wish to double check!



Before sending out your ordered part(s), we perform a compatibility check to guarantee that they will fit your vehicle. This verification can be done by using your registration number (UK) or the last 7 digits of your VIN. Kindly provide your car information before proceeding to checkout.



MAHLE-0036513



Manufactured by

Mahle
