Mahle

Mahle 001PI00189001 - Piston with rings and pin

£147.93 GBP

~~£149.42 GBP~~ £147.93 GBP

Inc. VAT

Sale Sold out

Product variants

Quantity

In Stock & ready for next working day delivery

Estimated lead time 2-3 working days. Subject to availability.

Get the best deal with Duco's Price Match Policy

View full details

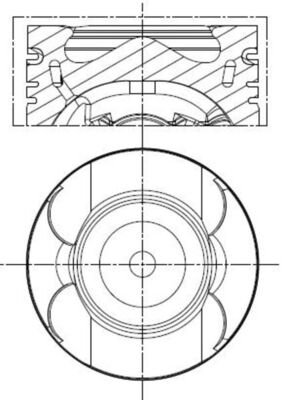

This is Mahle 001PI00189001 - Piston with rings and pin

Cylinder Bore [mm]:	83,25 mm
Length [mm]:	75,5 mm
Compression Height [mm]:	48,5 mm
Bolt Length [mm]:	66 mm
Bolt Head Diameter [mm]:	30 mm
Recess Depth 1 [mm]:	13,22 mm
Recess Diameter [mm]:	49,4 mm
Valve Pocket Depth 1 [mm]:	0,9 mm
Valve Pocket Depth 2 [mm]:	1,4 mm
Machined:	with cut-out for oil jet
Surface:	Coated
Supplementary Article/Info 2:	with piston ring carrier
Supplementary Article/Info 2:	with cooling duct
Top Land Height [mm]:	10 mm
Production Number:	83 L 178
Piston Clearance [mm]:	0,055 mm
Component Number:	1. R2.00 IF CrK
Component Number:	2. M1.75 IFU P
Component Number:	3. DSF 2.00 Cr

MERCEDES

Feel free to contact us at support@ducocarparts.co.uk should you wish to double check!

Before sending out your ordered part(s), we perform a compatibility check to guarantee that they will fit your vehicle. This verification can be done by using your registration number (UK) or the last 7 digits of your VIN. Kindly provide your car information before proceeding to checkout.

MAHLE-001PI00189001

Manufactured by

Mahle
