• Mahle 001PI00108000 - Piston with rings and pin
1 1

Mahle

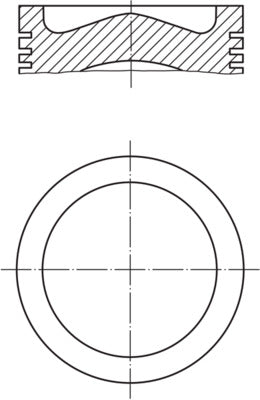

Mahle 001PI00108000 - Piston with rings and pin

Mahle 001PI00108000 - Piston with rings and pin

£340.95 GBP
£344.39 GBP £340.95 GBP
Inc. VAT
Sale Sold out
Pop-up link text

In Stock & ready for next working day delivery

Estimated lead time 2-3 working days. Subject to availability.

Get the best deal with Duco's Price Match Policy

View full details
This is Mahle 001PI00108000 - Piston with rings and pin



Cylinder Bore [mm]: 128,0 mm
Length [mm]: 126,6 mm
Compression Height [mm]: 79,55 mm
Bolt Length [mm]: 103 mm
Bolt Head Diameter [mm]: 52 mm
Recess Depth 1 [mm]: 17,7 mm
Recess Diameter [mm]: 93,17 mm
Machined: with cut-out for oil jet
Supplementary Article/Info 2: with piston ring carrier
Supplementary Article/Info 2: with cooling duct
Top Land Height [mm]: 15 mm
Production Number: 128 L 120
Piston Clearance [mm]: 0,13 mm
Component Number: 1. T3.0 IF PVD
Component Number: 2. M3.0 IWU Cr
Component Number: 3. DSF 4.0 N
Packaging length [cm]: 15,0 cm
Packaging width [cm]: 15,00 cm
Packaging height [cm]: 21,00 cm
Net Weight [g]: 3830 g



MERCEDES

Feel free to contact us at support@ducocarparts.co.uk should you wish to double check!



Before sending out your ordered part(s), we perform a compatibility check to guarantee that they will fit your vehicle. This verification can be done by using your registration number (UK) or the last 7 digits of your VIN. Kindly provide your car information before proceeding to checkout.



MAHLE-001PI00108000



Manufactured by

Mahle
