Products in Insulated Combination Pliers

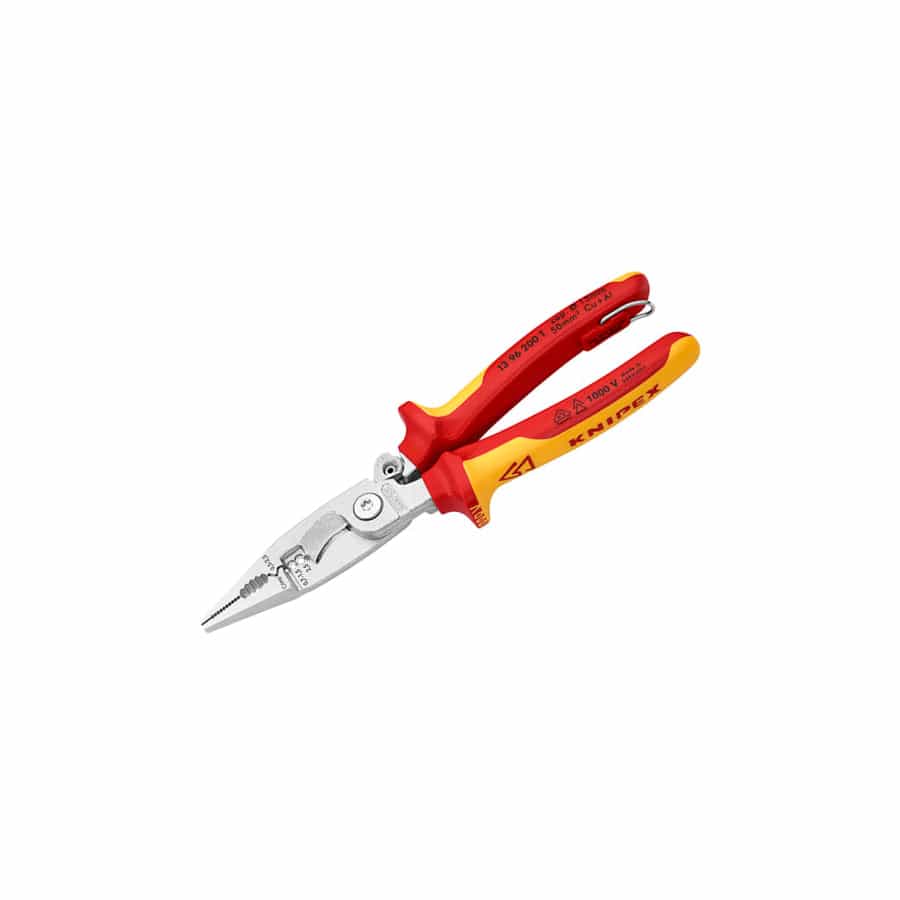

These Knipex Installation Pliers combine 6 functions into one pair of pliers; grip flat and round material, bend, deburr, cut cable, strip and crimp wire ferrules. With slim dimensions for easy access, and a bolted joint for precise, zero backlash operation.

The pliers are fitted with multi-component grips, are VDE tested up to 10,000V, are safe for work up to 1,000V, and conform to DIN EN / IEC 60900. The Knipex Pliers also have an integrated, insulated tether attachment point for a tool tether.

The jaws have: smooth surfaces near the tips grip single cores without damaging them, serrated gripping surfaces, and pipe grip for gripping flat or round material. The pliers have a clear-cut outside edge on the gripping surfaces for working on flush-mounted junction boxes, and deburring feed-through holes.

Specification:

Overall Length: 200mm. Cutting Capacity: Copper Cable, Multiple-stranded: Ø 15mm / 50mm² (flat). Stripping Capacity for Cross-sections: 0.75-1.5mm², 2.5mm². Capacity in Square Millimetres: 0.5-2.5mm². AWG: 1?/ 0.

Specifications

Feel free to contact us at support@ducocarparts.co.uk should you wish to double check!

Before sending out your ordered part(s), we perform a compatibility check to guarantee that they will fit your vehicle. This verification can be done by using your registration number (UK) or the last 7 digits of your VIN. Kindly provide your car information before proceeding to checkout.

KPX-KPX1396200T

Manufactured by

Knipex (KPX)

EAN

4003773081777
