Description

NOTE: This shifter does not work on the 02 and 03 3.0l V6 A4 with the 01E manual transmission. This is for the 04 and up 1.8t, 2.0t , 2.0t TDI and 3.0l V6 with the 02X and 01X manual transmission. This shifter works on ALL C6 A6s and B7 A4s with 01X or 02X transmission with no exception, the exception is only for B6 A4s since this does NOT work on the 01A 5-speed. See the 5-speed product page if your B6 A4 is equipped with a 5-speed.

Please Note:

• Instructions are not included with the package, just use the video links below and watch prior to installing.
• Shifters come with 3 reduction settings (B6-B7 A4 exclusive). They ship already in the largest amount of reduction setting - bottom most hole).

Features

Throw and Height: (3 throw options now included standard) UPDATED from previous models!

• Knob height is now 1/2" lower than stock STANDARD with the following throw options adjustable by the installer.
• 1. 15% reduction - Bolt in the upper most hole (closest to the bearing) and the bottom welded base with both holes on the upper side.
• 2. 24% reduction - Bolt in the middle most hole and the bottom welded base with both holes on the lower side.
• 3. 32% reduction - Bolt in the lower most hole and the bottom welded base with both holes on the lower side.

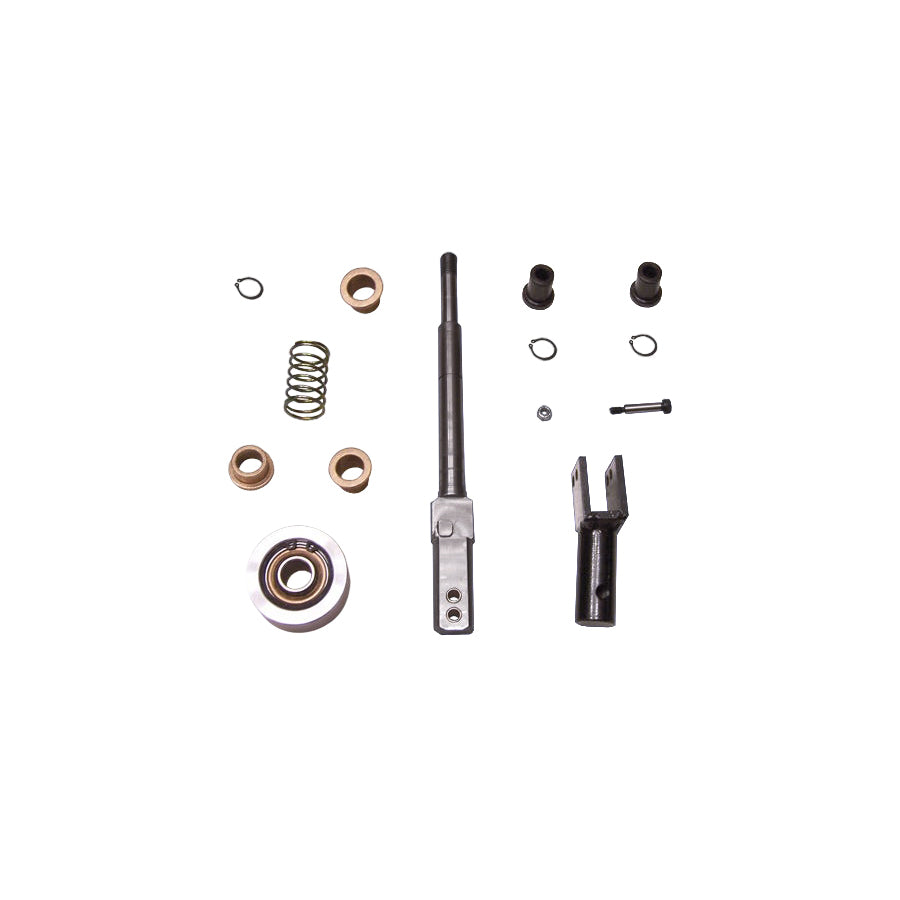

In the box

• New JHM Steel shaft
• JHM solid pivot assembly
• Tig Welded Steel lower link
• Delrin Bushings
• New pushdown reverse springs (stock, medium and stiff)
• all other hardware. Retains stock shifter knob.

Videos

Comparison

Power Shifting Demonstration

Installation

Compatibility

• Audi A4 B6 (2002-2005)

• Audi A4 B7 (2005.5-2009)

• Audi A6 C6 (2005.5-2011)

Manufactured by

JH Motorsports

Part Number

JHM-STS-B6B7A46
