• Integrated Engineering IE Audi Volkswagen 2.0T FSI K04 Performance ECU Remote Tune (MK6 Golf R & 8J TTS)
1 1

Integrated Engineering

Integrated Engineering IE Audi Volkswagen 2.0T FSI K04 Performance ECU Remote Tune (MK6 Golf R & 8J TTS)

Integrated Engineering IE Audi Volkswagen 2.0T FSI K04 Performance ECU Remote Tune (MK6 Golf R & 8J TTS)

£390.06 GBP
£437.78 GBP £390.06 GBP
Inc. VAT
Sale Sold out
Stages
Pop-up link text

In Stock & ready for next working day delivery

Estimated lead time 2-3 working days. Subject to availability.

Get the best deal with Duco's Price Match Policy

View full details

IE's motorsport-inspired software completely retunes the ECU calibration on your 2.0T FSI (EA113) factory K04 turbo engine while retaining factory comfort and reliability.  Multiple tunes are available to match your stock or installed aftermarket hardware.

IE ECU Stages for your MK6 R or 8J TTS 2.0T K04 engine is available for Stage 1 stock engines or with modified hardware for Stage 2 and above. Read below to determine the best stage for your build!

You will also need the Integrated Engineering IE POWERLink Cable to flash your car.



  • Maximize horsepower & torque gains
  • Easily and quickly tune your car at home
  • Retain factory reliability
  • No-lift-shift & launch control (pro features)
  • Installs via IE POWERlink Tool
  • Upgrade tunes at any time with no fees
  • Easy octane switching
  • Simple data logging
  • Return to stock anytime
  • Improved throttle response
  • Increased rev limiter
  • Remove top speed limiter



What does the 2.0TFSI K04 ECU Tune do?

Using industry-leading tuning technology and decades of race engine tuning experience, IE engineers completely reverse engineer the factory mapping and customize it to maximize performance for the enthusiast driver for the street and track. Your new software tune is easily uploaded to your factory installed ECU (engine control module) without touching a wrench in your own driveway. Check it out!



Stage 1- Up to 321HP and 345BTQ on stock hardware

The IE Stage 1 Golf R / TTS tune delivers an aggressive power upgrade without having to install any hardware modifications. Perfect for customers looking for a big jump in power without adding any additional hardware. In a matter of minutes, the vehicle will be much more enjoyable to drive with a massive boost in performance. Includes octane switching between 91 and 93 octanes.

Stage 1 recommended hardware
-IE Cold Air Intake
-IE Intercooler



Stage 2 - Up to 381HP and 429BTQ with matching hardware upgrades

For customers looking to maximize the performance of the stock engine and turbo setups with bolt-on hardware, IE Stage 2 software fine-tunes the ECU calibration to match installed aftermarket hardware.  Stage 2 results deliver massive power gains across the powerband, fully realizing the engine and stock turbocharger potential. Includes 91, 93, and 100 octane switching.

Stage 2 required & recommended hardware
-Performance Downpipe (required)
-IE High Pressure Fuel Pump Upgrade (required)
-IE DSG Transmission tune (required for TTS)
-IE Cold Air Intake (recommended)
-IE Intercooler (highly recommended)
-Performance clutch upgrade (highly recommended)



Stage 2 Pro - Neck-breaking launches and lightning fast shifting

IE Stage 2 Pro performance software incorporates the massive power gains seen in the IE Stage 2 performance tune, but further builds on the performance aspects by including the motorsport functions of launch control and no-lift shift. These features are built into the software tune and offer neck-breaking launches and lightning fast shifting with no loss of boost between gears. This provides a large advantage over similarly powered vehicles. Includes 91, 93, and 100 octane switching.

Stage 2 Pro required & recommended hardware
-Performance Downpipe (required)
-IE High Pressure Fuel Pump Upgrade (required)
-Performance clutch upgrade (required for Golf R)
-IE DSG Transmission tune (required for TTS)
-IE Cold Air Intake (recommended)
-IE Intercooler (highly recommended)



    Optional Features

    IE Stage 2 Light
    IE Stage 2 light software is for customers who have installed a downpipe required for Stage 2 but have yet to install an IE High Pressure Fuel Pump (HPFP). Installing a performance downpipe while running a stock or Stage 1 ECU tune can result in over-boost conditions, check engine lights, or "Limp Mode". Stage 2 light will increase power levels taking advantage of the downpipe change while keeping safe fuel operating conditions. This will increase power greatly over Stage 1, but not to our full IE Stage 2 High Torque file. Stage 2 light is included with the purchase of a Stage 2 file, once an upgraded HPFP is added, the user may upgrade to IE Stage 2 at any time at no additional cost.

    Stage 2 required & recommended hardware

    • Performance Downpipe (required)
    • IE DSG Transmission tune (required for TTS)
    • IE Cold Air Intake (recommended)
    • IE Intercooler (highly recommended)
    • Performance clutch upgrade (highly recommended)

    IE Stage 2 Intake Manifold Tune

    IE Stage 2 Intake Manifold Tune for your MK6 Golf R or Audi TTS is designed for customers looking to maximize the performance of the factory engine and turbocharger with an IE 2.0T Performance Intake Manifold (Sold Separately). IE Stage 2 Intake Manifold software fine-tunes the ECU calibration to match the manifold plenum and runner flow characteristics along with special tuning for the removed runner flaps. This file also includes launch control and no-lift shift, offering the same neck-breaking launches and lightning fast shifting with no loss of boost between gears as our Stage 2 Pro Tune. Results with a manifold deliver massive power gains across the powerband, fully realizing the Golf R's stock turbo and engine's potential. Includes 91, 93, and 100 octane switching. Stage 2 IM Pro is an included upgrade with your purchase of a Stage 2 Pro Tune at no extra cost.

    Stage 2 Intake Manifold Pro required & recommended hardware

    • IE Performance 2.0T FSI Intake Manifold (required)
    • Performance Downpipe (required)
    • IE High Pressure Fuel Pump Upgrade (required)
    • Performance clutch upgrade (required for Golf R)
    • IE DSG Transmission tune (required for TTS)
    • IE Cold Air Intake (recommended)
    • IE Intercooler (highly recommended)

    How to install the tune

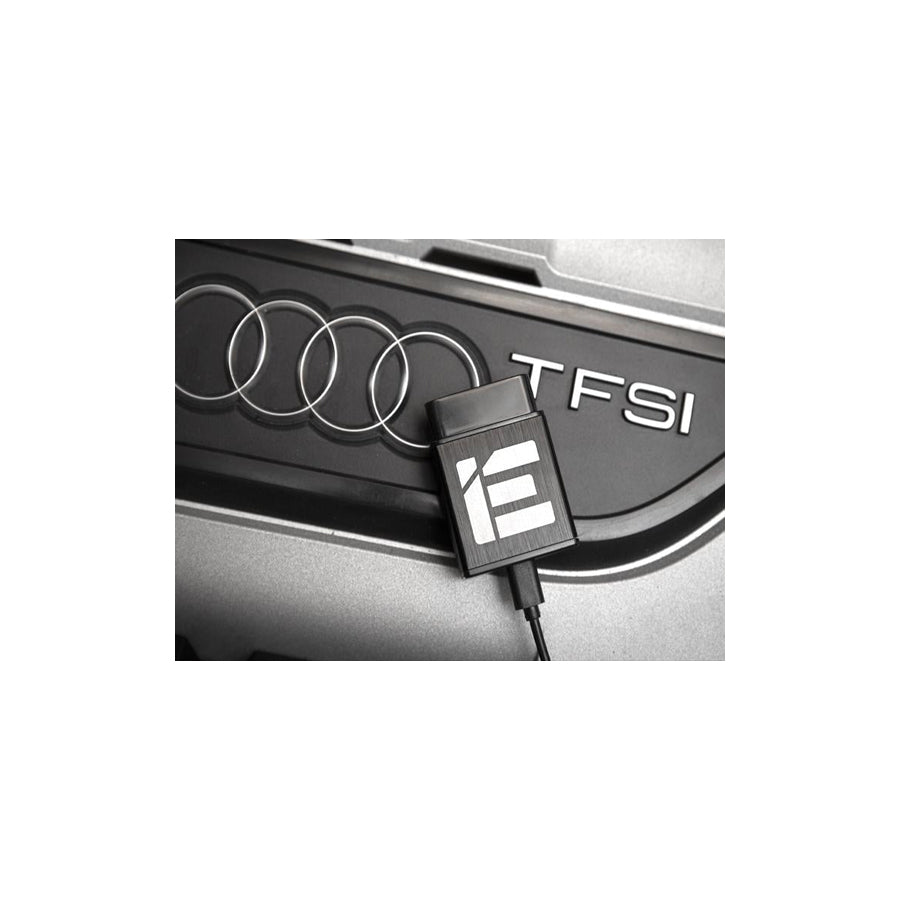

    IE's own in-house developed Integrated Engineering IE POWERLink Cable gives you the control to unlock your engine’s true potential from your own garage or driveway. Enjoy the freedom to quickly reflash your car’s engine control unit (ECU) or transmission control unit (TCU) with IE’s line of performance tunes. The cable simply plugs into your vehicle’s OBD-2 port delivering instant access to choose different IE Tune stages to match installed hardware, take advantage of different fuel octanes, flash to stock, perform engine diagnostics, read/clear codes and gather high-quality operating data via logging.



    System Requirements

    Laptop or tablet with Wifi connection and USB port running Windows 7 or above operating system required. Powered by 32 or 64 bit processor with 1.0GHz or greater and 4GB of Ram.



    • VW - Golf R 2012-2013 (MK6) 2.0T engine
    • AUDI - TTS 2008-2015 (8J) 2.0T engine



    Power Gains

    Stage 1 91 Octane





    Stage 1 93 Octane





    Stage 2 91 Octane (High Torque)







    Stage 2 93 Octane (High Torque)





    Stage 2 100 Octane (High Torque)





    IESOVC21 (Stage 1)

    IESOVC22 (Stage 2)

    IESOVC23 (Stage 2 Pro)


    Manufactured by

    Integrated Engineering (IE)



    Rest of World (ROW) Support

    IE tunes are designed and written on North American (NA) vehicles. Although IE does offer ROW purchases of software files, some ECUs available only in certain countries or markets may not be supported in our current file library. If you have access to read your ECU code, please contact us to verify compatibility before purchase



    Consumer Notice

    BY PURCHASING A MOTORSPORT/RACING PRODUCT ("PRODUCT"), YOU REPRESENT THAT YOU UNDERSTAND AND AGREE THAT: THE PRODUCT IS NOT DESIGNED TO MEET ANY APPLICABLE EMISSIONS STANDARDS, WHETHER IN THE USA OR OTHERWISE, THE PRODUCT IS NOT C.A.R.B. COMPLIANT, AND THAT THE PRODUCT IS NOT FOR SALE OR USE IN CALIFORNIA, USA NOR ANY OTHER JURISDICTION WHERE THE SALE OR USE IS PROHIBITED BY LAW. INTEGRATED ENGINEERING, LLC MAKES NO REPRESENTATIONS, WARRANTIES, OR CLAIMS THAT THIS PRODUCT COMPLIES WITH ANY APPLICABLE EMISSIONS LAWS AND EXPRESSLY DISCLAIMS ANY AND ALL SUCH REPRESENTATIONS, WARRANTIES, AND CLAIMS, WHETHER EXPRESS OR IMPLIED. BY PURCHASING THIS PRODUCT, YOU REPRESENT, WARRANT, AND AGREE THAT IT IS YOUR RESPONSIBILITY TO INFORM YOURSELF OF ANY LAWS OR REGULATIONS THAT MAY APPLY TO YOUR PURCHASE AND/OR USE OF THE PRODUCT.
