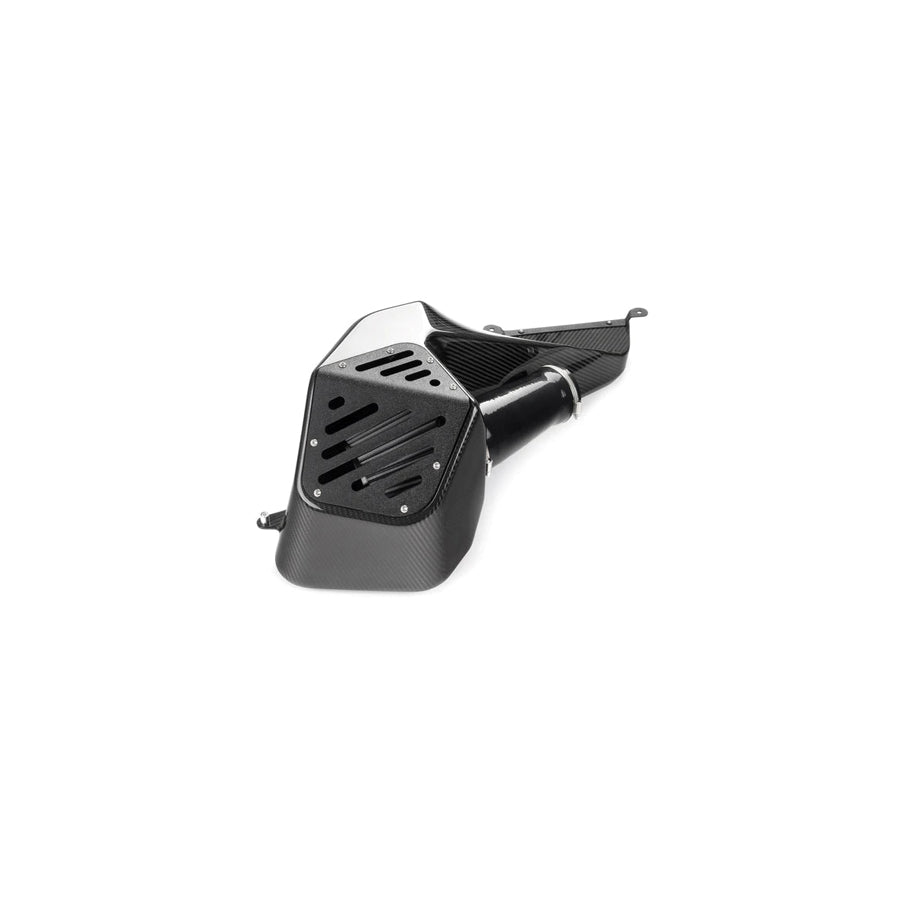

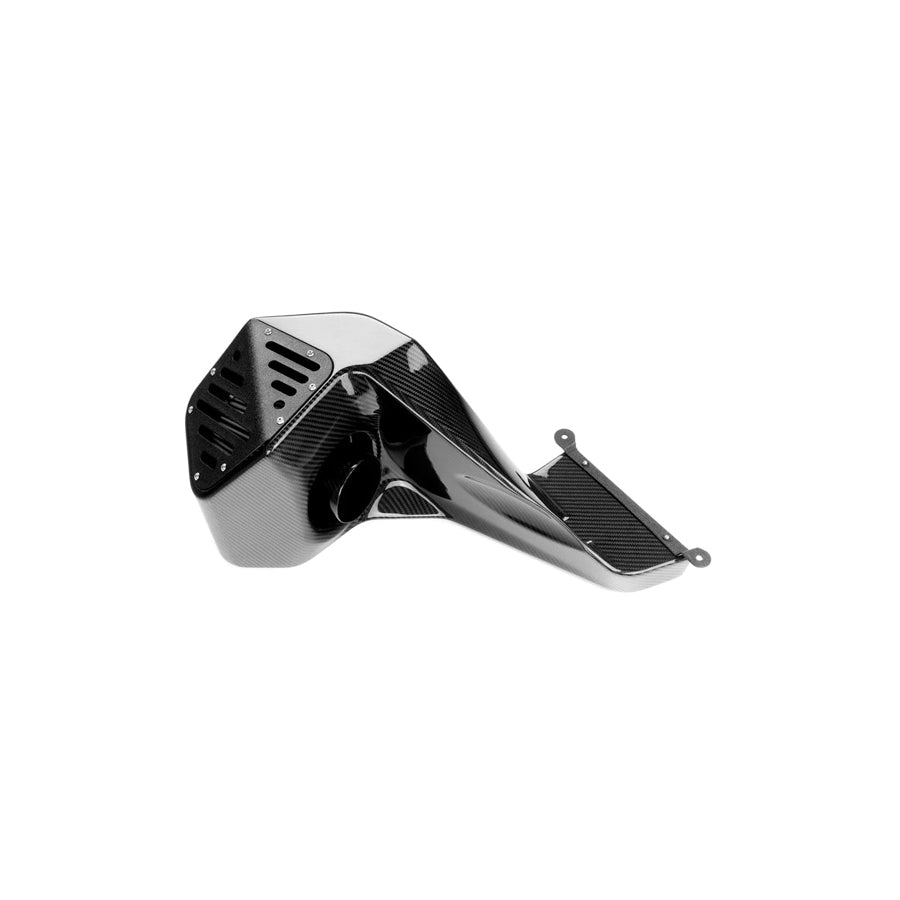

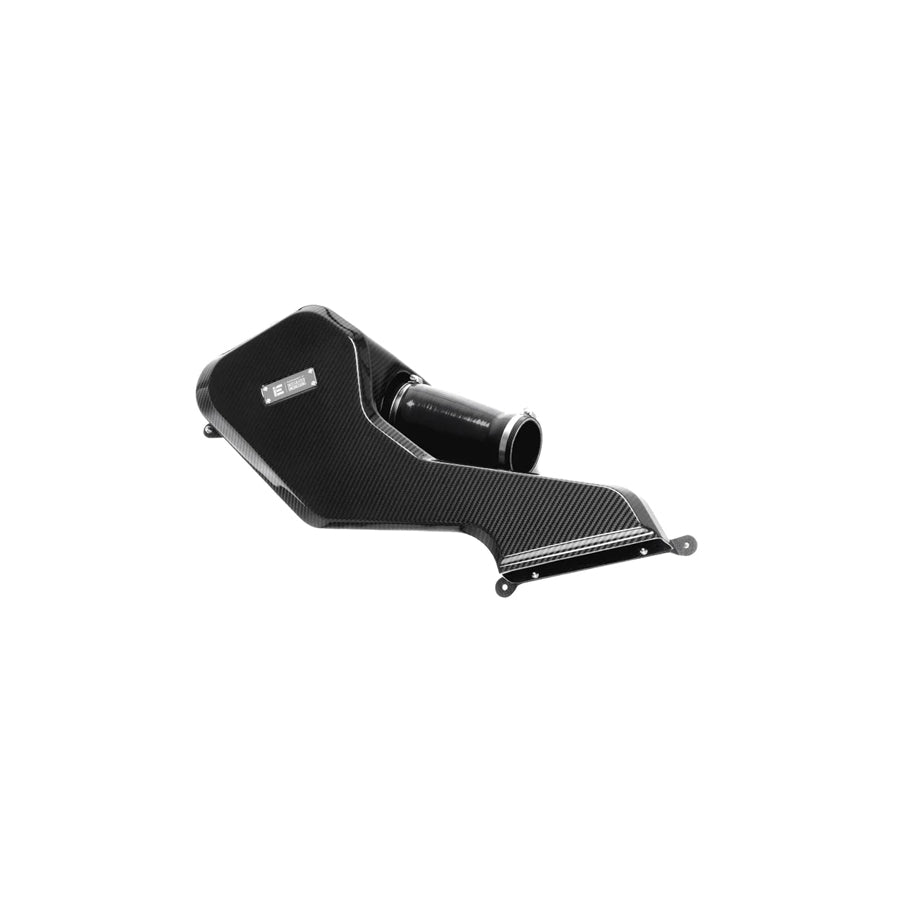

Seamless Design
Our unique 1-piece airbox design offers a seamless and beautiful look without chances of air leaks, finicky installation, rubbing noises, or parts working loose over time, common with multi-peace airbox designs.
Built-in Velocity Stack
The built-in velocity stack smoothly reduces airflow from the massive 5" air filter down to the turbo inlet with excellent laminar properties. This transition creates a very high inertia flow from the huge filter with very low drag or power-robbing turbulence.
Multiple Pressure Zones
The intake takes advantage of multiple air supply avenues to support any power level. The front large air inlet receives outside high-pressure flow from the front of the grille and acts as a ram air design for most of the air supply. Additionally, the filter plate louvers pull extra required air from the low-pressure zone under the intake. These dual zones provide a free air supply across the entire filter and ensure your intake will never be a power limiter for even the most extreme builds.
Unique Sound
Your sporty SUV is equipped with a 6-cylinder turbocharged engine -sound like one!
The factory airbox is designed to mute all engine and turbo sounds. When upgrading to an IE intake system, you will instantly become addicted to the new turbocharger spool, engine throttle, and diverter valve symphony under the hood. Your SQ5 won't only pull harder, it will also sound classy, refined, and powerful.
Optional Turbo Inlet
Upgrading your intake with an IE cast turbo further removes significant airflow restrictions and maintains the largest size possible from the intake to the turbocharger. This combination increases flow from 28% (intake only) up to 57.6% over the stock intake and turbo inlet!
Turbo inlet pipe is an optional upgrade and can be purchased with your intake or added at a later date.
You can purchase the turbo inlet here:
Integrated Engineering IE Audi B9 SQ5 3.0T Turbo Inlet Pipe
Precision Fit
3D scanning tools are leveraged to create a digital duplicate of the vehicle's engine bay, grille, bumper, and hood. These high-resolution scans provide a digital environment that allows our engineers to take advantage of all available space while ensuring a perfect fit.

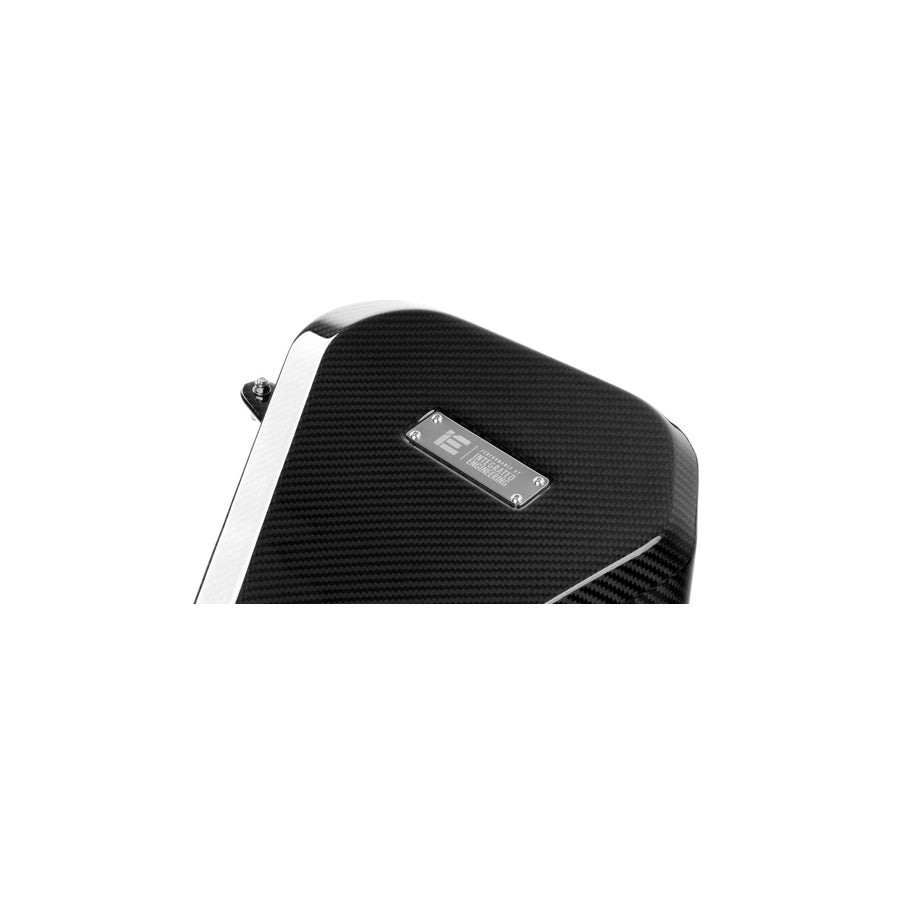

- ONE-PIECE CARBON FIBRE CONSTRUCTION
- UP TO +19HP & 21TQ POWER YOU CAN FEEL
- FLOW OPTIMIZED VELOCITY STACK MOTORSPORT DESIGN
Power Results
Every inch of IE's intake system evolved from countless design revisions, rapid prototyping, flow bench testing, dyno runs, and real-world verification to maximize airflow and performance. The result is an intake system with power gains of up to 19WHP and 21ft-lbs of torque, with even higher gains possible on hybrid turbo setups!
Flow Bench Testing
The proof is in the testing. Back-to-back flow bench results show constant and consistent CFM gains of up to 44.2% CFM over stock! This increase in flow details the intake design's efficiency over the factory parts and capability to provide any required airflow demands from ECU tunes and hybrid turbocharger upgrades.
Flow Report
The following report details the above graph proving the efficiency gain of our performance intake system on the stock turbo.
| -IN. H20 | STOCK INTAKE | IE INTAKE & STOCK INLET | IE INTAKE & IE INLET |
|
-5 |
129 CFM |
165 CFM |
186 CFM |
|
-10 |
198 CFM |
236 CFM |
268 CFM |
|
-15 |
250 CFM |
292 CFM |
333 CFM |
|
-20 |
291 CFM |
345 CFM |
384 CFM |
|
-25 |
330 CFM |
383 CFM |
430 CFM |
|
-30 |
364 CFM |
420 CFM |
474 CFM |
| IE INTAKE & STOCK INLET | IE INTAKE & IE INLET | |
|
MAXIMUM INCREASE: |
+28% @ -5 in. H20 |
+44.2% @ -5 in/H20 |
Hybrid Turbo Flow Report
Upgrading to a hybrid turbocharger demands even more airflow. This flow result represent IE’s intake and inlet upgrades with a hybrid turbo.
| -IN. H20 | STOCK INTAKE | IE INTAKE & IE INLET |
|
-5 |
129 CFM |
200 CFM |
|
-10 |
198 CFM |
312 CFM |
|
-15 |
250 CFM |
386 CFM |
|
-20 |
291 CFM |
447 CFM |
|
-25 |
330 CFM |
504 CFM |
|
-30 |
364 CFM |
553 CFM |
| IE INTAKE & IE INLET | |
|
MAXIMUM INCREASE: |
+57.6% @ -10 in. H20 |
The above gains are a result of various design details:
- The 5" air filter surface area and increased air volume improve turbo efficiency.
- The internal velocity stack provides a low-turbulence transition from the filter to the inlet.
- Carbon airbox high & low-pressure zones channel low-temp airflow quickly to the engine while protecting it from radiant engine heat.
The installation process is quick and straightforward using basic hand tools. The entire airbox system utilizes factory-style mounts that ensure a perfect and hassle-free fit.
Intake install time: 1 hour or less
AUDI SQ5 2018+ (B9) 3.0T Turbocharged
